Part Details for DR73-100-R by Coiltronics
Results Overview of DR73-100-R by Coiltronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DR73-100-R Information
DR73-100-R by Coiltronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR73-100-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58M5185
|
Newark | Inductor, 10Uh, 20%, Inductance:10Μh, Rms Current (Irms):2.08A, Inductor Construction:Shielded, Saturation Current (Isat):2.47A, Product Range:Dr Series, Power Inductor Case:7.6Mm X 7.6Mm X 3.55Mm, Dc Resistance Max:-, Inductance Rohs Compliant: Yes RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 948 |
|
$0.7750 / $0.9650 | Buy Now |
|
DISTI #
27K7342
|
Newark | Inductor, Shielded, 10Uh, 2.47A, Smd, Full Reel, Inductance:10Μh, Rms Current (Irms):2.08A, Inductor Construction:Shielded, Saturation Current (Isat):2.47A, Product Range:Dr Series, Dc Resistance Max:-, Inductance Tolerance:± 20% Rohs Compliant: Yes RoHS: Compliant Min Qty: 1350 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.1900 | Buy Now |
|
DISTI #
25AC8701
|
Newark | Ind, shld Drm, sngl Conduct Rohs Compliant: Yes |Eaton Coiltronics DR73-100-R RoHS: Compliant Min Qty: 1350 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.4590 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10.3 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD | 1035 |
|
$0.3281 / $0.7875 | Buy Now |
US Tariff Estimator: DR73-100-R by Coiltronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DR73-100-R
DR73-100-R CAD Models
-
Part Symbol
-
Footprint
-

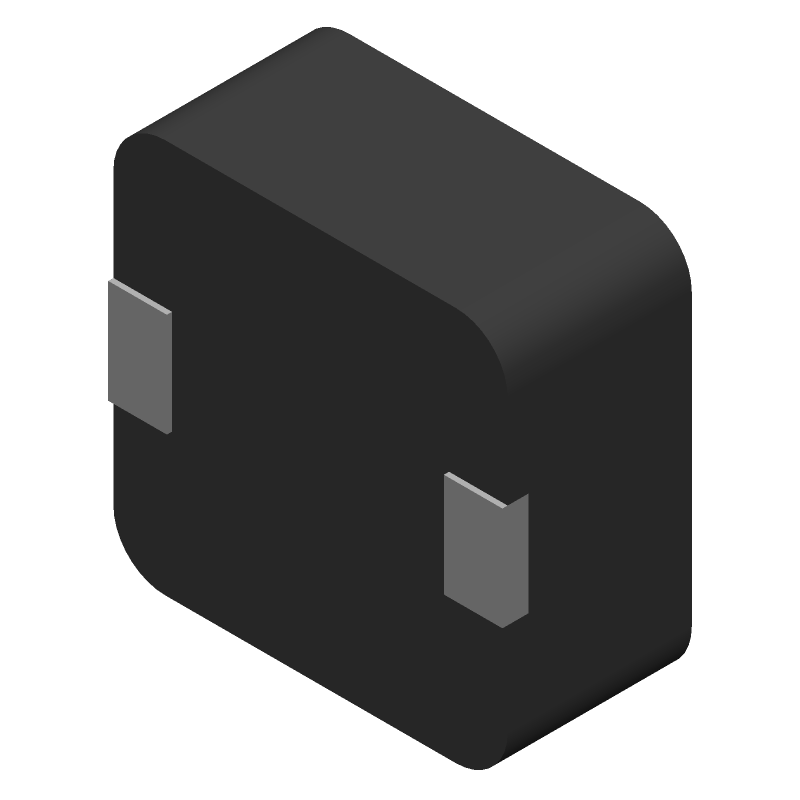

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR73-100-R Part Data Attributes
|
|
DR73-100-R
Coiltronics
Buy Now
Datasheet
|
Compare Parts:
DR73-100-R
Coiltronics
General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 3030
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Package Description | Chip | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.0656 Ω | |
| Inductance-Nom (L) | 10 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.55 Mm | |
| Package Length | 7.6 Mm | |
| Package Style | Smt | |
| Package Width | 7.6 Mm | |
| Packing Method | Tr, 13 Inch | |
| Rated Current-Max | 2.08 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
DR73-100-R Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the DR73-100-R is a rectangular pad with dimensions of 7.3mm x 6.5mm, with a thermal relief pattern to ensure good thermal dissipation.
-
To ensure the DR73-100-R operates within its specified temperature range, ensure good airflow around the component, avoid overheating nearby components, and consider using a heat sink or thermal interface material if necessary.
-
The maximum current rating for the DR73-100-R is 10A, but this can vary depending on the operating frequency and temperature. Always check the datasheet and consult with Coiltronics' application notes for specific guidance.
-
Yes, the DR73-100-R is designed to withstand moderate vibration environments. However, it's essential to ensure the component is properly secured to the PCB and consider using a vibration-dampening material if necessary.
-
To minimize EMI and radiation with the DR73-100-R, use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, and consider using shielding or EMI filters if necessary.
