DR73-4R7-R Information
DR73-4R7-R by Coiltronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR73-4R7-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04AK6113
|
Newark | Ind, Shld Drm 4.7Uh, 3.78A Smt, |Eaton Coiltronics DR73-4R7-R RoHS: Compliant Min Qty: 1350 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.1900 | Buy Now |
|
|
Quest Components | IND,FERRITE,4.7UH,20+% TOL,20-% TOL,3028-CASE | 6 |
|
$0.7050 / $0.8460 | Buy Now |
US Tariff Estimator: DR73-4R7-R by Coiltronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DR73-4R7-R CAD Models
-
Part Symbol
-
Footprint
-

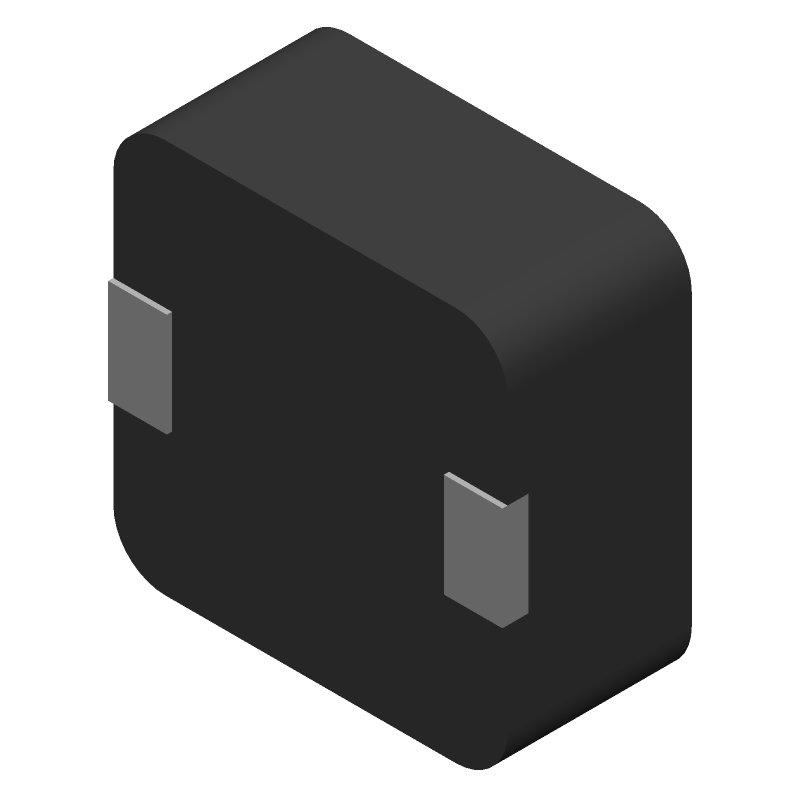

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR73-4R7-R Part Data Attributes
|
|
DR73-4R7-R
Coiltronics
Buy Now
Datasheet
|
Compare Parts:
DR73-4R7-R
Coiltronics
General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 3030
|
| Part Life Cycle Code | Transferred | |
| Package Description | Chip | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.0297 Ω | |
| Inductance-Nom (L) | 4.7 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.55 Mm | |
| Package Length | 7.6 Mm | |
| Package Style | Smt | |
| Package Width | 7.6 Mm | |
| Packing Method | Tr, 13 Inch | |
| Rated Current-Max | 3.09 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
DR73-4R7-R Frequently Asked Questions (FAQ)
-
The recommended land pattern for the DR73-4R7-R is a rectangular pad with a size of 3.8mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape.
-
The DR73-4R7-R is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation.
-
Handle the DR73-4R7-R by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to place the component on the PCB. Avoid bending or flexing the leads during assembly.
-
The ESR of the DR73-4R7-R is approximately 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
-
Yes, the DR73-4R7-R is suitable for switching regulator applications due to its low core loss and high saturation current rating. However, ensure that the inductor is properly sized for the specific application and operating conditions.
