Part Details for DR73-R33-R by Eaton Electronics
Results Overview of DR73-R33-R by Eaton Electronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DR73-R33-R Information
DR73-R33-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| GRM32DR73A153KW01L | Murata Manufacturing Co Ltd | Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.015uF, Surface Mount, 3225M/1210 | |
| GRM55DR73A683KW01L | Murata Manufacturing Co Ltd | Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 5750M/2220 | |
| GR442DR73D101KW02L | Murata Manufacturing Co Ltd | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0001uF, Surface Mount, 4520M/1808 |
Price & Stock for DR73-R33-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52K7546
|
Newark | Inductor, Shielded, 330Nh, 14.4A, Smd, Inductance:330Nh, Rms Current (Irms):6.21A, Inductor Construction:Shielded, Saturation Current (Isat):14.4A, Product Range:Dr Series, Dc Resistance Max:-, Inductance Tolerance:± 20% Rohs Compliant: Yes RoHS: Compliant Min Qty: 1350 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.7025 / $1.8898 | Buy Now |
|
DISTI #
27K7339
|
Newark | Pwr Ind Smd, 330Nh, 6.21A, Shielded, |Eaton Electronics DR73-R33-R RoHS: Compliant Min Qty: 1350 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.1311 / $1.1803 | Buy Now |
|
DISTI #
71935861
|
RS | IND 0.33UH, 14.4A SMT Min Qty: 1350 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4500 | RFQ |
|
DISTI #
DR73-R33-R
|
TME | Inductor: wire, SMD, 330nH, Ioper: 6.21A, R: 7.3mΩ, ±20%, DR Min Qty: 1350 | 0 |
|
$0.3830 | RFQ |
US Tariff Estimator: DR73-R33-R by Eaton Electronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DR73-R33-R CAD Models
-
Part Symbol
-
Footprint
-

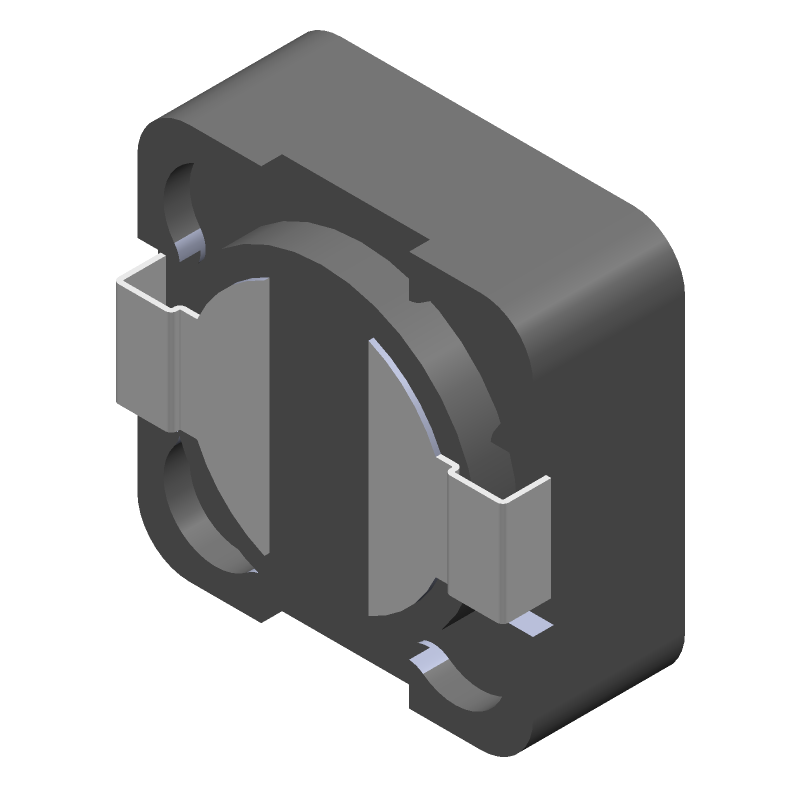

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR73-R33-R Part Data Attributes
|
|
DR73-R33-R
Eaton Electronics
Buy Now
Datasheet
|
Compare Parts:
DR73-R33-R
Eaton Electronics
Ind,Ferrite,330nH,20% +Tol,20% -Tol,3028 Case
|
| Part Life Cycle Code | Transferred | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.0073 Ω | |
| Inductance-Nom (L) | 0.33 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.55 Mm | |
| Package Length | 7.6 Mm | |
| Package Style | Smt | |
| Package Width | 7.6 Mm | |
| Packing Method | Tr, 13 Inch | |
| Rated Current-Max | 6.21 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
DR73-R33-R Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the DR73-R33-R can be found in the Coiltronics application note AN-013, which provides detailed guidelines for PCB layout and design.
-
The DR73-R33-R is rated for operation up to 155°C, but its inductance and resistance may vary with temperature. Coiltronics recommends derating the component's specifications by 20% for every 10°C above 80°C.
-
Yes, the DR73-R33-R is designed to withstand vibrations up to 10G peak acceleration. However, it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress.
-
Yes, you can use multiple DR73-R33-R inductors in parallel to increase current handling. However, it's crucial to ensure that the inductors are properly matched and that the PCB layout is designed to minimize parasitic inductance and resistance.
-
Coiltronics recommends storing the DR73-R33-R in a dry, cool place, away from direct sunlight and moisture. Handling should be done with electrostatic discharge (ESD) precautions, and the component should be kept away from mechanical stress and vibration.
