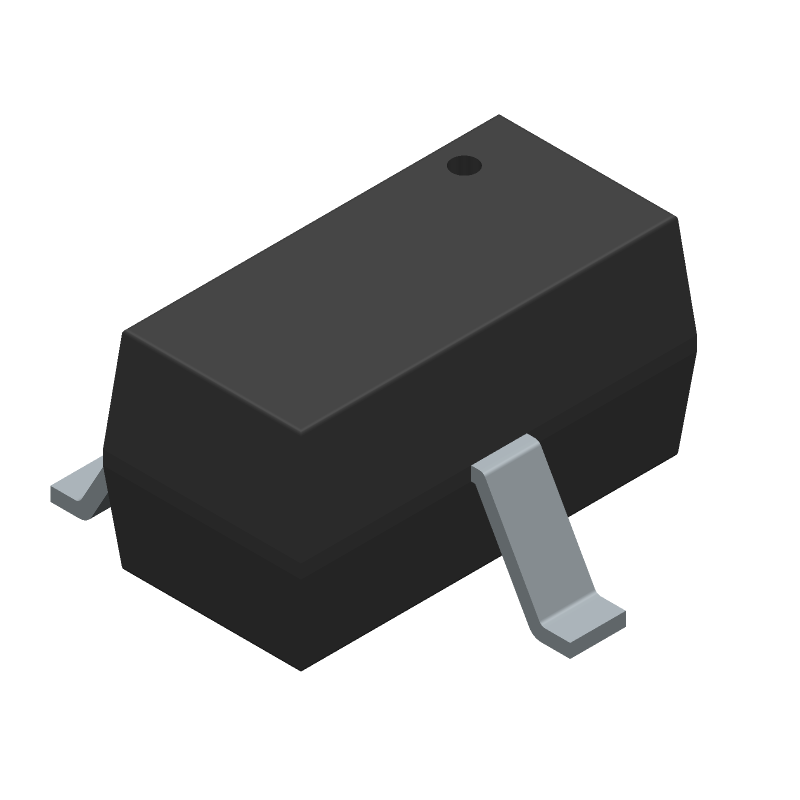

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DTA114EET1G by onsemi
Results Overview of DTA114EET1G by onsemi
- Distributor Offerings: (38 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DTA114EET1G Information
DTA114EET1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DTA114EET1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82Y6600
|
Newark | Brt Trans, Pnp, -50V, Sc-75-3, Digital Transistor Polarity:Single Pnp, Collector Emitter Voltage V(Br)Ceo:-50V, Continuous Collector Current Ic:-100Ma, Base Input Resistor R1:10Kohm, Base-Emitter Resistor R2:10Kohm, Resistor Ratio, Rohs Compliant: Yes |Onsemi DTA114EET1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 36189 |
|
$0.0410 / $0.1560 | Buy Now |
|
DISTI #
81AC7985
|
Newark | Ss Sc75 Br Xstr Pnp 50V Rohs Compliant: Yes |Onsemi DTA114EET1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 12000 |
|
$0.0240 / $0.0360 | Buy Now |
|
DISTI #
87K2044
|
Newark | Brt Transistor, 50V, 10K/10Kohm, Sc75, Full Reel, Transistor Polarity:Single Pnp, Collector Emitter Voltage Max Npn:-, Collector Emitter Voltage Max Pnp:50V, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm Rohs Compliant: Yes |Onsemi DTA114EET1G RoHS: Compliant Min Qty: 36000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.0250 | Buy Now |
|
DISTI #
DTA114EET1GOSCT-ND
|
DigiKey | TRANS PREBIAS PNP 50V 0.1A SC75 Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6274 In Stock |
|
$0.0162 / $0.1600 | Buy Now |
|
DISTI #
DTA114EET1G
|
Avnet Americas | - Tape and Reel (Alt: DTA114EET1G) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 30000231000 Factory Stock |
|
$0.0158 / $0.0172 | Buy Now |
|
DISTI #
863-DTA114EET1G
|
Mouser Electronics | Digital Transistors 100mA 50V BRT PNP RoHS: Compliant | 2545 |
|
$0.0290 / $0.1500 | Buy Now |
|
DISTI #
V72:2272_07297821
|
Arrow Electronics | Trans Digital BJT PNP 50V 0.1A 300mW 3-Pin SOT-416 T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 2305 Container: Cut Strips | Americas - 37905 |
|
$0.0161 / $0.0645 | Buy Now |
|
DISTI #
E02:0323_00078591
|
Arrow Electronics | Trans Digital BJT PNP 50V 0.1A 300mW 3-Pin SOT-416 T/R COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks Date Code: 2528 | Europe - 12000 |
|
$0.0167 / $0.0249 | Buy Now |
|
DISTI #
70465963
|
RS | DTA114EET1G PNP DIGITAL TRANSISTOR 50 V, 3-PIN SC-75 Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1120 | RFQ |
|
|
Onlinecomponents.com | PNP Bipolar Digital Transistor (BRT) COO: Japan RoHS: Compliant | 0 |
|
$0.0145 / $0.0179 | Buy Now |
Part Details for DTA114EET1G
DTA114EET1G CAD Models
DTA114EET1G Part Data Attributes
|
|
DTA114EET1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
DTA114EET1G
onsemi
PNP Bipolar Digital Transistor (BRT), SC-75 (SOT-416) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Additional Feature | Built-In Bias Resistor Ratio Is 1 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | Single With Built-In Resistor | |
| DC Current Gain-Min (hFE) | 35 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Pnp | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
