DTC114YKAT146 Information
DTC114YKAT146 by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DTC114YKAT146
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40P2952
|
Newark | Transistor Digital Sc-59 100Ma Npn, Transistor Polarity:Single Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:10Kohm, No. Of Pins:3 Pin Rohs Compliant: Yes |Rohm DTC114YKAT146 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3558 |
|
$0.0490 / $0.1800 | Buy Now |
|
DISTI #
86AK4869
|
Newark | Rf Trans, Npn, 50V, 0.1A, Sot-346 Rohs Compliant: Yes |Rohm DTC114YKAT146 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0340 / $0.0420 | Buy Now |
|
DISTI #
70521767
|
RS | ROHM, DTC114YKAT146 NPN DIGITAL TRANSISTOR,100 MA 10 KOHMS, RATIO OF 0.2,3-PIN SMT Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1300 / $0.1530 | RFQ |
|
|
Bristol Electronics | Min Qty: 40 | 4606 |
|
$0.0253 / $0.1267 | Buy Now |
|
|
Bristol Electronics | 2185 |
|
RFQ | ||
|
DISTI #
DTC114YKAT146
|
TME | Transistor: NPN, bipolar, BRT, 50V, 0.1A, 200mW, SC59,SOT346 Min Qty: 1 | 2840 |
|
$0.0318 / $0.2100 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 7570 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 1273 |
|
RFQ | |
|
DISTI #
DTC114YKAT146
|
Avnet Asia | (Alt: DTC114YKAT146) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
$0.0149 / $0.0181 | Buy Now |
US Tariff Estimator: DTC114YKAT146 by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DTC114YKAT146
DTC114YKAT146 CAD Models
-

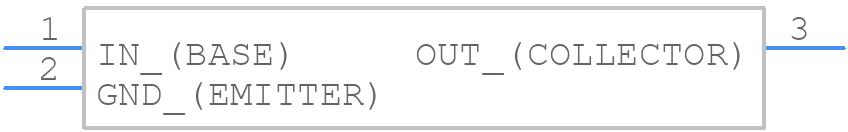

Part Symbol
-
Footprint
-

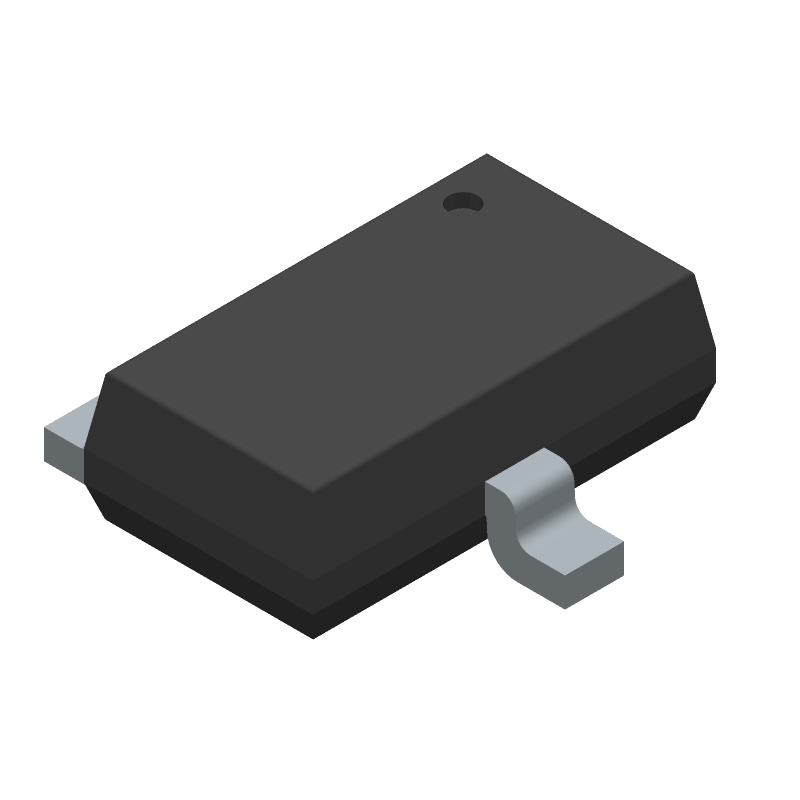

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DTC114YKAT146 Part Data Attributes
|
|
DTC114YKAT146
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
DTC114YKAT146
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SC-59, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SC-59 | |
| Package Description | SC-59, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.75 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | BUILT IN BIAS RESISTOR RATIO IS 4.7 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 68 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 0.2 W | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz | |
| VCEsat-Max | 0.3 V |
