ECS60US24 Information
ECS60US24 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ECS60US24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37T8015
|
Newark | Ac/Dc Open Frame Power Supply, Medical, Fixed, 80 V, 264 V, 60 W, 24 V, 2.5 A Rohs Compliant: Yes |Xp Power ECS60US24 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$58.6600 / $64.0900 | Buy Now |
|
DISTI #
1470-1294-ND
|
DigiKey | AC/DC CONVERTER 24V 60W Min Qty: 1 Lead time: 22 Weeks Container: Box |
750 In Stock |
|
$44.2903 / $52.7300 | Buy Now |
|
DISTI #
209-ECS60US24
|
Mouser Electronics | Power Supplies - Chassis Mount AC/DC, 60W, 3"X2", GREEN POWER RoHS: Compliant | 0 |
|
$47.4500 / $52.7300 | Order Now |
|
DISTI #
70808555
|
RS | POWER SUPPLY AC-DC PANEL MOUNT MEDICAL & IT 60W 24V@2.5A 80-264V INPUT Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$50.3600 / $52.7300 | RFQ |
|
DISTI #
ECS60US24
|
TME | Power supply: switching, open, 60W, 80÷264VAC, OUT: 1, 24VDC, 2.5A Min Qty: 1 | 0 |
|
$43.4300 / $51.5300 | RFQ |
|
DISTI #
ECS60US24
|
Avnet Abacus | ACDC Open Frame Power Supply PSU ITE Medical 1 Output 60 W 80V AC to 264V AC (Alt: ECS60US24) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 29 Weeks, 0 Days | Abacus - 70 |
|
Buy Now | |
|
|
Neutron USA | Power Supply, AC-DC, Panel Mount, Medical &, IT, 60W, 24V@2.5A, 80-264V Input | 50 |
|
$153.0100 | Buy Now |
Part Details for ECS60US24

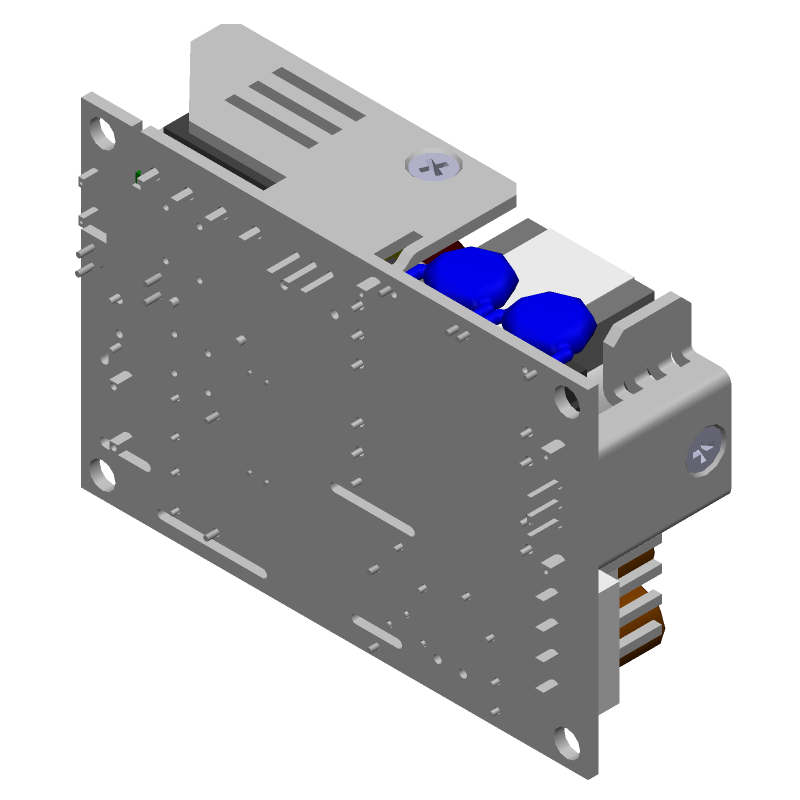

ECS60US24 CAD Models
