FMMT734TA by:
Diodes Incorporated

Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN

Part Details for FMMT734TA by Diodes Incorporated

Results Overview of FMMT734TA by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

FMMT734TA Information

FMMT734TA by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for FMMT734TA

Part # Distributor Description Stock Price Buy
DISTI # 07AH3981
Newark Transistor, Pnp, -100V, -0.8A, Sot23, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:-100V, Transition Frequency Ft:140Mhz, Power Dissipation Pd:625Mw, Dc Collector Current:-800Ma, Dc Current Gain Hfe:5000Hfe, Transistorrohs Compliant: Yes |Diodes Inc. FMMT734TA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4093
  • 1 $0.9330
  • 10 $0.6090
  • 25 $0.5470
  • 50 $0.4850
  • 100 $0.4230
  • 250 $0.3830
  • 500 $0.3430
  • 1,000 $0.3170
$0.3170 / $0.9330 Buy Now
DISTI # FMMT734TA
Avnet Americas Darlington Transistor, PNP, 100 V, 625 mW, 800 mA, SOT-23, 3 Pins - Tape and Reel (Alt: FMMT734TA) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.1572
  • 6,000 $0.1560
  • 12,000 $0.1536
  • 24,000 $0.1514
  • 48,000 $0.1506
$0.1506 / $0.1572 Buy Now
DISTI # 70438235
RS TRANSISTORS, DARLINGTON, PNP DARLINGTON Min Qty: 25 Package Multiple: 1 Container: Bulk 0
  • 25 $1.9800
  • 125 $1.9000
  • 250 $1.7800
  • 2,500 $1.6900
  • 6,250 $1.6000
$1.6000 / $1.9800 RFQ
Bristol Electronics   2429
RFQ
DISTI # FMMT734TA
TME Transistor: PNP, bipolar, Darlington, 100V, 0.8A, 806mW, SOT23 Min Qty: 1 0
  • 1 $0.8100
  • 10 $0.5030
  • 100 $0.3170
  • 500 $0.2430
  • 1,000 $0.2200
  • 3,000 $0.2100
$0.2100 / $0.8100 RFQ
DISTI # FMMT734TA
IBS Electronics FMMT734TA by DIODES INC. is a PNP silicon power Darlington transistor in SOT-23-3 package, featuring 100 V voltage rating and 800 mA current capacity, ideal for high-gain applications. Min Qty: 3000 Package Multiple: 1 60000
  • 3,000 $0.2338
  • 6,000 $0.2310
  • 9,000 $0.2296
  • 12,000 $0.2268
$0.2268 / $0.2338 Buy Now
DISTI # FMMT734TA
Avnet Silica Darlington Transistor PNP 100 V 625 mW 800 mA SOT23 3 Pins (Alt: FMMT734TA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 39000
  • 3,000 $0.5167
  • 39,000 $0.4769
$0.4769 / $0.5167 Buy Now

Part Details for FMMT734TA

FMMT734TA CAD Models

  • Part Symbol

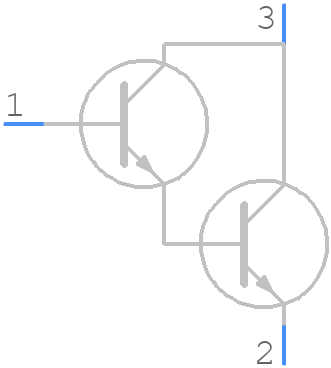

    schematic symbol

  • Footprint

    pcb footprint

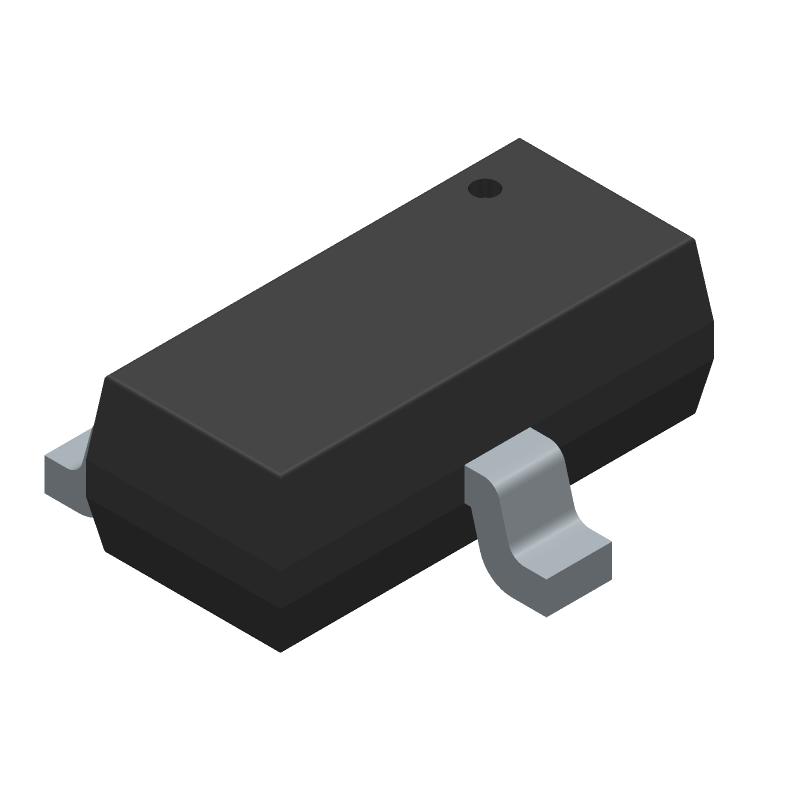

  • 3D Model
