FSM4JSMATR Information
FSM4JSMATR by TE Connectivity is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for FSM4JSMATR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54M3408
|
Newark | Switch, Tactile Spst 50Ma, Smd Outside L, Product Range:Fsmjsma Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Round Button, Actuating Force:160Gf, Contact Rating:50Ma At 24Vdc, Ip Rating:- Rohs Compliant: Yes |Alcoswitch Te Connectivity FSM4JSMATR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2051 |
|
$0.2360 / $0.3310 | Buy Now |
|
DISTI #
28X2036
|
Newark | Switch, Tactile Spst 50Ma, Smd Outside L, Full Reel, Product Range:Fsmjsma Series, Actuator Orientation:Top Actuated, Switch Mounting:Surface Mount, Actuator Style:Round Button, Actuating Force:160Gf, Contact Rating:50Ma At 24Vdc Rohs Compliant: Yes |Alcoswitch Te Connectivity FSM4JSMATR RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.2210 / $0.2510 | Buy Now |
|
DISTI #
450-1759-1-ND
|
DigiKey | SWITCH TACTILE SPST-NO 0.05A 24V Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
23925 In Stock |
|
$0.1613 / $0.3600 | Buy Now |
|
DISTI #
4-1437565-2
|
Avnet Americas | Tactile Switch, FSMJSM, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 24VDC - Bag (Alt: 4-1437565-2) COO: China RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 15 Weeks, 3 Days Container: Bag | 21600 |
|
$0.1237 / $0.1844 | Buy Now |
|
DISTI #
54M3408
|
Avnet Americas | Tactile Switch, FSMJSM, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 24VDC - Product that comes on tape, but is not reeled (Alt: 54M3408) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 2171 Partner Stock |
|
$0.2280 / $0.3230 | Buy Now |
|
DISTI #
506-FSM4JSMATR
|
Mouser Electronics | Tactile Switches SPST OF(0N) RND SMT MINI PB TACT SWITCH RoHS: Compliant | 55993 |
|
$0.1420 / $0.3200 | Buy Now |
|
|
Onlinecomponents.com | Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD T/R COO: China RoHS: Compliant |
193803 In Stock |
|
$0.1170 / $0.1264 | Buy Now |
|
|
Bristol Electronics | 210 |
|
RFQ | ||
|
|
Bristol Electronics | 19 |
|
RFQ | ||
|
|
Quest Components | KEYPAD SWITCH, 1 SWITCHES, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 2.06N, SOLDER TERMINAL, SURFACE MOUNT-STRAIGHT | 3658 |
|
$0.1500 / $1.0000 | Buy Now |
US Tariff Estimator: FSM4JSMATR by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for FSM4JSMATR
FSM4JSMATR CAD Models
-

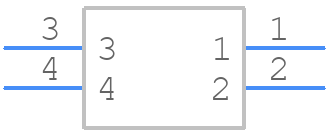

Part Symbol
-

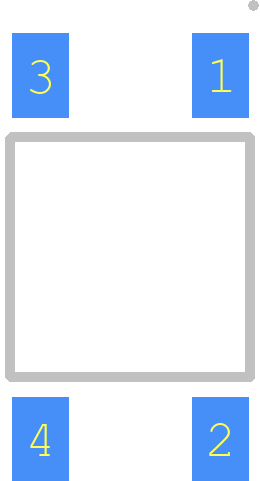

Footprint
-
