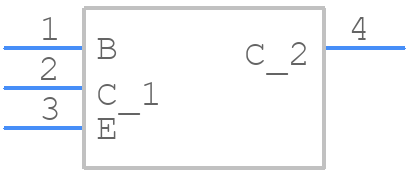

Part Symbol
-

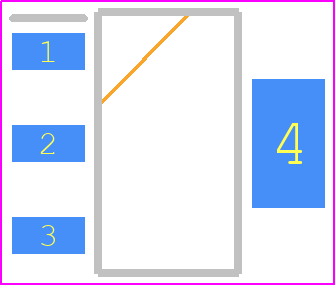

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FZT792ATA by Diodes Incorporated
Results Overview of FZT792ATA by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
FZT792ATA Information
FZT792ATA by Diodes Incorporated is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FZT792ATA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
FZT792ATA
|
Avnet Americas | Trans GP BJT PNP 70V 2A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: FZT792ATA) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 74000 Factory Stock |
|
$0.2486 / $0.3018 | Buy Now |
|
DISTI #
70438276
|
RS | PNP HIGH GAIN TRANSISTOR,2A,75V, SOT223 Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$1.0700 / $1.2600 | RFQ |
|
|
Bristol Electronics | Min Qty: 9 | 380 |
|
$0.2109 / $0.5625 | Buy Now |
|
|
Bristol Electronics | 250 |
|
RFQ | ||
|
DISTI #
FZT792ATA
|
TME | Transistor: PNP, bipolar, 70V, 2A, 1.2W, SOT223 Min Qty: 1 | 662 |
|
$0.3320 / $0.8700 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 1901 |
|
RFQ | |
|
DISTI #
FZT792ATA
|
IBS Electronics | ROHS|EXEMPT|MEDIX|76000|TRANS GP BJT PNP 70V 2A|4-PIN(3+, TAB) SOT-223 SMD T/R|MARKING: FZT 792A Min Qty: 1 Package Multiple: 1 | 11 |
|
$0.3430 / $1.0220 | Buy Now |
|
DISTI #
FZT792ATA
|
Avnet Silica | Trans GP BJT PNP 70V 2A 4Pin3Tab SOT223 TR (Alt: FZT792ATA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 1000 |
|
Buy Now | |
|
|
New Advantage Corporation | FZT792A Series PNP 2 A 70 V SMT Silicon Medium Power Transistor - SOT-223 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 14000 |
|
$0.3923 / $0.4250 | Buy Now |
Part Details for FZT792ATA
FZT792ATA CAD Models
FZT792ATA Part Data Attributes
|
|
FZT792ATA
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
FZT792ATA
Diodes Incorporated
Power Bipolar Transistor, 2A I(C), 70V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin,
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 2 A | |
| Collector-Emitter Voltage-Max | 70 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 200 | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Pnp | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 160 Mhz |
