GRM033R61A224ME90D by: Murata Manufacturing Co Ltd

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.22uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT

Part Details for GRM033R61A224ME90D by Murata Manufacturing Co Ltd

Results Overview of GRM033R61A224ME90D by Murata Manufacturing Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

GRM033R61A224ME90D Information

GRM033R61A224ME90D by Murata Manufacturing Co Ltd is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for GRM033R61A224ME90D

Part # Distributor Description Stock Price Buy
DISTI # 77AH4495
Newark Cap, 0.22Uf, 10V, Mlcc, 0201 Rohs Compliant: Yes |Murata GRM033R61A224ME90D RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 10 $0.0380
  • 25 $0.0240
  • 50 $0.0170
  • 100 $0.0130
  • 250 $0.0100
  • 500 $0.0070
  • 1,000 $0.0060
$0.0060 / $0.0380 Buy Now
DISTI # 65AH6963
Newark Cap, 0.22Uf, 10V, Mlcc, 0201, Capacitance:0.22Μf, Voltage Rating:10V, Ceramic Capacitor Case:0201 [0603 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:Grm Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Murata GRM033R61A224ME90D RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 10,000 $0.0040
$0.0040 Buy Now
DISTI # GRM033R61A224ME90D
Avnet Americas Multilayer Ceramic Capacitor, 0.22 uF, 10 V, ? 20%, X5R, 0201 [0603 Metric] - Tape and Reel (Alt: GRM033R61A224ME90D) COO: Japan RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 10 Weeks, 0 Days Container: Reel 780000
  • 15,000 $0.0053
  • 30,000 $0.0053
  • 60,000 $0.0053
  • 120,000 $0.0052
  • 240,000 $0.0052
$0.0052 / $0.0053 Buy Now
Bristol Electronics   12987
RFQ
DISTI # GRM033R61A224ME90D
TME Capacitor: ceramic, MLCC, 220nF, 10V, X5R, ±20%, SMD, 0201, 180mm Min Qty: 1 10904
  • 1 $0.0800
  • 10 $0.0150
  • 50 $0.0112
  • 100 $0.0098
  • 1,000 $0.0063
  • 2,500 $0.0052
  • 6,000 $0.0044
  • 7,500 $0.0042
  • 10,000 $0.0039
  • 15,000 $0.0036
$0.0036 / $0.0800 Buy Now
ComSIT USA AVAILABLE EU 28717
RFQ
DISTI # GRM033R61A224ME90D
Avnet Abacus Multilayer Ceramic Capacitor 022 uF 10 V 20 X5R 0201 0603 Metric - Tape and Reel (Alt: GRM033R61A224ME90D) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 30000
Buy Now
DISTI # GRM033R61A224ME90D
Avnet Asia Multilayer Ceramic Capacitor, 0.22 uF, 10 V, ? 20%, X5R, 0201 [0603 Metric] (Alt: GRM033R61A224ME90D) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 14 Weeks, 0 Days 0
  • 15,000 $0.0037
  • 45,000 $0.0026
  • 75,000 $0.0026
  • 150,000 $0.0025
  • 375,000 $0.0025
  • 750,000 $0.0024
  • 1,500,000 $0.0023
$0.0023 / $0.0037 Buy Now
DISTI # GRM033R61A224ME90D
Chip One Stop Cap Ceramic 0.22uF 10V X5R 20% Pad SMD 0201 85C T/R RoHS: Compliant Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape 668082
  • 10 $0.0139
  • 100 $0.0100
  • 200 $0.0075
  • 500 $0.0050
  • 1,000 $0.0037
  • 5,000 $0.0032
  • 15,000 $0.0027
  • 30,000 $0.0026
  • 60,000 $0.0025
  • 480,000 $0.0022
$0.0022 / $0.0139 Buy Now
Greenchips   Date Code: 1916/JP 180000
  • 1 $0.0055
  • 100 $0.0053
  • 1,000 $0.0050
  • 10,000 $0.0045
$0.0045 / $0.0055 Buy Now
Greenchips   Date Code: 1719/JP 59000
  • 1 $0.0052
  • 100 $0.0049
  • 1,000 $0.0046
  • 10,000 $0.0042
$0.0042 / $0.0052 Buy Now
LCSC 10V 220nF X5R 20% 0201 Ceramic Capacitors RoHS 13200
  • 100 $0.0062
  • 1,000 $0.0048
  • 3,000 $0.0040
  • 15,000 $0.0036
  • 45,000 $0.0032
  • 105,000 $0.0030
$0.0030 / $0.0062 Buy Now
New Advantage Corporation 0201 0.22 uF 10 V �20% Tolerance X5R SMT Multilayer Ceramic Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 15000 600000
  • 45,000 $0.0048
  • 600,000 $0.0045
$0.0045 / $0.0048 Buy Now

Part Details for GRM033R61A224ME90D

GRM033R61A224ME90D CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

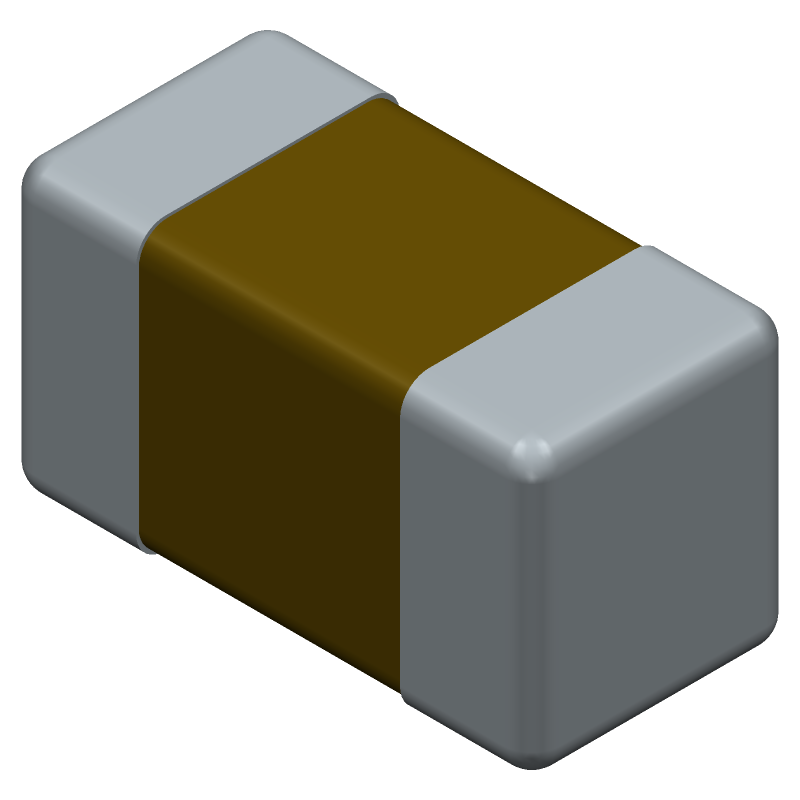

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

GRM033R61A224ME90D Part Data Attributes

Parametric Data
GRM033R61A224ME90D Murata Manufacturing Co Ltd
Buy Now Datasheet
Compare Parts:
GRM033R61A224ME90D Murata Manufacturing Co Ltd Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.22uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MURATA MANUFACTURING CO LTD
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 10 Weeks
Samacsys Manufacturer Murata Electronics
Capacitance 0.22 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.3 mm
JESD-609 Code e3
Length 0.6 mm
Mounting Feature SURFACE MOUNT
Multilayer YES
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Size Code 0201
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.3 mm

Alternate Parts for GRM033R61A224ME90D

This table gives cross-reference parts and alternative options found for GRM033R61A224ME90D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GRM033R61A224ME90D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0603X5R1A224MT TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.22uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT GRM033R61A224ME90D vs C0603X5R1A224MT
CM03X5R224M10KH KYOCERA Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.22uF, 0201, GRM033R61A224ME90D vs CM03X5R224M10KH
GRT033R61A224ME01J Murata Manufacturing Co Ltd Check for Price CAPACITOR, CERAMIC, MULTILAYER, 10 V, X5R, 0.22 uF, SURFACE MOUNT, 0201, CHIP GRM033R61A224ME90D vs GRT033R61A224ME01J
SCM04D224MNNH Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.22uF, 0201, GRM033R61A224ME90D vs SCM04D224MNNH
GRT033R61A224ME01W Murata Manufacturing Co Ltd Check for Price CAPACITOR, CERAMIC, MULTILAYER, 10 V, X5R, 0.22 uF, SURFACE MOUNT, 0201, CHIP GRM033R61A224ME90D vs GRT033R61A224ME01W
02012B224M6B20D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.22uF, 0201, GRM033R61A224ME90D vs 02012B224M6B20D
SCM04D224MNNI Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.22uF, 0201, GRM033R61A224ME90D vs SCM04D224MNNI
223824853754 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.22uF, 0201, GRM033R61A224ME90D vs 223824853754
MLASL063SB5224MFNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.22uF, Surface Mount, 0201, CHIP GRM033R61A224ME90D vs MLASL063SB5224MFNA01
0201ZD224MAT4A Kyocera AVX Components Check for Price Ceramic Capacitor, Non-polarized, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.22uF, Surface Mount, 0201, CHIP GRM033R61A224ME90D vs 0201ZD224MAT4A
equivalents icon

GRM033R61A224ME90D Related Parts

GRM033R61A224ME90D Frequently Asked Questions (FAQ)

  • The recommended land pattern for the GRM033R61A224ME90D can be found in the Murata Land Pattern document, which provides guidelines for pad layout and spacing to ensure reliable soldering and assembly.

  • The Equivalent Series Resistance (ESR) of the GRM033R61A224ME90D is relatively low, which makes it suitable for high-frequency applications. However, it's essential to consider the ESR value when designing high-frequency circuits to ensure optimal performance and minimize energy losses.

  • The GRM033R61A224ME90D is rated for operation up to 125°C, but its capacitance and ESR values may change with temperature. It's essential to consider the temperature coefficient and derating factors when designing for high-temperature applications.

  • The GRM033R61A224ME90D is a moisture-sensitive device. It's essential to follow proper storage and handling procedures, such as storing the components in a dry environment and using a dry pack or desiccant to control humidity during assembly.

  • The recommended soldering profile for the GRM033R61A224ME90D can be found in the Murata Soldering Guidelines document, which provides guidelines for temperature, time, and other parameters to ensure reliable soldering and minimize defects.
