Part Details for H3LIS100DLTR by STMicroelectronics
Results Overview of H3LIS100DLTR by STMicroelectronics
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
H3LIS100DLTR Information
H3LIS100DLTR by STMicroelectronics is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for H3LIS100DLTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83Y4296
|
Newark | Mems Motion Sensor, Digital, Tflga-16, Sensing Range - Accelerometer:± 100G, Sensing Axis:X, Y, Z, Output Interface:I2C, Spi, Sensor Case/Package:Tflga, No. Of Pins:16Pins, Sensitivity Typ:780Mg/Digit, Supply Voltage Min:2.16V Rohs Compliant: Yes |Stmicroelectronics H3LIS100DLTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2418 |
|
$4.1300 / $5.5600 | Buy Now |
|
DISTI #
497-15697-1-ND
|
DigiKey | ACCELEROMETER 100G I2C/SPI 16LGA Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
8493 In Stock |
|
$4.3502 / $6.6900 | Buy Now |
|
DISTI #
H3LIS100DLTR
|
Avnet Americas | Accelerometer Triple ?100g 2.16V to 3.6V 16-Pin TFLGA T/R - Tape and Reel (Alt: H3LIS100DLTR) COO: Malta RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$3.9271 / $4.1983 | Buy Now |
|
DISTI #
511-H3LIS100DLTR
|
Mouser Electronics | Accelerometers Ultra low power 3-axis accelerometer, SPI/I2C digital output MEMS motion sensor RoHS: Compliant | 9388 |
|
$4.2000 / $6.4200 | Buy Now |
|
DISTI #
E02:0323_08681354
|
Arrow Electronics | Accelerometer Triple ±100g 2.5V 16-Pin TFLGA T/R COO: Malta RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2506 | Europe - 3280 |
|
$4.2649 / $6.3803 | Buy Now |
|
DISTI #
V72:2272_06547753
|
Arrow Electronics | Accelerometer Triple ±100g 2.5V 16-Pin TFLGA T/R COO: Malta RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2221 Container: Cut Strips | Americas - 119 |
|
$4.0960 / $4.8580 | Buy Now |
|
|
STMicroelectronics | Ultra low power 3-axis accelerometer, SPI/I2C digital output MEMS motion sensor COO: Italy RoHS: Compliant Min Qty: 1 | 9388 |
|
$4.5200 / $6.2900 | Buy Now |
|
|
Future Electronics | LLGA 3X3X1.0 16L - FOR SENSOR RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks Container: Reel | 4000Reel |
|
$4.9000 | Buy Now |
|
DISTI #
88033018
|
Verical | Accelerometer Triple ±100g 2.5V 16-Pin TFLGA T/R RoHS: Exempt Min Qty: 2 Package Multiple: 1 Date Code: 2506 | Americas - 3280 |
|
$4.2193 / $6.3121 | Buy Now |
|
DISTI #
63339063
|
Verical | Accelerometer Triple ±100g 2.5V 16-Pin TFLGA T/R RoHS: Exempt Min Qty: 2 Package Multiple: 1 Date Code: 2221 | Americas - 119 |
|
$4.0960 / $4.8580 | Buy Now |
US Tariff Estimator: H3LIS100DLTR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for H3LIS100DLTR
H3LIS100DLTR CAD Models
-

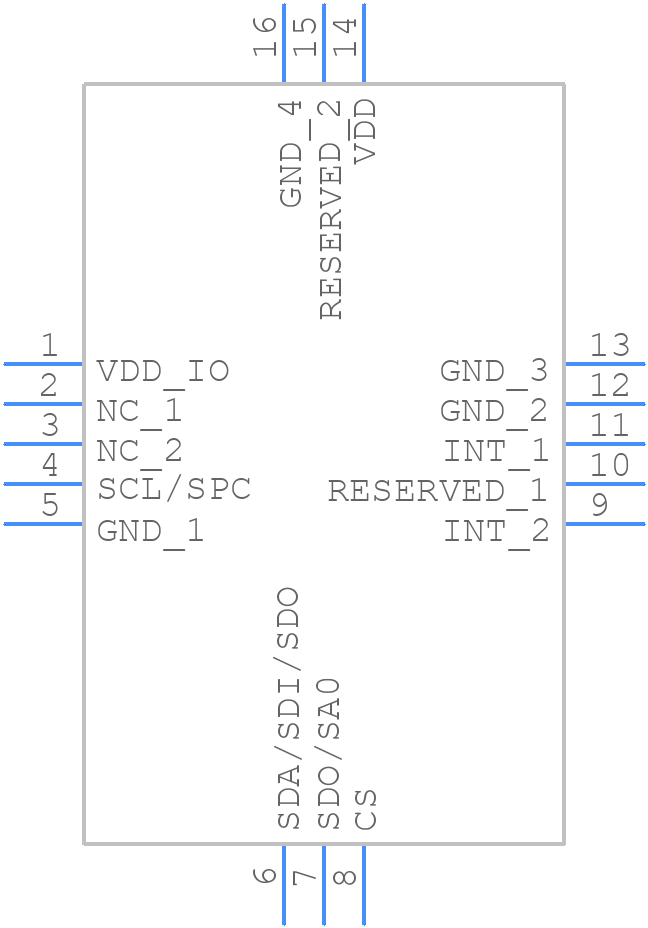

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
H3LIS100DLTR Part Data Attributes
|
|
H3LIS100DLTR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
H3LIS100DLTR
STMicroelectronics
Motion Sensor, 1 Func, PBGA16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tflga, Lcc16,.12sq,20 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Analog IC - Other Type | Motion Sensor | |
| JESD-30 Code | S-PBGA-BU16 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TFLGA | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Package Shape | Square | |
| Package Style | Grid Array, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.16 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Gold (Ni/Au) - Electrolytic | |
| Terminal Form | Butt | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Bottom | |
| Width | 3 Mm |
H3LIS100DLTR Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VDDIO before VDD. This ensures that the internal voltage regulators are properly powered up.
-
To configure the H3LIS100DLTR for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA.
-
The maximum acceleration range of the H3LIS100DLTR is ±100g. However, the device can be configured to measure accelerations up to ±400g by adjusting the FS_SEL bits in the CTRL_REG4 register.
-
The H3LIS100DLTR can be interfaced with a microcontroller using the SPI or I2C protocol. The device has a 16-bit data output, and the communication protocol can be selected using the SPI_WU or I2C_WU bits in the CTRL_REG1 register.
-
The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or motion detection. These pins can be used to wake up a microcontroller from sleep mode or to trigger specific actions.
