HMC8411LP2FE by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC8411LP2FE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8340
|
Newark | Rf Amplifier, Lfcsp-6, -40 To 85Deg C, Frequency Response Rf Min:10Mhz, Frequency Response Rf Max:10Ghz, Gain Typ:16.5Db, Supply Voltage Min:3V, Supply Voltage Max:7V, Ic Case/Package:Lfcsp, No. Of Pins:6Pins, Product Range:- Rohs Compliant: Yes |Analog Devices HMC8411LP2FE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$52.9400 / $67.5000 | Buy Now |
|
DISTI #
505-HMC8411LP2FE-ND
|
DigiKey | IC RF AMP GPS 10MHZ-10GHZ 6LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Strip |
358 In Stock |
|
$57.6975 / $77.6400 | Buy Now |
|
DISTI #
584-HMC8411LP2FE
|
Mouser Electronics | RF Amplifier DC - 8 GHz 15 dB Gain RoHS: Compliant | 1003 |
|
$51.4000 / $65.5300 | Buy Now |
|
|
Analog Devices Inc | DC - 8 GHz 15 dB Gain Package Multiple: 1 | 302 |
|
$41.1200 / $65.5300 | Buy Now |
|
DISTI #
HMC8411LP2FE
|
Richardson RFPD | RF & MW LNA RoHS: Compliant Min Qty: 1 | 60 |
|
$53.7700 / $61.6800 | Buy Now |
|
|
Win Source Electronics | DC - 8 GHZ 15 DB GAIN / RF Amplifier IC General Purpose 10MHz ~ 10GHz 6-LFCSP (2x2) | 501 |
|
$52.8478 / $79.2717 | Buy Now |
US Tariff Estimator: HMC8411LP2FE by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for HMC8411LP2FE
HMC8411LP2FE CAD Models
-

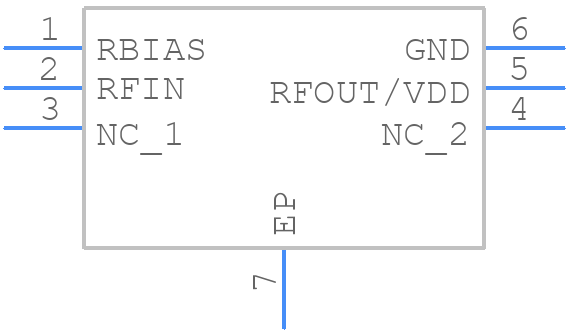

Part Symbol
-
