Part Details for HVLED815PF by STMicroelectronics
Results Overview of HVLED815PF by STMicroelectronics
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
HVLED815PF Information
HVLED815PF by STMicroelectronics is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for HVLED815PF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14656-ND
|
DigiKey | IC LED DRIVER OFFL PWM 16SO Container: Tube |
0 Tube |
|
Buy Now | |
|
|
Chip Stock | Off-line LED driver with primary-sensing and high power factor up to 15W | 23635 |
|
RFQ | |
|
|
Win Source Electronics | IC LED DRIVER OFFL PWM 16SO | 20135 |
|
$1.4797 / $1.9008 | Buy Now |
US Tariff Estimator: HVLED815PF by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
HVLED815PF CAD Models
-

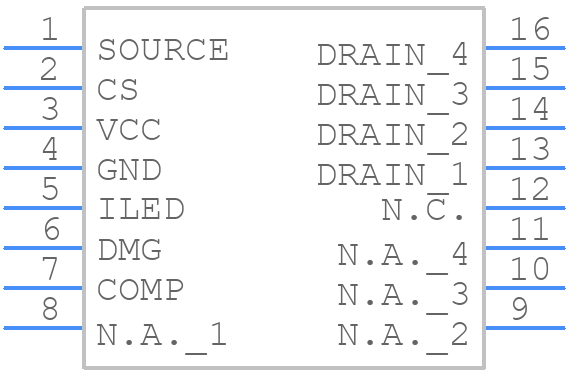

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
HVLED815PF Part Data Attributes
|
|
HVLED815PF
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
HVLED815PF
STMicroelectronics
LED Driver, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Data Input Mode | Serial | |
| Input Characteristics | Standard | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Multiplexed Display Capability | No | |
| Number of Functions | 1 | |
| Number of Segments | 3 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Open-Drain | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 1.7 Ma | |
| Supply Voltage-Max | 23 V | |
| Supply Voltage-Min | 11.5 V | |
| Supply Voltage-Nom | 14 V | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm | |
| fmax-Min | 0.05 Mhz |
Alternate Parts for HVLED815PF
This table gives cross-reference parts and alternative options found for HVLED815PF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HVLED815PF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
HVLED815PF Frequently Asked Questions (FAQ)
-
STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the high-voltage traces as short as possible. Additionally, a shielded cable or a twisted pair should be used for the LED connection to reduce EMI.
-
To ensure reliability, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, a thermal management system, such as a heat sink or a thermal pad, should be implemented to keep the device temperature within the recommended range.
-
While the datasheet doesn't specify a maximum dimming frequency, STMicroelectronics recommends limiting the dimming frequency to 1 kHz or lower to avoid potential issues with the device's internal oscillator and to ensure reliable operation.
-
To protect the device from overvoltage and overcurrent conditions, it's recommended to use a voltage regulator or a voltage limiter, as well as a current limiter or a fuse, in the circuit design. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage spikes and transients.
-
The HVLED815PF is designed to work with LED strips that do not have built-in resistors. If the LED strip has a built-in resistor, it may affect the device's performance and reliability. It's recommended to use an LED strip without a built-in resistor or to add an external resistor to the circuit to ensure proper operation.
