ICM7211AMIPL+ Information
ICM7211AMIPL+ by Analog Devices Inc is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ICM7211AMIPL+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-ICM7211AMIPL
|
Mouser Electronics | LCD Drivers Four Digit Display Decoder/Drivers RoHS: Compliant | 66 |
|
$9.0100 / $14.2100 | Buy Now |
|
|
Analog Devices Inc | Four Digit Display Decoder/Dri Package Multiple: 1 | 2521 |
|
$8.8209 / $14.2100 | Buy Now |
|
|
Rochester Electronics | Liquid Crystal Driver, 7-Segment, CMOS, PDIP40 RoHS: Compliant Status: Active Min Qty: 1 | 21 |
|
$6.8300 / $8.5400 | Buy Now |
US Tariff Estimator: ICM7211AMIPL+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ICM7211AMIPL+
ICM7211AMIPL+ CAD Models
-

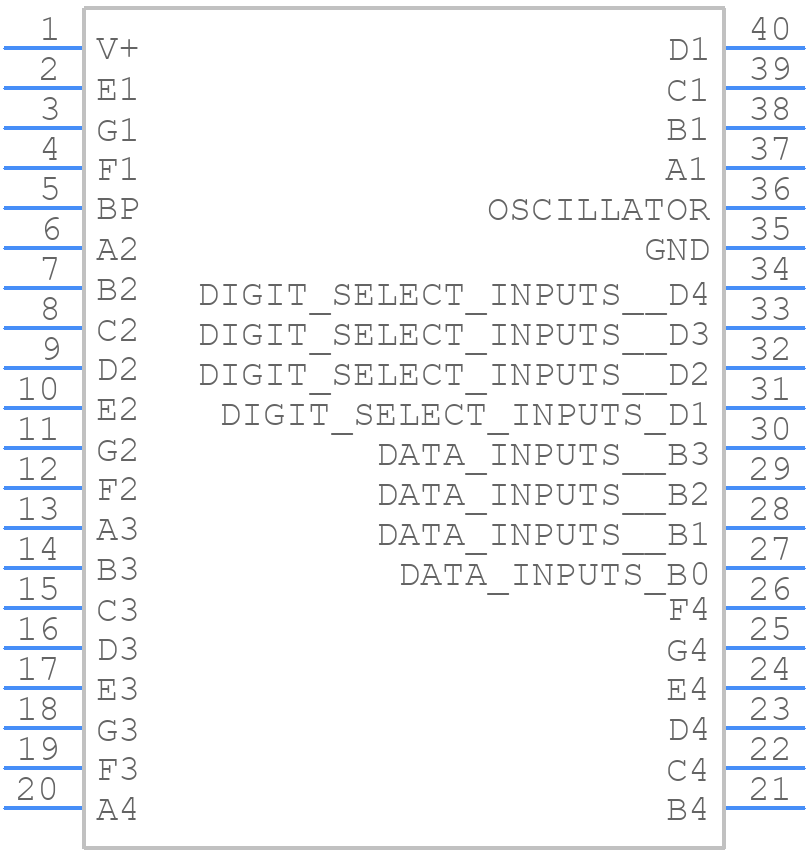

Part Symbol
-

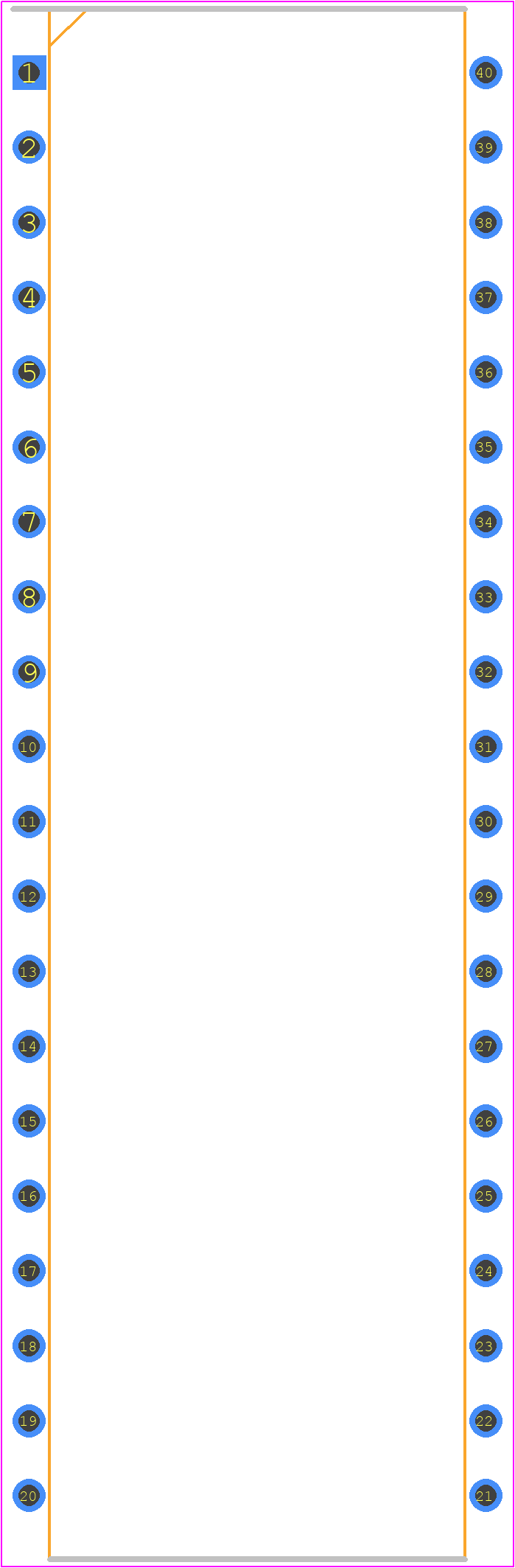

Footprint
-

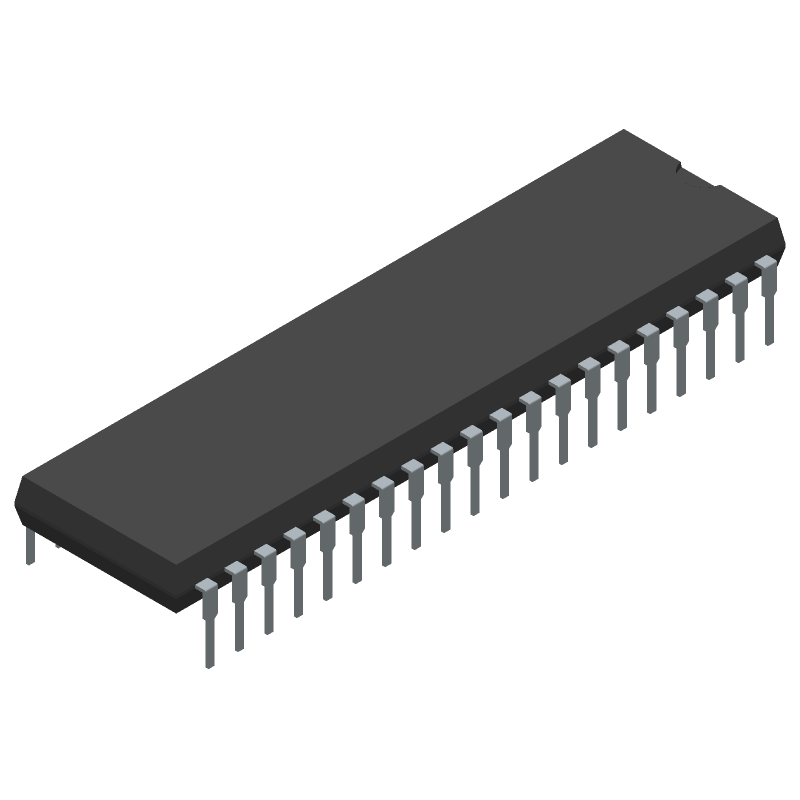

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ICM7211AMIPL+ Part Data Attributes
|
|
ICM7211AMIPL+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ICM7211AMIPL+
Analog Devices Inc
Liquid Crystal Driver, 7-Segment, CMOS, PDIP40
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 40-PDIP-600_MIL | |
| Package Description | Dip, Dip40,.6 | |
| Pin Count | 40 | |
| Manufacturer Package Code | 40-PDIP-600_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1995-01-01 | |
| Data Input Mode | Parallel | |
| Display Mode | Segment | |
| Input Characteristics | Standard | |
| Interface IC Type | Liquid Crystal Display Driver | |
| JESD-30 Code | R-PDIP-T40 | |
| JESD-609 Code | e3 | |
| Length | 52.075 Mm | |
| Moisture Sensitivity Level | 1 | |
| Multiplexed Display Capability | No | |
| Number of Digits/Characters | 4-Digit | |
| Number of Functions | 1 | |
| Number of Segments | 7 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Characteristics | Totem-Pole | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP40,.6 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Supply Current-Max | 0.05 Ma | |
| Supply Voltage-Max | 6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Other | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15.24 Mm |
