INA208AID by: Texas Instruments

Operational Amplifier, 2 Func, 2500uV Offset-Max, BICMOS, PDSO14

Part Details for INA208AID by Texas Instruments

Results Overview of INA208AID by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Consumer Electronics Energy and Power Systems Transportation and Logistics Healthcare Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging

INA208AID Information

INA208AID by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for INA208AID

Part # Distributor Description Stock Price Buy
DISTI # 2156-INA208AID-ND
DigiKey IC CURRENT MONITOR 3.5% 14SOIC Min Qty: 86 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 11386
In Stock
  • 86 $3.4800
$3.4800 Buy Now
DISTI # 296-20721-5-ND
DigiKey IC CURRENT MONITOR 3.5% 14SOIC Min Qty: 86 Lead time: 6 Weeks Container: Tube Limited Supply - Call
  • 150 $3.3580
$3.3580 Buy Now
DISTI # 86278956
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1501 Americas - 5100
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278919
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Americas - 3800
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278985
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 0601 Americas - 1779
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86279612
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1001 Americas - 547
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
Rochester Electronics Operational Amplifier, 2 Func, 2500uV Offset-Max, PDSO14 RoHS: Compliant Status: Obsolete Min Qty: 1 11386
  • 25 $2.7800
  • 100 $2.6400
  • 500 $2.5000
  • 1,000 $2.3600
  • 10,000 $2.2200
$2.2200 / $2.7800 Buy Now
DISTI # 86278956
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1501 Americas - 5100
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278919
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Americas - 3800
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278985
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 0601 Americas - 1779
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86279612
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1001 Americas - 547
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278956
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1501 Americas - 5100
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278919
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Americas - 3800
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86278985
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 0601 Americas - 1779
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now
DISTI # 86279612
Verical Comparator Dual 18V Automotive 14-Pin SOIC Tube RoHS: Compliant Min Qty: 114 Package Multiple: 1 Date Code: 1001 Americas - 547
  • 114 $3.3000
  • 500 $3.1250
  • 1,000 $2.9500
  • 10,000 $2.7750
$2.7750 / $3.3000 Buy Now

US Tariff Estimator: INA208AID by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

INA208AID
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for INA208AID

INA208AID CAD Models

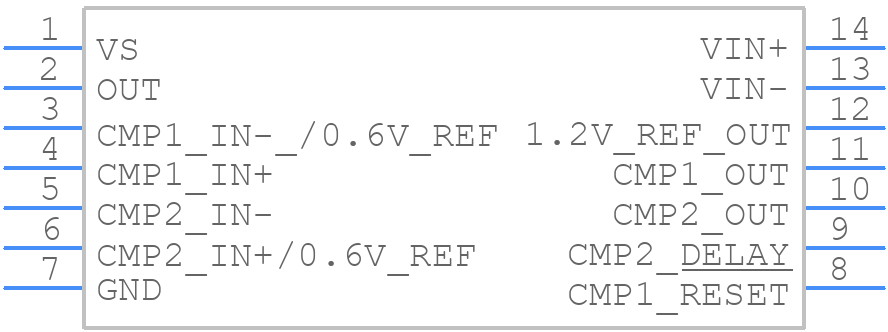

  • Part Symbol
