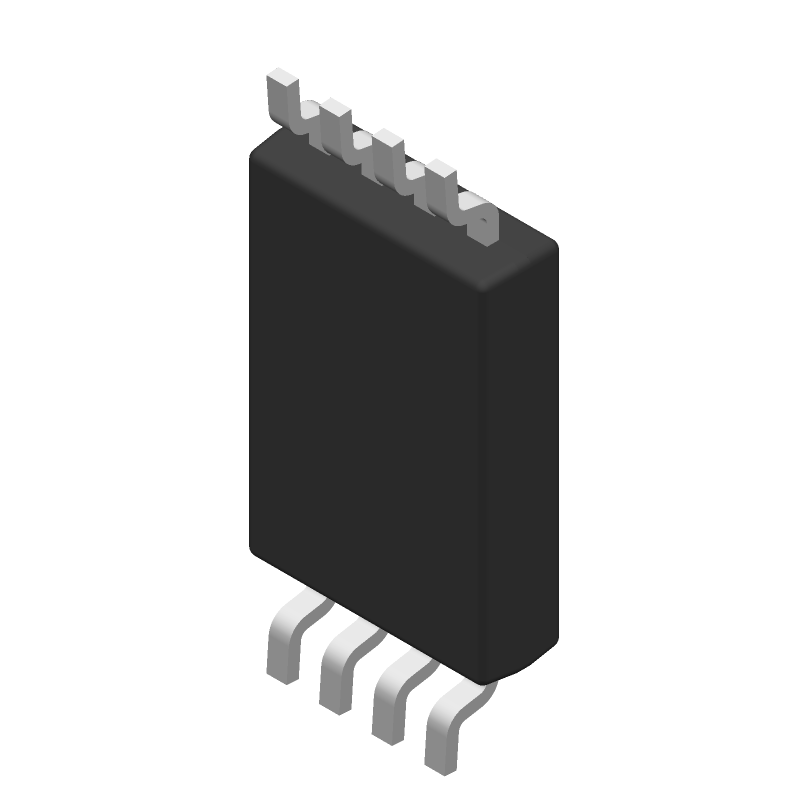

INA240A4PW Information
INA240A4PW by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
US Tariff Estimator: INA240A4PW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for INA240A4PW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of INA240A4PW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The maximum power dissipation of the INA240A4PW is 1.4W at 25°C. However, it's recommended to derate the power dissipation to ensure reliable operation.
The gain of the INA240A4PW can be calculated using the formula: Gain = (R2/R1) x (1 + (R4/R3)), where R1, R2, R3, and R4 are the external resistors connected to the device.
The input impedance of the INA240A4PW is typically around 10GΩ in parallel with 2pF. However, this can vary depending on the specific application and external components used.
Yes, the INA240A4PW is suitable for high-frequency applications up to 2.5MHz. However, it's essential to ensure that the external components and PCB layout are optimized for high-frequency operation.
To reduce noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and minimizing trace lengths. Additionally, consider using filters, such as RC filters or ferrite beads, to reduce high-frequency noise.
