INN3162C-H101-TL by: Power Integrations

Switching Controller, 145kHz Switching Freq-Max, PDSO20

Part Details for INN3162C-H101-TL by Power Integrations

Results Overview of INN3162C-H101-TL by Power Integrations

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

INN3162C-H101-TL Information

INN3162C-H101-TL by Power Integrations is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for INN3162C-H101-TL

Part # Distributor Description Stock Price Buy
DISTI # 43AC3237
Newark Ac/Dcconv, Flyback, 10W, -40 To 105Deg C, Input Voltage Min:85Vac, Input Voltage Max:265Vac, Ic Case/Package:Insop-24D, No. Of Pins:17Pins, Power Rating Max:10W, Topology:Flyback, Isolation:Isolated, Power Switch Current Rating:- Rohs Compliant: Yes |Power Integrations INN3162C-H101-TL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1878
  • 1 $0.9480
  • 10 $0.9140
  • 25 $0.8800
  • 50 $0.8460
  • 100 $0.8120
  • 250 $0.7620
  • 500 $0.7130
  • 1,000 $0.6630
$0.6630 / $0.9480 Buy Now
DISTI # INN3162C-H101-TL
Avnet Americas AC/DC Flyback Converter, InnoSwitch3-CE, 85 Vac to 265 Vac, 10 W, InSOP-24D-17 - Tape and Reel (Alt: INN3162C-H101-TL) COO: Thailand RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel 0
  • 2,000 $0.6143
  • 4,000 $0.6008
  • 8,000 $0.5978
  • 12,000 $0.5948
  • 16,000 $0.5917
$0.5917 / $0.6143 Buy Now
DISTI # 869-INN3162C-H101-TL
Mouser Electronics AC/DC Converters 10 W (85-265 VAC) RoHS: Compliant 3793
  • 1 $1.0000
  • 100 $0.8370
  • 1,000 $0.7100
  • 2,000 $0.7100
  • 10,000 $0.6100
$0.6100 / $1.0000 Buy Now
Future Electronics INN3162C Series 650 V 100 kHz Off-Line CV/CC QR Flyback Switcher IC - InSOP-24D RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 8 Weeks Container: Reel 0
Reel
  • 2,000 $0.5400
  • 4,000 $0.5300
  • 6,000 $0.5250
$0.5250 / $0.5400 Buy Now
DISTI # INN3162C-H101-TL
TME IC: PMIC, AC/DC switcher,SMPS controller, InSOP-24D, flyback Min Qty: 1 0
  • 1 $0.9000
  • 100 $0.8320
  • 250 $0.7920
  • 500 $0.7590
  • 1,000 $0.7240
  • 2,000 $0.6880
  • 4,000 $0.6780
$0.6780 / $0.9000 RFQ
DISTI # INN3162C-H101-TL
IBS Electronics INN3162C-H101-TL by POWER INTEGRATIONS is a 650V 100kHz off-line CV/CC quasi-resonant flyback switcher IC from the INN3162C series, housed in an InSOP-24D package. Min Qty: 1 Package Multiple: 1 0
  • 1 $0.7280
  • 4,000 $0.7210
  • 6,000 $0.7070
$0.7070 / $0.7280 Buy Now
DISTI # INN3162C-H101-TL
Avnet Asia AC/DC Flyback Converter, InnoSwitch3-CE, 85 Vac to 265 Vac, 10 W, InSOP-24D-17 (Alt: INN3162C-H101-TL) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 8 Weeks, 0 Days 0
RFQ
DISTI # INN3162C-H101-TL
EBV Elektronik ACDC Flyback Converter InnoSwitch3CE 85 Vac to 265 Vac 10 W InSOP24D17 (Alt: INN3162C-H101-TL) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: INN3162C-H101-TL by Power Integrations

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

INN3162C-H101-TL
Power Integrations
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for INN3162C-H101-TL

INN3162C-H101-TL CAD Models

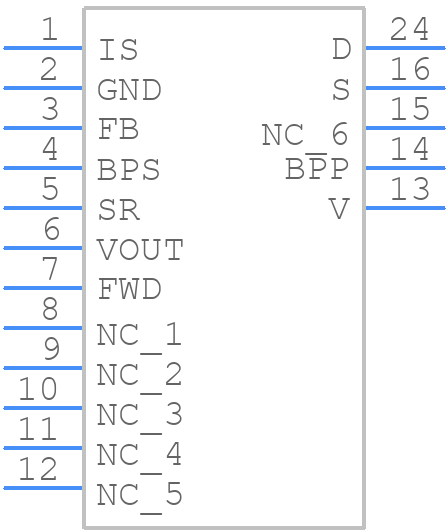

  • Part Symbol

    schematic symbol

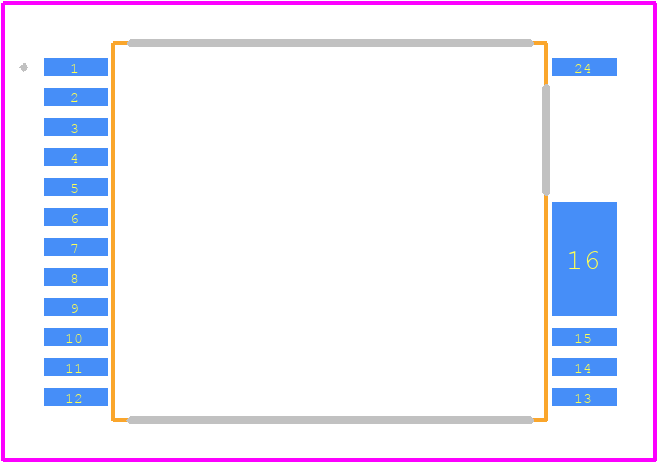

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

INN3162C-H101-TL Part Data Attributes

Parametric Data
INN3162C-H101-TL Power Integrations
Buy Now Datasheet
Compare Parts:
INN3162C-H101-TL Power Integrations Switching Controller, 145kHz Switching Freq-Max, PDSO20
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lsop,
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Analog IC - Other Type Switching Controller
Control Technique Resonant Control
JESD-30 Code R-PDSO-G20
Length 10.8 Mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code LSOP
Package Shape Rectangular
Package Style Small Outline, Low Profile
Seated Height-Max 1.6 Mm
Surface Mount Yes
Switching Frequency-Max 145 Khz
Temperature Grade Industrial
Terminal Form Gull Wing
Terminal Position Dual
Width 9.4 Mm
equivalents icon

INN3162C-H101-TL Frequently Asked Questions (FAQ)

  • A good PCB layout for optimal thermal performance involves placing the INN3162C-H101-TL near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.

  • To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is above the UVLO threshold (around 10V) before enabling the device. Also, ensure that the output voltage is properly decoupled and filtered to prevent oscillations.

  • The critical components that affect the EMI performance of the INN3162C-H101-TL include the input filter components (e.g., C1, R1, L1), the output filter components (e.g., C2, R2, L2), and the PCB layout. Proper selection and placement of these components, as well as a good PCB layout, are essential for minimizing EMI emissions.

  • To optimize the design for low standby power consumption, ensure that the input voltage is minimized during standby mode, and that the device is properly shut down. Also, consider using a low-standby-power controller or a low-dropout regulator to minimize power consumption during standby mode.

  • When selecting the input and output capacitors, consider the voltage rating, capacitance value, ESR, and ripple current rating. Ensure that the capacitors are rated for the maximum input voltage and output voltage, and that they can handle the ripple current and ESR requirements.
