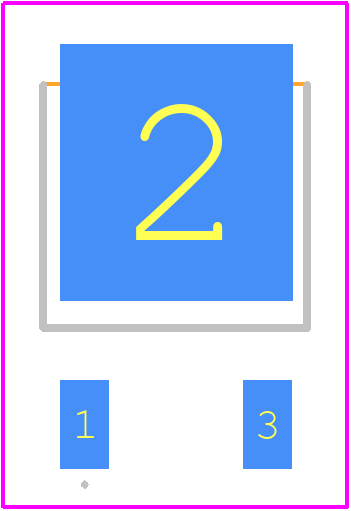

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRLR8726TRPBF by Infineon Technologies AG
Overview of IRLR8726TRPBF by Infineon Technologies AG
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for IRLR8726TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
IRLR8726TRPBFCT-ND
|
DigiKey | MOSFET N-CH 30V 86A DPAK Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
37389 In Stock |
|
$0.1746 / $0.6200 | Buy Now |
|
DISTI #
IRLR8726TRPBF
|
Avnet Americas | Trans MOSFET N-CH 30V 86A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: IRLR8726TRPBF) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1571 / $0.1921 | Buy Now |
|
DISTI #
13AC9245
|
Avnet Americas | Trans MOSFET N-CH 30V 86A 3-Pin(2+Tab) DPAK T/R - Product that comes on tape, but is not reeled (Alt: 13AC9245) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 3328 Partner Stock |
|
$0.4500 / $0.6740 | Buy Now |
|
DISTI #
942-IRLR8726TRPBF
|
Mouser Electronics | MOSFET 30V 1 N-CH HEXFET 5.8mOhms 15nC RoHS: Compliant | 10771 |
|
$0.1830 / $0.5600 | Buy Now |
|
DISTI #
70019882
|
RS | IRLR8726TRPBF N-channel MOSFET Transistor, 86 A, 30 V, 3+Tab-Pin DPAK | Infineon IRLR8726TRPBF RoHS: Not Compliant Min Qty: 40 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4100 / $0.4820 | RFQ |
|
|
Future Electronics | Single N-Channel 30 V 5.8 mOhm 23 nC HEXFET® Power Mosfet - TO-252-3 RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Container: Reel | 4000Reel |
|
$0.1660 / $0.1800 | Buy Now |
|
|
Future Electronics | Single N-Channel 30 V 5.8 mOhm 23 nC HEXFET® Power Mosfet - TO-252-3 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 2000 Container: Reel | 0Reel |
|
$0.1660 / $0.1800 | Buy Now |
|
DISTI #
IRLR8726TRPBF
|
Avnet Americas | Trans MOSFET N-CH 30V 86A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: IRLR8726TRPBF) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1571 / $0.1921 | Buy Now |
|
DISTI #
13AC9245
|
Avnet Americas | Trans MOSFET N-CH 30V 86A 3-Pin(2+Tab) DPAK T/R - Product that comes on tape, but is not reeled (Alt: 13AC9245) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 3328 Partner Stock |
|
$0.4500 / $0.6740 | Buy Now |
|
DISTI #
IRLR8726TRPBF
|
TME | Transistor: N-MOSFET, unipolar, 30V, 61A, Idm: 340A, 75W, DPAK Min Qty: 3 | 0 |
|
$0.2260 / $0.3440 | RFQ |
Part Details for IRLR8726TRPBF
IRLR8726TRPBF CAD Models
IRLR8726TRPBF Part Data Attributes
|
|
IRLR8726TRPBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRLR8726TRPBF
Infineon Technologies AG
Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, ROHS COMPLIANT, DPAK, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | Infineon | |
| Avalanche Energy Rating (Eas) | 120 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 86 A | |
| Drain-source On Resistance-Max | 0.058 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 75 W | |
| Pulsed Drain Current-Max (IDM) | 340 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for IRLR8726TRPBF
This table gives cross-reference parts and alternative options found for IRLR8726TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRLR8726TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| IRLR8726TRLPBF | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, ROHS COMPLIANT, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726TRLPBF |
| IRLR8726TRR | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | Infineon Technologies AG | IRLR8726TRPBF vs IRLR8726TRR |
| IRLR8726 | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726 |
| IRLR8726TRPBF | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, ROHS COMPLIANT, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726TRPBF |
| IRLR8726TRLPBF | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, ROHS COMPLIANT, DPAK, 3 PIN | Infineon Technologies AG | IRLR8726TRPBF vs IRLR8726TRLPBF |
| IRLR8726TR | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | Infineon Technologies AG | IRLR8726TRPBF vs IRLR8726TR |
| IRLR8726PBF | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, ROHS COMPLIANT, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726PBF |
| IRLR8726TRR | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726TRR |
| IRLR8726 | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | Infineon Technologies AG | IRLR8726TRPBF vs IRLR8726 |
| IRLR8726TRL | Power Field-Effect Transistor, 86A I(D), 30V, 0.058ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252AA, DPAK, 3 PIN | International Rectifier | IRLR8726TRPBF vs IRLR8726TRL |
