ISO6763DWR by: Texas Instruments

Interface Circuit, CMOS, PDSO16

Part Details for ISO6763DWR by Texas Instruments

Results Overview of ISO6763DWR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ISO6763DWR Information

ISO6763DWR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
ISO6763DWR Texas Instruments General-purpose six-channel reinforced digital isolator with robust EMC 16-SOIC -40 to 125

Price & Stock for ISO6763DWR

Part # Distributor Description Stock Price Buy
DISTI # 296-ISO6763DWRDKR-ND
DigiKey DG ISO 5KV 6CH CAN/RS232 16-SOIC Min Qty: 1 Container: Digi-Reel 7870
Digi-Reel®
  • 1 $3.6000
  • 10 $2.7090
  • 25 $2.4864
  • 100 $2.2413
  • 250 $2.1244
  • 500 $2.1022
$2.1022 / $3.6000 Buy Now
DISTI # 296-ISO6763DWRCT-ND
DigiKey DG ISO 5KV 6CH CAN/RS232 16-SOIC Min Qty: 1 Container: Cut Tape 7870
Cut Tape
  • 1 $3.6000
  • 10 $2.7090
  • 25 $2.4864
  • 100 $2.2413
  • 250 $2.1244
  • 500 $2.1022
$2.1022 / $3.6000 Buy Now
DISTI # 296-ISO6763DWRTR-ND
DigiKey DG ISO 5KV 6CH CAN/RS232 16-SOIC Min Qty: 2000 Container: Tape & Reel 6000
Tape & Reel
  • 2,000 $1.9483
  • 4,000 $1.9090
$1.9090 / $1.9483 Buy Now
DISTI # 595-ISO6763DWR
Mouser Electronics Digital Isolators General-purpose six- channel reinforced RoHS: Compliant 73
  • 1 $3.3900
  • 10 $2.5400
  • 25 $2.3300
  • 100 $2.1000
  • 250 $1.9900
  • 500 $1.9600
  • 1,000 $1.8400
  • 2,000 $1.7000
  • 4,000 $1.6800
$1.6800 / $3.3900 Buy Now
DISTI # 595-ISO6763DWR
Mouser Electronics Digital Isolators General-purpose six- channel reinforced RoHS: Compliant 73
  • 1 $3.3900
  • 10 $2.5400
  • 25 $2.3300
  • 100 $2.1000
  • 250 $1.9900
  • 500 $1.9600
  • 1,000 $1.8400
  • 2,000 $1.7000
  • 4,000 $1.6800
$1.6800 / $3.3900 Buy Now
Win Source Electronics GENERAL-PURPOSE SIX-CHANNEL REIN / CAN, RS232, RS485, SPI Digital Isolator 5000Vrms 6 Channel 50Mbps 50kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) 5000
  • 18 $2.8963
  • 43 $2.3764
  • 66 $2.3022
  • 90 $2.2279
  • 117 $2.1536
  • 156 $1.9309
$1.9309 / $2.8963 Buy Now

US Tariff Estimator: ISO6763DWR by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ISO6763DWR
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ISO6763DWR

ISO6763DWR CAD Models

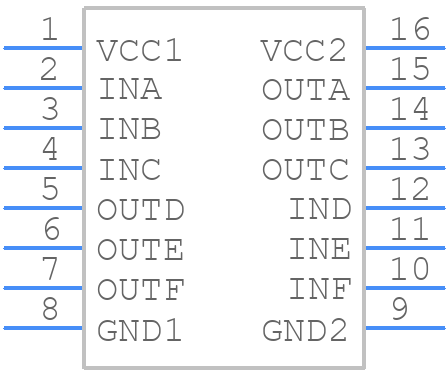

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ISO6763DWR Part Data Attributes

Parametric Data
ISO6763DWR Texas Instruments
Buy Now Datasheet
Compare Parts:
ISO6763DWR Texas Instruments Interface Circuit, CMOS, PDSO16
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
ECCN Code EAR99
HTS Code 8542.39.00.90
Interface IC Type Interface Circuit
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 10.3 Mm
Moisture Sensitivity Level 2
Number of Channels 6
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP16,.4
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Seated Height-Max 2.65 Mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 1.71 V
Supply Voltage-Nom 1.8 V
Surface Mount Yes
Technology Cmos
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 Mm

Alternate Parts for ISO6763DWR

This table gives cross-reference parts and alternative options found for ISO6763DWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO6763DWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ISO6763FDWR Texas Instruments Check for Price Interface Circuit, CMOS, PDSO16 ISO6763DWR vs ISO6763FDWR
XISO6763QDWRQ1 Texas Instruments Check for Price Interface Circuit, CMOS, PDSO16 ISO6763DWR vs XISO6763QDWRQ1
equivalents icon

ISO6763DWR Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the ISO6763DWR is -40°C to 125°C.

  • The ISO6763DWR has a high common-mode transient immunity of ±50 kV/μs, making it suitable for applications with high-voltage transients.

  • The ISO6763DWR supports data rates up to 100 Mbps.

  • Yes, the ISO6763DWR is pin-to-pin compatible with other isolators from Texas Instruments, such as the ISO6761 and ISO6762.

  • The ISO6763DWR has a built-in power-up and power-down sequencing circuitry, which ensures that the device powers up and down safely and reliably.
