Part Details for ISO7830FDW by Texas Instruments
Results Overview of ISO7830FDW by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ISO7830FDW Information
ISO7830FDW by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7830FDW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISO7830FDW-ND
|
DigiKey | DGTL ISOLTR 5.7KV 3CH GP 16-SOIC Min Qty: 160 Container: Tube |
0 Tube |
|
$5.8274 | Buy Now |
|
DISTI #
595-ISO7830FDW
|
Mouser Electronics | Digital Isolators Highest isolation ra ting triple-channel A 595-ISO7830FDWR RoHS: Compliant | 61 |
|
$5.5100 / $9.0300 | Buy Now |
|
|
Quest Components | 4556 |
|
$10.0149 / $15.0224 | Buy Now | |
|
DISTI #
ISO7830FDW
|
TME | IC: interface, digital isolator, 100Mbps, 2.25÷5.5VDC, SMD, SO16 Min Qty: 1 | 0 |
|
$6.5100 / $9.7800 | RFQ |
|
|
Vyrian | Interface Circuit, CMOS, PDSO16 | 8094 |
|
RFQ |
US Tariff Estimator: ISO7830FDW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
ISO7830FDW CAD Models
-
Part Symbol
-
Footprint
-

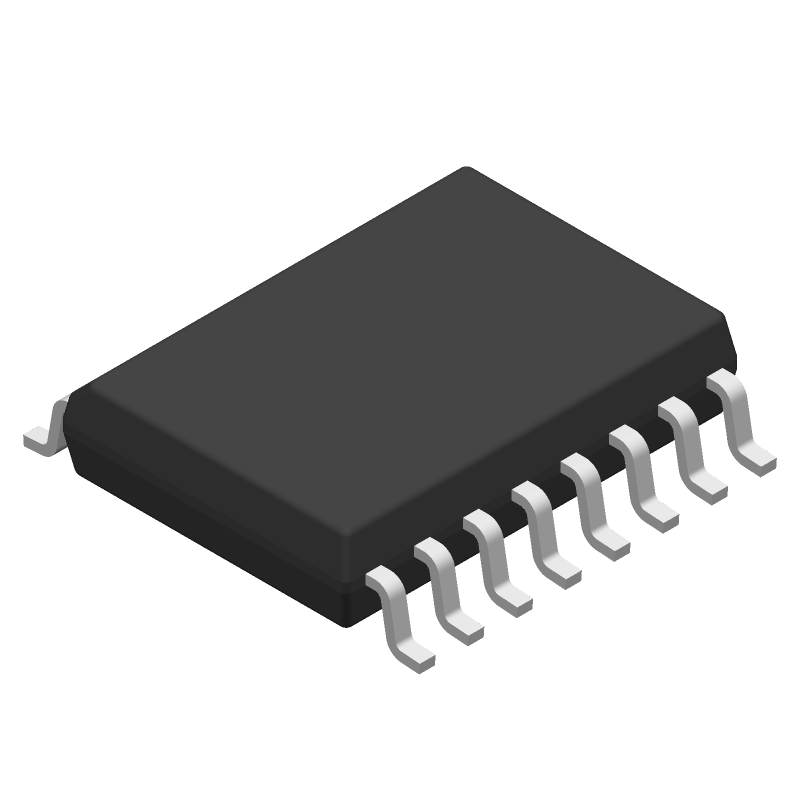

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ISO7830FDW Part Data Attributes
|
|
ISO7830FDW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7830FDW
Texas Instruments
DIGITAL ISOLATOR, CMOS, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Interface IC Type | Digital Isolator | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 3 | |
| Number of Functions | 3 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | Iec 60950-1; Iec 60601-1 | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for ISO7830FDW
This table gives cross-reference parts and alternative options found for ISO7830FDW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7830FDW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
ISO7830FDW Frequently Asked Questions (FAQ)
-
The ISO7830FDW can support data rates up to 100 Mbps, making it suitable for high-speed industrial and automotive applications.
-
The ISO7830FDW has built-in common-mode transient immunity of up to ±100 kV/μs and EMI filters to ensure reliable operation in noisy environments.
-
The typical power consumption of the ISO7830FDW is around 1.5 mA per channel at 1 Mbps, making it suitable for power-constrained applications.
-
Yes, the ISO7830FDW is designed to operate in harsh industrial environments with temperatures ranging from -40°C to 125°C and can withstand vibrations and shocks.
-
The ISO7830FDW uses differential signaling and has built-in error detection and correction mechanisms to ensure signal integrity and reliability.
