L78L08ABUTR by: STMicroelectronics

Positive voltage regulators

Part Details for L78L08ABUTR by STMicroelectronics

Results Overview of L78L08ABUTR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

L78L08ABUTR Information

L78L08ABUTR by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for L78L08ABUTR

Part # Distributor Description Stock Price Buy
DISTI # 58M8379
Newark Ic, V Reg, 8V, Smd, Fixed Output Voltage Nom.:8V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:14V, Input Voltage Max:30V, Product Range:7808 Voltage Regulators, Output Current:100Ma, Output Rohs Compliant: Yes |Stmicroelectronics L78L08ABUTR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1623
  • 1 $0.4770
  • 10 $0.3550
  • 25 $0.3240
  • 50 $0.3080
  • 100 $0.2910
  • 250 $0.2750
  • 500 $0.2650
$0.2650 / $0.4770 Buy Now
DISTI # 45Y5623
Newark Ic, Linear Volt Reg, 8V, Sot-89-3, Fixed Output Voltage Nom.:8V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:14V, Input Voltage Max:30V, Product Range:7808 Voltage Regulators, Output Rohs Compliant: Yes |Stmicroelectronics L78L08ABUTR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 2,500 $0.1680
  • 5,000 $0.1380
  • 10,000 $0.1200
  • 15,000 $0.1100
  • 25,000 $0.0970
$0.0970 / $0.1680 Buy Now
DISTI # L78L08ABUTR
Avnet Americas Standard Regulator Pos 8V 0.1A 4-Pin(3+Tab) SOT-89 T/R - Tape and Reel (Alt: L78L08ABUTR) COO: China RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 7,500 $0.1401
  • 15,000 $0.1394
  • 30,000 $0.1387
  • 60,000 $0.1380
  • 120,000 $0.1373
$0.1373 / $0.1401 Buy Now
STMicroelectronics Positive voltage regulators COO: Singapore RoHS: Compliant Min Qty: 1 9279
  • 1 $0.3900
  • 10 $0.2700
  • 25 $0.2400
  • 100 $0.2100
  • 250 $0.1900
$0.1900 / $0.3900 Buy Now
Bristol Electronics   2399
RFQ
DISTI # L78L08ABUTR
TME IC: voltage regulator, linear,fixed, 8V, 0.1A, SOT89, SMD, L78L Min Qty: 1 14904
  • 1 $0.3800
  • 5 $0.3120
  • 10 $0.2760
  • 25 $0.2380
  • 50 $0.2150
  • 100 $0.1980
  • 125 $0.1930
  • 250 $0.1820
  • 500 $0.1730
  • 2,500 $0.1630
$0.1630 / $0.3800 Buy Now
ComSIT USA POSITIVE VOLTAGE REGULATOR Fixed Positive Standard Regulator, 8VBIPolar, PSSO3 ECCN: EAR99 RoHS: Compliant Stock DE - 17500
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # L78L08ABUTR
IBS Electronics L78L SERIES 8 V 100 MA THREE TERMINAL POSITIVE VOLTAGE LDO REGULATOR - SOT-89 Min Qty: 2500 Package Multiple: 1 2500
  • 2,500 $0.1624
  • 5,000 $0.1596
  • 10,000 $0.1582
  • 12,500 $0.1582
  • 37,500 $0.1540
$0.1540 / $0.1624 Buy Now
DISTI # L78L08ABUTR
Avnet Silica Standard Regulator Pos 8V 01A 4Pin3Tab SOT89 TR (Alt: L78L08ABUTR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Silica - 65000
Buy Now
Chip Stock L78LSeries8V100mAThreeTerminalPositiveVoltageLDORegulator-SOT-89 38500
RFQ
DISTI # L78L08ABUTR
EBV Elektronik Standard Regulator Pos 8V 01A 4Pin3Tab SOT89 TR (Alt: L78L08ABUTR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC REG LDO 8V 0.1A SOT89-3 35000
  • 440 $0.1146
  • 1,065 $0.0941
  • 1,650 $0.0911
  • 2,270 $0.0882
  • 2,935 $0.0853
  • 3,930 $0.0764
$0.0764 / $0.1146 Buy Now

US Tariff Estimator: L78L08ABUTR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

L78L08ABUTR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for L78L08ABUTR

L78L08ABUTR CAD Models

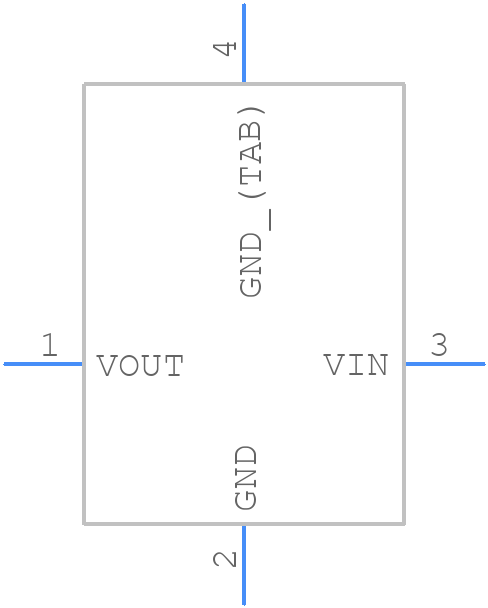

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

L78L08ABUTR Part Data Attributes

Parametric Data
L78L08ABUTR STMicroelectronics
Buy Now Datasheet
Compare Parts:
L78L08ABUTR STMicroelectronics Positive voltage regulators
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOT-89
Package Description Sot 89, 3 Pin
Pin Count 3
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 10 Weeks
Adjustability Fixed
Dropout Voltage1-Nom 1.7 V
Input Voltage Absolute-Max 30 V
Input Voltage-Max 23 V
Input Voltage-Min 10.5 V
JESD-30 Code R-PSSO-F3
Length 4.5 Mm
Line Regulation-Max 0.175%
Load Regulation-Max 0.08%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.07 A
Output Voltage1-Max 8.4 V
Output Voltage1-Min 7.6 V
Output Voltage1-Nom 8 V
Package Body Material Plastic/Epoxy
Package Code SOF
Package Equivalence Code TO-243
Package Shape Rectangular
Package Style Small Outline
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type Fixed Positive Single Output Standard Regulator
Seated Height-Max 1.6 Mm
Surface Mount Yes
Technology Bipolar
Terminal Form Flat
Terminal Pitch 1.495 Mm
Terminal Position Single
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 5%
Width 2.445 Mm

Alternate Parts for L78L08ABUTR

This table gives cross-reference parts and alternative options found for L78L08ABUTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L78L08ABUTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
L78L08ABU STMicroelectronics Check for Price 8V FIXED POSITIVE REGULATOR, PSSO3, SOT-89, 3 PIN L78L08ABUTR vs L78L08ABU
Part Number Manufacturer Composite Price Description Compare
MC78L08ACPREG onsemi $0.2137 Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 8.0 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL L78L08ABUTR vs MC78L08ACPREG
LM78L08ACZ Microsemi Corporation (now Microchip) Check for Price Fixed Positive Standard Regulator, 8VPBCY3, TO-92 L78L08ABUTR vs LM78L08ACZ
HA178L08PA-TZ Renesas Electronics Corporation Check for Price 8V FIXED POSITIVE REGULATOR, BCY3, SC-51, TO-92M, 3 PIN L78L08ABUTR vs HA178L08PA-TZ
MC78L08ABPRA onsemi Check for Price 8V FIXED POSITIVE REGULATOR, PBCY3, TO-92, 3 PIN L78L08ABUTR vs MC78L08ABPRA
MC78L08ACHX onsemi Check for Price Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive, 4000-REEL L78L08ABUTR vs MC78L08ACHX
L78L08CZTR STMicroelectronics Check for Price 8V FIXED POSITIVE REGULATOR, BCY3, ROHS COMPLIANT, TO-92, 3 PIN L78L08ABUTR vs L78L08CZTR
MC78L08ACPRM onsemi Check for Price 8V FIXED POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN L78L08ABUTR vs MC78L08ACPRM
KA78L08AM Fairchild Semiconductor Corporation Check for Price Fixed Positive Standard Regulator, 8VBIPolar, PSSO3, SOT-89, 3 PIN L78L08ABUTR vs KA78L08AM
ZSR800GTA Diodes Incorporated Check for Price Fixed Positive Standard Regulator, 8VBIPolar, PDSO4, SOT-223, 4 PIN L78L08ABUTR vs ZSR800GTA
L78L08ACZ-TR STMicroelectronics Check for Price 8V FIXED POSITIVE REGULATOR, BCY3, ROHS COMPLIANT, TO-92, 3 PIN L78L08ABUTR vs L78L08ACZ-TR
equivalents icon

L78L08ABUTR Related Parts

L78L08ABUTR Frequently Asked Questions (FAQ)

  • The maximum input voltage for the L78L08ABUTR is 35V, but it's recommended to keep it below 30V for reliable operation.

  • To ensure stability, a minimum output capacitance of 2.2uF is recommended, and the capacitor should be placed as close to the output pin as possible.

  • The L78L08ABUTR can supply up to 100mA of output current, but it's recommended to derate the current based on the ambient temperature and input voltage.

  • To prevent overheating, ensure good airflow around the device, and consider adding a heat sink if the device will be operating at high temperatures or with high input voltages.

  • Yes, the L78L08ABUTR is suitable for high-reliability applications, but it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
