Part Details for L9680TR by STMicroelectronics
Results Overview of L9680TR by STMicroelectronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for L9680TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
511-L9680TR
|
Mouser Electronics | Power Management Specialized - PMIC Automotive advanced airbag IC for mid/high end applications RoHS: Compliant | 7925 |
|
$7.7100 / $13.2500 | Buy Now |
|
|
STMicroelectronics | Automotive advanced airbag IC for mid/high end applications COO: Italy Min Qty: 1 | 7925 |
|
$8.3200 / $13.2500 | Buy Now |
|
|
Chip Stock | Automotive advanced airbag IC for mid/high end applications, TQFP-100, RoHS | 3300 |
|
RFQ | |
|
|
Win Source Electronics | IC INTERFACE SPECIALIZED 100TQFP / Automotive Interface 100-TQFP (14x14) | 2090 |
|
$21.7021 / $32.5531 | Buy Now |
US Tariff Estimator: L9680TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
L9680TR CAD Models
-

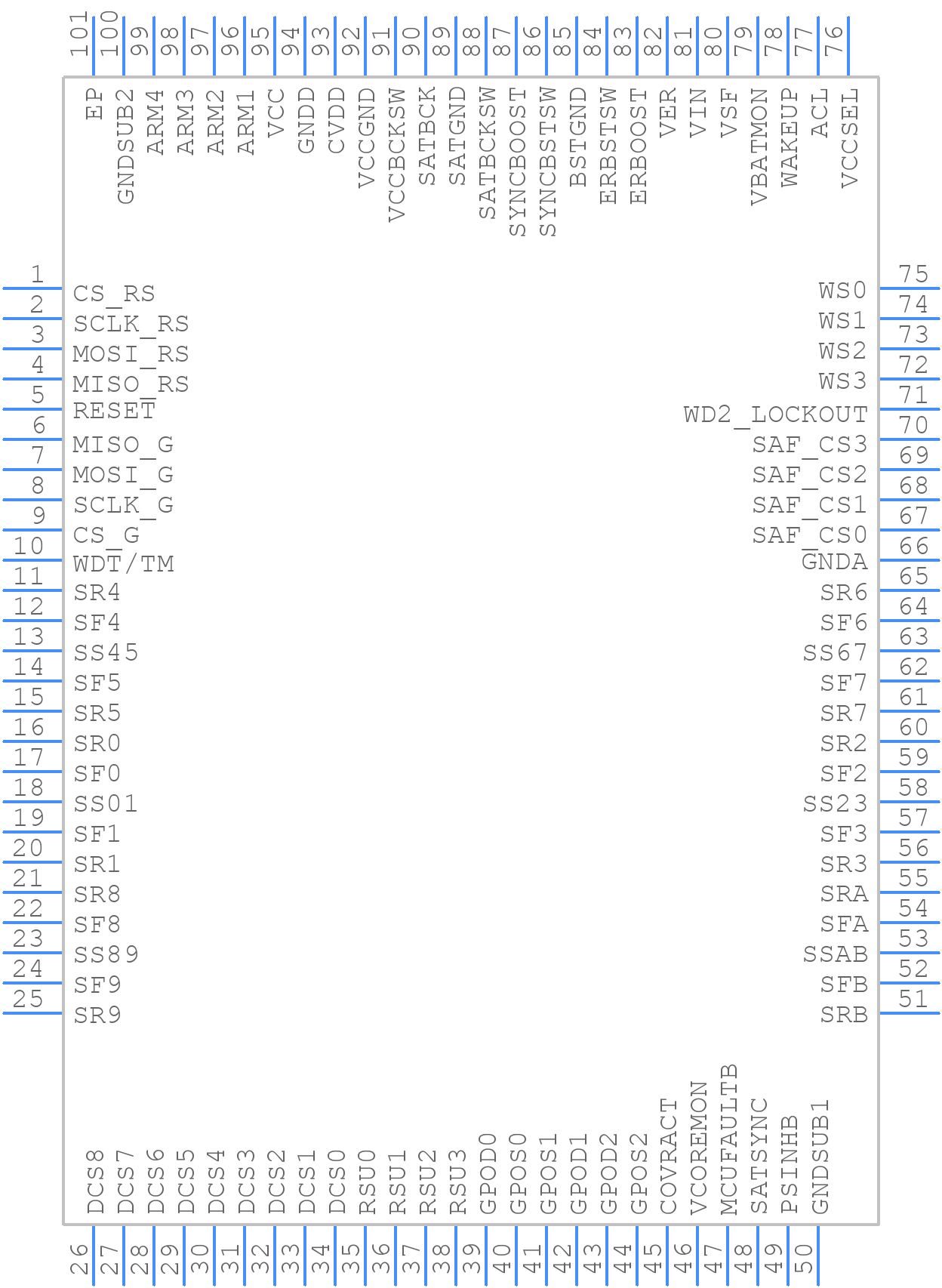

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L9680TR Part Data Attributes
|
|
L9680TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L9680TR
STMicroelectronics
Consumer Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 36 Weeks | |
| Consumer IC Type | Consumer Circuit | |
| JESD-30 Code | S-PQFP-G100 | |
| Length | 14 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 100 | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Width | 14 Mm |
L9680TR Frequently Asked Questions (FAQ)
-
A good PCB layout for the L9680TR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with a value between 1uF to 10uF is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with a value between 10uF to 22uF is recommended.
-
The L9680TR is rated for an ambient temperature range of -40°C to 150°C. However, the device can operate up to 125°C with a derated output current.
-
The L9680TR has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.
-
The recommended input voltage range for the L9680TR is 4.5V to 18V. However, the device can operate with an input voltage as low as 3.5V, but with reduced performance.
