LED5000PHR Information
LED5000PHR by STMicroelectronics is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LED5000PHR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC7415
|
Newark | Led Driver, Buck/Buck-Boost, Hsop-8, |Stmicroelectronics LED5000PHR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.2900 / $2.5500 | Buy Now |
|
DISTI #
18AC7415RL
|
Newark | Led Driver, Buck/Buck-Boost, Hsop-8, |Stmicroelectronics LED5000PHR RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.2900 / $1.5500 | Buy Now |
|
DISTI #
497-13609-6-ND
|
DigiKey | IC LED DRIVER RGLTR PWM 3A 8HSOP Min Qty: 1 Container: Digi-Reel |
0 Digi-Reel® |
|
$1.4546 / $2.5900 | Buy Now |
|
DISTI #
497-13609-1-ND
|
DigiKey | IC LED DRIVER RGLTR PWM 3A 8HSOP Min Qty: 1 Container: Cut Tape |
0 Cut Tape |
|
$1.4546 / $2.5900 | Buy Now |
|
DISTI #
497-13609-2-ND
|
DigiKey | IC LED DRIVER RGLTR PWM 3A 8HSOP Min Qty: 2500 Container: Tape & Reel |
0 Tape & Reel |
|
$1.3086 / $1.3499 | Buy Now |
|
DISTI #
511-LED5000PHR
|
Mouser Electronics | Current & Power Monitors & Regulators 3A monolithic Conv 850kHz Synch RoHS: Compliant | 106 |
|
$1.3500 / $2.6500 | Buy Now |
|
|
STMicroelectronics | 3 A monolithic step-down current source with dimming capability COO: Italy Min Qty: 1 | 146 |
|
$1.4400 / $2.6000 | Buy Now |
|
|
Future Electronics | LED5000 Series 5.5 - 48 V 850 kH 3 A Step-Down Current Source w/ Dimming -HSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 30 Weeks Container: Reel | 0Reel |
|
$1.1900 | Buy Now |
|
DISTI #
LED5000PHR
|
Avnet Americas | LED Driver DC/DC, Buck, Buck-Boost, Isolated, 5.5 V to 48 V, 3 A, 52.3 V,850 kHz, 8 Pins, HSOP-EP - Tape and Reel (Alt: LED5000PHR) COO: Italy RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 30 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.1318 / $1.2034 | Buy Now |
|
DISTI #
LED5000PHR
|
TME | Driver, DC/DC converter, 3A, HSOP8, SMD, 850kHz, Topology: buck Min Qty: 2500 | 0 |
|
$1.5700 | RFQ |
US Tariff Estimator: LED5000PHR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LED5000PHR CAD Models
-

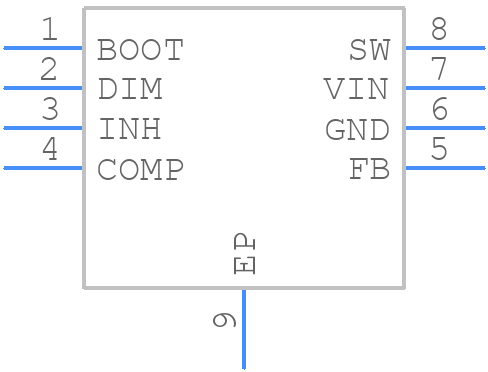

Part Symbol
-

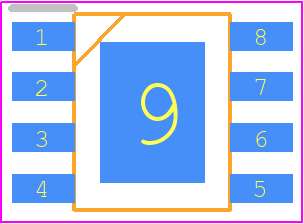

Footprint
-

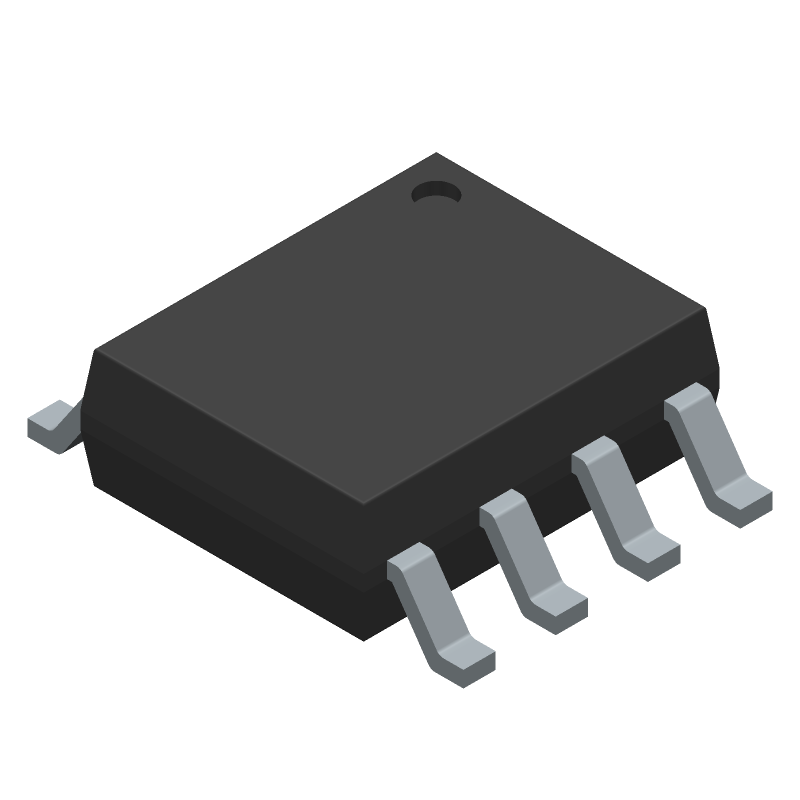

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LED5000PHR Part Data Attributes
|
|
LED5000PHR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LED5000PHR
STMicroelectronics
LED Driver, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hsop-8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 18 Weeks | |
| Data Input Mode | Serial | |
| Input Characteristics | Standard | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Multiplexed Display Capability | No | |
| Number of Functions | 1 | |
| Number of Segments | 6 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Constant-Current | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max | 48 V | |
| Supply Voltage-Min | 5.5 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm |
