LM2902D Information
LM2902D by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2902D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85989773
|
Verical | Op Amp Quad High Gain Amplifier ±13V/26V 14-Pin SOIC Tube RoHS: Compliant Min Qty: 578 Package Multiple: 1 Date Code: 0101 | Americas - 239635 |
|
$0.4474 / $0.6495 | Buy Now |
|
|
Quest Components | IC,OP-AMP,QUAD,BIPOLAR,SOP,14PIN,PLASTIC | 57 |
|
$0.1800 / $0.2700 | Buy Now |
|
|
Quest Components | IC,OP-AMP,QUAD,BIPOLAR,SOP,14PIN,PLASTIC | 15 |
|
$0.4200 / $0.5250 | Buy Now |
|
|
Quest Components | IC,OP-AMP,QUAD,BIPOLAR,SOP,14PIN,PLASTIC | 1 |
|
$0.9800 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14 RoHS: Compliant Status: Obsolete Min Qty: 1 | 240299 |
|
$0.3579 / $0.5773 | Buy Now |
|
DISTI #
85989773
|
Verical | Op Amp Quad High Gain Amplifier ±13V/26V 14-Pin SOIC Tube RoHS: Compliant Min Qty: 578 Package Multiple: 1 Date Code: 0101 | Americas - 239635 |
|
$0.4474 / $0.6495 | Buy Now |
|
DISTI #
LM2902D-TI
|
TME | IC: operational amplifier, 1.2MHz, Ch: 4, ±1.5÷13VDC,3÷26VDC, SO14 Min Qty: 3 | 30 |
|
$0.3880 / $0.4770 | Buy Now |
|
DISTI #
85989773
|
Verical | Op Amp Quad High Gain Amplifier ±13V/26V 14-Pin SOIC Tube RoHS: Compliant Min Qty: 578 Package Multiple: 1 Date Code: 0101 | Americas - 239635 |
|
$0.4474 / $0.6495 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 1023 |
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 114 |
|
$1.0000 / $1.5400 | Buy Now |
US Tariff Estimator: LM2902D by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2902D
LM2902D CAD Models
-

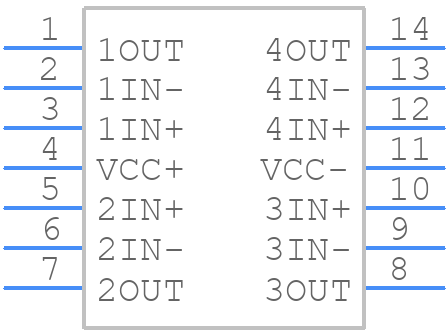

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM2902D Part Data Attributes
|
|
LM2902D
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2902D
Texas Instruments
Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 1989-03-01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 50 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.3 µA | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Out Line | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 0.5 V/Us | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 26 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 3.9 Mm |
Alternate Parts for LM2902D
This table gives cross-reference parts and alternative options found for LM2902D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2902D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2902DRG3 | Texas Instruments | $0.1259 | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14 | LM2902D vs LM2902DRG3 |
| LM2902KAVQDR | Texas Instruments | $0.2931 | Operational Amplifier, 4 Func, 2000uV Offset-Max, BIPolar, PDSO14 | LM2902D vs LM2902KAVQDR |
| LM2902KAVQDR | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 10000uV OFFSET-MAX, 1.2MHz BAND WIDTH, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | LM2902D vs LM2902KAVQDR |
| LM2902DRE4 | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 10000uV OFFSET-MAX, 1.2MHz BAND WIDTH, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | LM2902D vs LM2902DRE4 |
LM2902D Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM2902D is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
While the LM2902D is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth.
-
To ensure stability, make sure to follow proper compensation techniques, such as adding a capacitor in the feedback loop or using a resistor in series with the feedback capacitor. Additionally, ensure that the gain and phase margins are sufficient to prevent oscillations.
-
The input impedance of the LM2902D is typically around 2MΩ, but it can vary depending on the specific application and operating conditions.
-
Yes, the LM2902D can be used in a single-supply configuration, but it's essential to ensure that the input common-mode voltage is within the specified range to maintain proper operation.
