LM2904PT Information
LM2904PT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2904PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M0355
|
Newark | Opamp, 1.1Mhz, -40 To 85Deg C, No. Of Channels:2Channels, Gain Bandwidth Product:1.1Mhz, Supply Voltage Range:3V To 30V, Ic Case/Package:Tssop, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:-, Product Range:- Rohs Compliant: Yes |Stmicroelectronics LM2904PT RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2967 |
|
$0.2220 / $0.3500 | Buy Now |
|
DISTI #
497-4046-1-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8TSSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
28411 In Stock |
|
$0.1352 / $0.3500 | Buy Now |
|
DISTI #
LM2904PT
|
Avnet Americas | Operational Amplifier, Dual, 2 Channels, 1.1 MHz, 0.6 V/?s, 3V to 30V, TSSOP, 8 Pins - Tape and Reel (Alt: LM2904PT) COO: China RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1200 / $0.1225 | Buy Now |
|
DISTI #
LM2904PT
|
Avnet Americas | Operational Amplifier, Dual, 2 Channels, 1.1 MHz, 0.6 V/?s, 3V to 30V, TSSOP, 8 Pins - Tape and Reel (Alt: LM2904PT) COO: China RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1200 / $0.1225 | Buy Now |
|
DISTI #
511-LM2904P
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Low Power RoHS: Compliant | 3906 |
|
$0.1220 / $0.3500 | Buy Now |
|
|
STMicroelectronics | Low power, bipolar op-amp COO: Singapore RoHS: Compliant Min Qty: 1 | 3906 |
|
$0.1600 / $0.3400 | Buy Now |
|
|
Future Electronics | LM2904 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks Container: Reel | 32000Reel |
|
$0.1060 / $0.1100 | Buy Now |
|
|
Future Electronics | LM2904 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks Container: Reel | 8000Reel |
|
$0.1060 / $0.1100 | Buy Now |
|
DISTI #
76465682
|
Verical | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 129 Package Multiple: 1 | Americas - 3835 |
|
$0.3150 | Buy Now |
|
|
Bristol Electronics | 3995 |
|
RFQ |
US Tariff Estimator: LM2904PT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2904PT
LM2904PT CAD Models
-

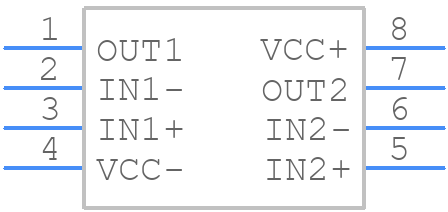

Part Symbol
-

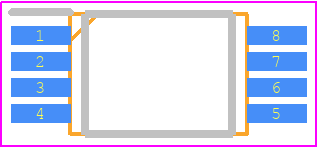

Footprint
-

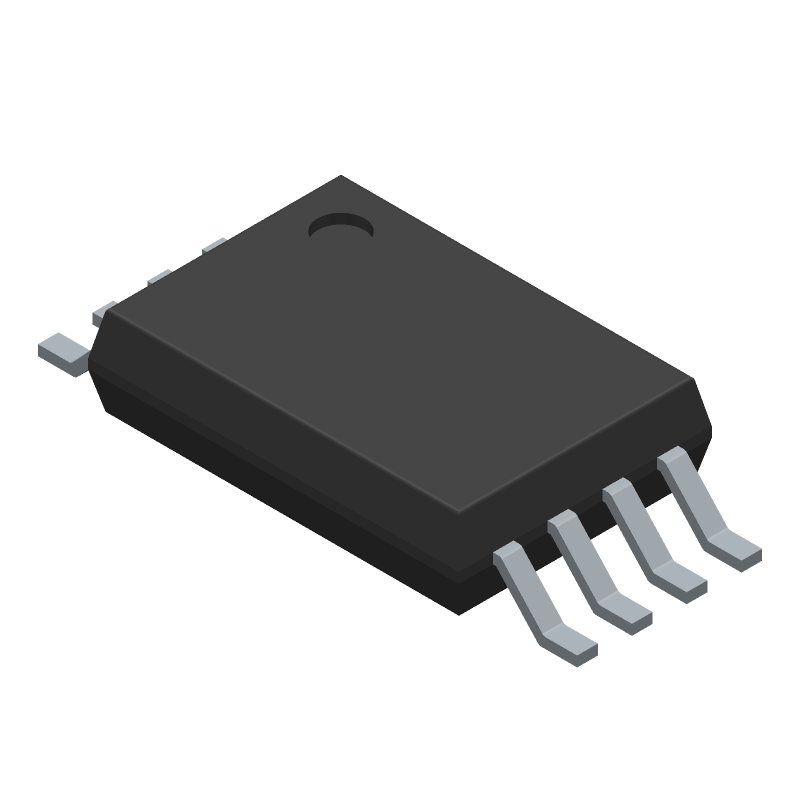

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM2904PT Part Data Attributes
|
|
LM2904PT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM2904PT
STMicroelectronics
Operational Amplifier, 8 Func, 9000uV Offset-Max, BIPolar, PDSO2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Tssop-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.2 µA | |
| Bias Current-Max (IIB) @25C | 0.15 µA | |
| Common-mode Reject Ratio-Min | 70 Db | |
| Common-mode Reject Ratio-Nom | 85 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 9000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | 32 V | |
| Number of Functions | 8 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Min | 0.3 V/Us | |
| Slew Rate-Nom | 0.6 V/Us | |
| Supply Current-Max | 2 Ma | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1100 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 3 Mm |
