LM2904WYPT Information
LM2904WYPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2904WYPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-12004-1-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8TSSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3525 In Stock |
|
$0.2319 / $0.6100 | Buy Now |
|
DISTI #
LM2904WYPT
|
Avnet Americas | Operational Amplifier, 2 Channels, 1.1 MHz, 0.6 V/?s, 3V to 30V, TSSOP, 8 Pins - Tape and Reel (Alt: LM2904WYPT) COO: Singapore RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.2088 / $0.2220 | Buy Now |
|
DISTI #
LM2904WYPT
|
Avnet Americas | Operational Amplifier, 2 Channels, 1.1 MHz, 0.6 V/?s, 3V to 30V, TSSOP, 8 Pins - Tape and Reel (Alt: LM2904WYPT) COO: Singapore RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.2088 / $0.2220 | Buy Now |
|
DISTI #
511-LM2904WYPT
|
Mouser Electronics | Operational Amplifiers - Op Amps Low Pwr Dual OP Amp 100dB 1.1MHz RoHS: Compliant | 7417 |
|
$0.2300 / $0.4400 | Buy Now |
|
DISTI #
V36:1790_06553354
|
Arrow Electronics | Op Amp Dual Low Power Amplifier ±15V/30V Automotive AEC-Q100 8-Pin TSSOP T/R COO: China RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks Date Code: 2443 | Americas - 16000 |
|
$0.2051 / $0.2218 | Buy Now |
|
DISTI #
V72:2272_17642417
|
Arrow Electronics | Op Amp Dual Low Power Amplifier ±15V/30V Automotive AEC-Q100 8-Pin TSSOP T/R COO: Morocco RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 38 Weeks Date Code: 2123 Container: Cut Strips | Americas - 1 |
|
$0.2240 | Buy Now |
|
|
STMicroelectronics | Low Power Dual Operational Amplifier COO: Singapore RoHS: Compliant Min Qty: 1 | 7417 |
|
$0.2700 / $0.4300 | Buy Now |
|
|
Future Electronics | LM Series 0.6 V/us 30 V SMT Low-Power Dual Operational Amplifier - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 12000 Package Multiple: 4000 Lead time: 8 Weeks Container: Reel | 0Reel |
|
$0.2200 / $0.2250 | Buy Now |
|
DISTI #
86940817
|
Verical | Op Amp Dual Low Power Amplifier ±15V/30V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2443 | Americas - 16000 |
|
$0.2051 | Buy Now |
|
|
Bristol Electronics | Min Qty: 8 | 3330 |
|
$0.1740 / $0.6694 | Buy Now |
US Tariff Estimator: LM2904WYPT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2904WYPT
LM2904WYPT CAD Models
-

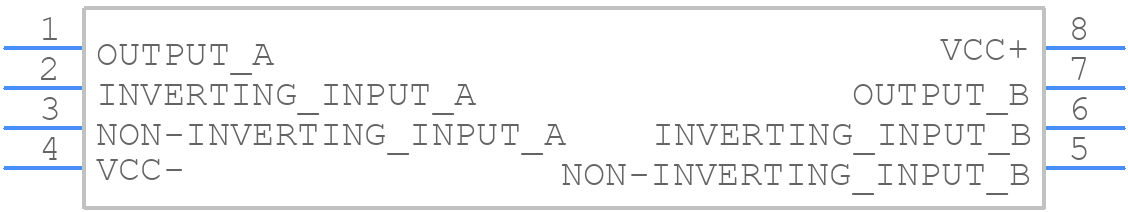

Part Symbol
-

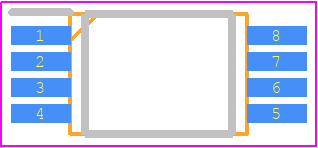

Footprint
-
