LM2931AZ-5.0G Information
LM2931AZ-5.0G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM2931AZ-5.0/LFT1 | Texas Instruments | Series Low Dropout Regulators 3-TO-92 -40 to 85 | |
| LM2931AZ-5.0/NOPB | Texas Instruments | Series Low Dropout Regulators 3-TO-92 -40 to 85 | |
| LM2931AZ-5.0/LFT3 | Texas Instruments | Series Low Dropout Regulators 3-TO-92 -40 to 85 |
Price & Stock for LM2931AZ-5.0G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71J5003
|
Newark | Ldo Voltage Regulator, 5V, 0.1A, To-92-3, Output Type:Fixed, Input Voltage Min:14V, Input Voltage Max:40V, No. Of Outputs:1Outputs, Output Voltage - Nom:5V, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output Rohs Compliant: Yes |Onsemi LM2931AZ-5.0G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$0.1750 | Buy Now |
|
DISTI #
71J5003
|
Avnet Americas | - Bulk (Alt: 71J5003) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 2 Partner Stock |
|
$0.2790 / $0.3150 | Buy Now |
|
DISTI #
LM2931AZ-5.0G
|
Avnet Americas | - Bulk (Alt: LM2931AZ-5.0G) COO: Czechia RoHS: Compliant Min Qty: 6000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1795 / $0.1833 | Buy Now |
|
DISTI #
LM2931AZ-5.0G
|
TME | IC: voltage regulator, LDO,linear,fixed, 5V, 0.1A, TO92, THT, bulk Min Qty: 1 | 229 |
|
$0.2460 / $0.4600 | Buy Now |
|
DISTI #
LM2931AZ-5.0G
|
Avnet Asia | (Alt: LM2931AZ-5.0G) RoHS: Compliant Min Qty: 6000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
LM2931AZ-5.0G
|
Avnet Silica | (Alt: LM2931AZ-5.0G) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
LM2931AZ-5.0G
|
EBV Elektronik | (Alt: LM2931AZ-5.0G) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 13071 |
|
RFQ | |
|
|
LCSC | 90dB(120Hz) Positive Fixed 5V TO-92 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 50 |
|
$0.3468 / $0.6750 | Buy Now |
US Tariff Estimator: LM2931AZ-5.0G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2931AZ-5.0G
LM2931AZ-5.0G CAD Models
-

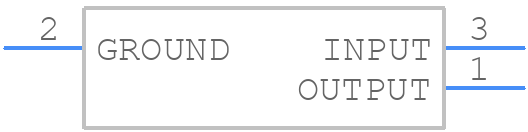

Part Symbol
-
Footprint
-

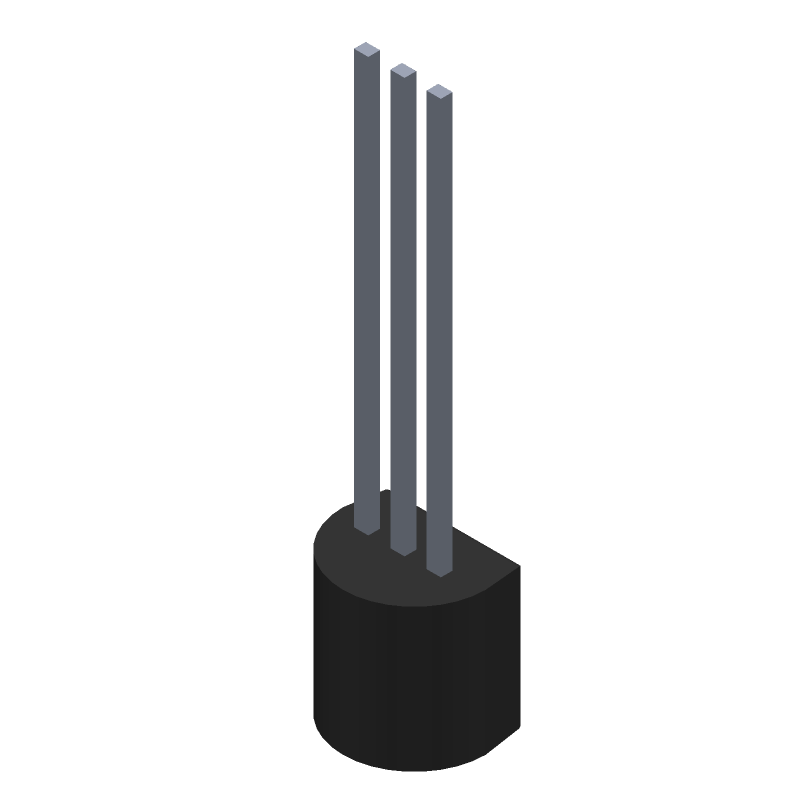

3D Model
