LM324BIPWR Information
LM324BIPWR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM324BIPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM324BIPWRCT-ND
|
DigiKey | QUAD, 36-V, 1.2-MHZ, 3-MV OFFSET Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
16854 In Stock |
|
$0.1031 / $0.2700 | Buy Now |
|
DISTI #
595-LM324BIPWR
|
Mouser Electronics | Operational Amplifiers - Op Amps Quad 36-V 1.2-MHz 3- mV offset voltage RoHS: Compliant | 16288 |
|
$0.0940 / $0.2400 | Buy Now |
|
|
Chip Stock | Quad, 36V 1.2MHz 3mV offset voltage operational amplifier 14-TSSOP -40 to 85 | 73980 |
|
RFQ | |
|
|
LCSC | 4 3mV 500V/ms 80dB 35nA 1.2MHz 240uA TSSOP-14 Instrumentation Op Amps Buffer Amps RoHS | 140 |
|
$0.1107 / $0.1854 | Buy Now |
US Tariff Estimator: LM324BIPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM324BIPWR
LM324BIPWR CAD Models
-

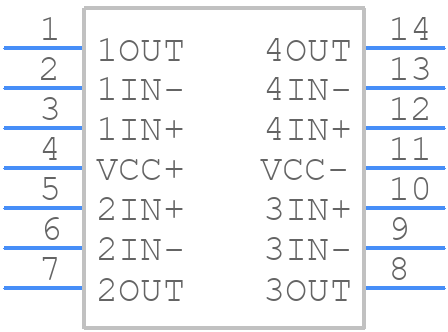

Part Symbol
-
