LM324KPW Information
LM324KPW by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM324KPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14 RoHS: Compliant Status: Obsolete Min Qty: 1 | 2170 |
|
$0.4305 / $0.6944 | Buy Now |
US Tariff Estimator: LM324KPW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM324KPW
LM324KPW CAD Models
-

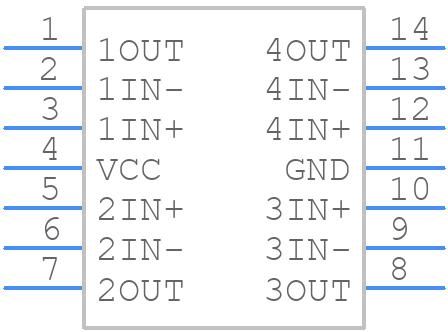

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM324KPW Part Data Attributes
|
|
LM324KPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM324KPW
Texas Instruments
Quad, 30-V 1.2-MHz improved ESD (2 kV) operational amplifier 14-TSSOP 0 to 70
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 1989-03-01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 65 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.15 µA | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Nom | 0.5 V/Us | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 4.4 Mm |
Alternate Parts for LM324KPW
This table gives cross-reference parts and alternative options found for LM324KPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM324KPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM324PWR | Texas Instruments | $0.1058 | Quad 30-V 1.2-MHz operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWR |
| LM324PWRG3 | Texas Instruments | $0.1180 | Quad 30-V 1.2-MHz operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWRG3 |
| LM324KPWE4 | Texas Instruments | Check for Price | QUAD OP-AMP, 9000uV OFFSET-MAX, 1.2MHz BAND WIDTH, PDSO14, GREEN, PLASTIC, TSSOP-14 | LM324KPW vs LM324KPWE4 |
| LM324KPWR | Texas Instruments | Check for Price | Quad, 30-V 1.2-MHz improved ESD (2 kV) operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324KPWR |
| LM324PWE4 | Texas Instruments | Check for Price | Quadruple Operational Amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWE4 |
| LM324PWRG4 | Texas Instruments | Check for Price | Quad 30-V 1.2-MHz operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWRG4 |
| LM324PWG4 | Texas Instruments | Check for Price | Quadruple Operational Amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWG4 |
| LM324PWR | ROHM Semiconductor | Check for Price | Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDSO14, ROHS COMPLIANT, TSSOP-14 | LM324KPW vs LM324PWR |
| LM324PWRE4 | Texas Instruments | Check for Price | Quad 30-V 1.2-MHz operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PWRE4 |
| LM324PW | Texas Instruments | Check for Price | Quad 30-V 1.2-MHz operational amplifier 14-TSSOP 0 to 70 | LM324KPW vs LM324PW |
LM324KPW Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM324KPW is 670mW at 25°C free-air temperature, and it decreases as the temperature increases.
-
While the LM324KPW can be used as a comparator, it's not the best choice due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (1MHz). A dedicated comparator like the LM339 or LM2901 would be a better option.
-
To ensure stability, make sure to add a capacitor (typically 10-100nF) between the output and the inverting input to prevent oscillations. Additionally, ensure that the feedback loop has a gain of less than 1 at the frequency of interest.
-
The input impedance of the LM324KPW is typically around 2MΩ, but it can vary depending on the specific application and operating conditions.
-
Yes, the LM324KPW can be used in a single-supply configuration, but you'll need to ensure that the input signals are referenced to the midpoint of the supply voltage. You may also need to add a voltage divider or other circuitry to set the output voltage to the desired level.
