LM3410XMYE/NOPB Information
LM3410XMYE/NOPB by Texas Instruments is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LM3410XMYE/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM3410XMYE/NOPBCT-ND
|
DigiKey | IC LED DRV RGLTR PWM 8HVSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
520 In Stock |
|
$1.4229 / $2.7800 | Buy Now |
|
DISTI #
926-LM3410XMYE/NOPB
|
Mouser Electronics | LED Lighting Driver ICs 525kHz/1.6MHz const ant current boost an A 926-LM3410XMY/NOPB RoHS: Compliant | 412 |
|
$1.4300 / $2.7900 | Buy Now |
|
DISTI #
85994598
|
Verical | LED Driver 5 Segment 8-Pin HVSSOP EP T/R RoHS: Compliant Min Qty: 226 Package Multiple: 1 Date Code: 1201 | Americas - 17466 |
|
$1.4000 / $1.6625 | Buy Now |
|
|
Rochester Electronics | LED Driver, 5-Segment, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 17466 |
|
$1.1200 / $1.4000 | Buy Now |
|
DISTI #
LM3410XMYE/NOPB
|
TME | IC: driver, boost,SEPIC, LED driver, HVSSOP8, 2.8A, 3÷24V, Ch: 1 Min Qty: 1 | 0 |
|
$1.9800 / $2.5400 | RFQ |
US Tariff Estimator: LM3410XMYE/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM3410XMYE/NOPB
LM3410XMYE/NOPB CAD Models
-

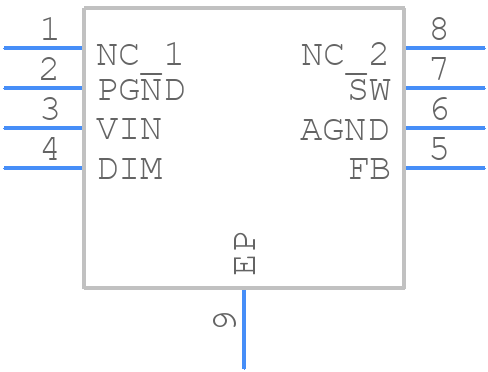

Part Symbol
-
Footprint
-

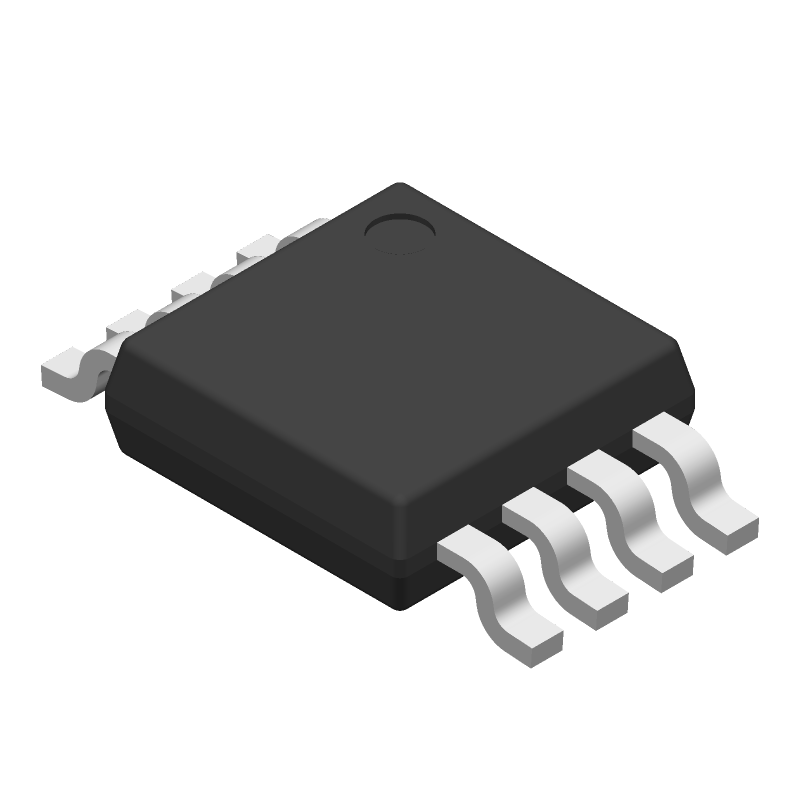

3D Model
