LM3880QMF-1AD/NOPB Information
LM3880QMF-1AD/NOPB by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LM3880QMF-1AD/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-LM3880QMF-1AD/NOPB-ND
|
DigiKey | IC PWR SUPPLY SEQUENCER SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
17209 In Stock |
|
$1.2700 | Buy Now |
|
DISTI #
296-LM3880QMF-1AD/NOPBCT-ND
|
DigiKey | IC PWR SUPPLY SEQUENCER SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
991 In Stock |
|
$0.8053 / $1.6800 | Buy Now |
|
DISTI #
926-LM3880QMF1ADNOPB
|
Mouser Electronics | Supervisory Circuits Automotive grade 3 r ail simple power seq A 926-LM3880QMFE1ADNPB RoHS: Compliant | 1516 |
|
$0.8200 / $1.6800 | Buy Now |
|
DISTI #
85997670
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1701 | Americas - 15000 |
|
$0.7905 / $1.2750 | Buy Now |
|
DISTI #
85997853
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1401 | Americas - 2000 |
|
$0.7905 / $1.2750 | Buy Now |
|
|
Rochester Electronics | Analog Circuit, 1 Func, 3 Channel, CMOS, PDSO6 RoHS: Compliant Status: Active Min Qty: 1 | 17209 |
|
$0.6324 / $1.0200 | Buy Now |
|
DISTI #
85997670
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1701 | Americas - 15000 |
|
$0.7905 / $1.2750 | Buy Now |
|
DISTI #
85997853
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1401 | Americas - 2000 |
|
$0.7905 / $1.2750 | Buy Now |
|
DISTI #
85997670
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1701 | Americas - 15000 |
|
$0.7905 / $1.2750 | Buy Now |
|
DISTI #
85997853
|
Verical | Processor Supervisor 3 Open Drain Automotive 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1401 | Americas - 2000 |
|
$0.7905 / $1.2750 | Buy Now |
US Tariff Estimator: LM3880QMF-1AD/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM3880QMF-1AD/NOPB
LM3880QMF-1AD/NOPB CAD Models
-

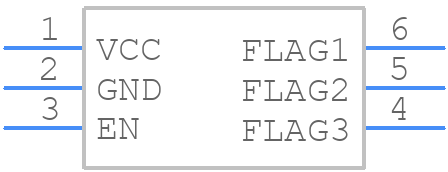

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM3880QMF-1AD/NOPB Part Data Attributes
|
|
LM3880QMF-1AD/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM3880QMF-1AD/NOPB
Texas Instruments
Automotive grade 3 rail simple power sequencer with fixed time delay 6-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Lssop, Tsop6,.11,37 | |
| Pin Count | 6 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 Mm | |
| Supply Current-Max (Isup) | 0.08 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 Mm |
