Part Details for LMR23630AFQDDAQ1 by Texas Instruments
Results Overview of LMR23630AFQDDAQ1 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LMR23630AFQDDAQ1 Information
LMR23630AFQDDAQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMR23630AFQDDAQ1 | Texas Instruments | Automotive Qualified SIMPLE SWITCHER® 4V to 36V,3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 |
Price & Stock for LMR23630AFQDDAQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LMR23630AFQDDAQ1
|
TME | PMIC, DC/DC converter, Uin: 4÷36VDC, Uout: 1÷28VDC, 3A, HSOP8, SMD Min Qty: 1 | 0 |
|
$3.6700 / $5.0600 | RFQ |
|
|
Chip Stock | ICREGBUCKADJ3A8SOPWR", BuckSwitchingRegulatorICPositiveAdjustable1V1Output3A8-PowerSOIC(0.154", ", ,... | 7100 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK ADJUSTABLE 3A 8SOPWR | 5600 |
|
$3.7645 / $5.6467 | Buy Now |
US Tariff Estimator: LMR23630AFQDDAQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMR23630AFQDDAQ1
LMR23630AFQDDAQ1 CAD Models
-

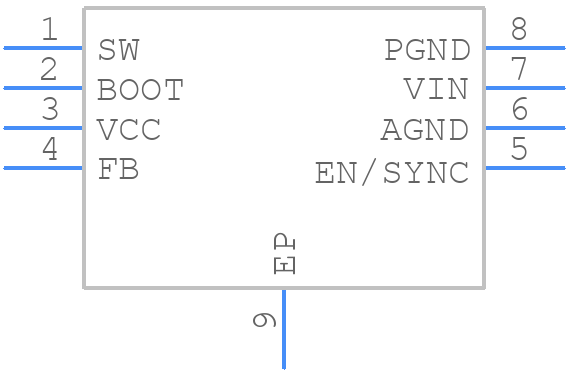

Part Symbol
-

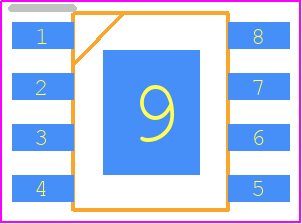

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LMR23630AFQDDAQ1 Part Data Attributes
|
|
LMR23630AFQDDAQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMR23630AFQDDAQ1
Texas Instruments
Automotive Qualified SIMPLE SWITCHER® 4V to 36V,3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HLSOP, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2016-12-10 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | PFM TECHNIQUE ALSO USED | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3 A | |
| Output Voltage-Max | 34 V | |
| Output Voltage-Min | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.7 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2200 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for LMR23630AFQDDAQ1
This table gives cross-reference parts and alternative options found for LMR23630AFQDDAQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMR23630AFQDDAQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMR23630AFDDAR | Texas Instruments | $1.8543 | SIMPLE SWITCHER®, 36V 3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 | LMR23630AFQDDAQ1 vs LMR23630AFDDAR |
| LMR23630ADDAR | Texas Instruments | $2.0376 | SIMPLE SWITCHER®, 36V 3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 | LMR23630AFQDDAQ1 vs LMR23630ADDAR |
| LMR23630AQDDARQ1 | Texas Instruments | $2.1854 | Automotive Qualified SIMPLE SWITCHER® 4V to 36V,3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 | LMR23630AFQDDAQ1 vs LMR23630AQDDARQ1 |
| LMR23630AFQDDARQ1 | Texas Instruments | $2.1854 | Automotive Qualified SIMPLE SWITCHER® 4V to 36V,3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 | LMR23630AFQDDAQ1 vs LMR23630AFQDDARQ1 |
| LMR23630ADDA | Texas Instruments | $3.7245 | SIMPLE SWITCHER®, 36V 3A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125 | LMR23630AFQDDAQ1 vs LMR23630ADDA |
LMR23630AFQDDAQ1 Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to optimize thermal performance.
-
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor's ESR is less than 1 ohm. Additionally, use a low-ESR input capacitor and keep the input and output capacitors close to the device.
-
The maximum input voltage that can be applied to the LMR23630AFQDDAQ1 is 42V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance and reliability.
-
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor's ESR and the switching frequency, while the output noise is dependent on the switching frequency and the input voltage.
-
A low-ESR ceramic or film capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low ESR to minimize voltage drops and ensure stable operation.
