LMV324IYPT Information
LMV324IYPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV324IYPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9126
|
Newark | Tssop14/A°/I/P/O/P Rail-To-Rail Op-Amp, No. Of Amplifiers:4 Amplifier, Bandwidth:1Mhz, Slew Rate:0.45V/Μs, Supply Voltage Range:2.7V To 6V, Amplifier Case Style:Tssop, No. Of Pins:14Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Stmicroelectronics LMV324IYPT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5439 |
|
$0.4070 / $0.8650 | Buy Now |
|
DISTI #
497-10356-1-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
24049 In Stock |
|
$0.3670 / $0.8400 | Buy Now |
|
DISTI #
LMV324IYPT
|
Avnet Americas | Operational Amplifier, 4 Channels, 1 MHz, 0.45 V/?s, 2.7V to 6V, TSSOP, 14 Pins - Tape and Reel (Alt: LMV324IYPT) COO: Singapore RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Tape & Reel | 187500 |
|
$0.2890 | Buy Now |
|
DISTI #
511-LMV324IYPT
|
Mouser Electronics | Operational Amplifiers - Op Amps Low power rail-to-rail input/output op-amp RoHS: Compliant | 4853 |
|
$0.3590 / $0.8400 | Buy Now |
|
DISTI #
E02:0323_02197941
|
Arrow Electronics | Op Amp Quad Low Voltage Amplifier R-R I/O 6V Automotive AEC-Q100 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks | Europe - 2500 |
|
$0.3080 / $0.3258 | Buy Now |
|
DISTI #
V36:1790_16248646
|
Arrow Electronics | Op Amp Quad Low Voltage Amplifier R-R I/O 6V Automotive AEC-Q100 14-Pin TSSOP T/R COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Date Code: 2423 | Americas - 2500 |
|
$0.3052 / $0.3190 | Buy Now |
|
|
STMicroelectronics | Low power rail-to-rail input/output op amp COO: Singapore RoHS: Compliant Min Qty: 1 | 4853 |
|
$0.4100 / $0.8200 | Buy Now |
|
|
Future Electronics | LMV324 Series 6 V 1 MHz Low Power Rail to Rail Operational Amplifier - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel | 2500Reel |
|
$0.2900 / $0.3000 | Buy Now |
|
|
Future Electronics | LMV324 Series 6 V 1 MHz Low Power Rail to Rail Operational Amplifier - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Container: Cut Tape/Mini-Reel | 238Cut Tape/Mini-Reel |
|
$0.5600 / $0.8200 | Buy Now |
|
DISTI #
32325346
|
Verical | Op Amp Quad Low Voltage Amplifier R-R I/O 6V Automotive AEC-Q100 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 76 Package Multiple: 1 | Americas - 14980 |
|
$0.4750 / $0.8380 | Buy Now |
US Tariff Estimator: LMV324IYPT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMV324IYPT
LMV324IYPT CAD Models
-

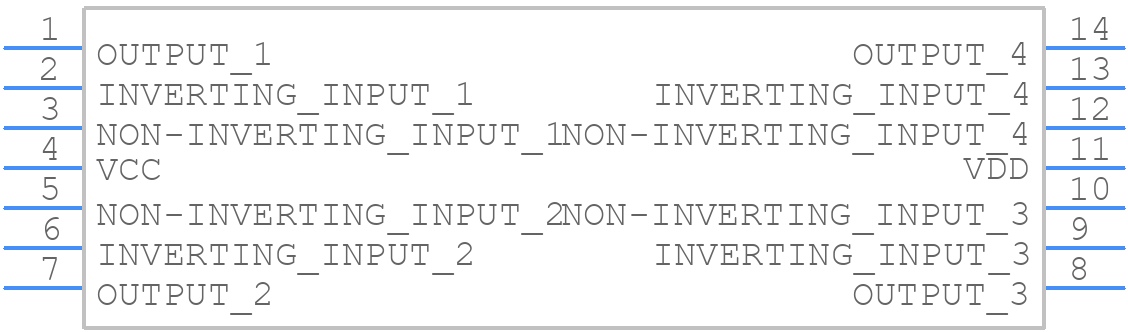

Part Symbol
-
