LMV324LIPT Information
LMV324LIPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LMV324LIPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2849867RL
|
Farnell | TSSOP14/A/LOW-POW,GENRAL-PURPOSE OP-AMP COO: Malaysia RoHS: Compliant Min Qty: 100 Lead time: 18 Weeks, 1 Days Container: Tape & Reel | 9324 |
|
$0.4009 / $0.5443 | Buy Now |
|
DISTI #
2849867
|
Farnell | TSSOP14/A/LOW-POW,GENRAL-PURPOSE OP-AMP COO: Malaysia RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Cut Tape | 9324 |
|
$0.4009 / $0.9573 | Buy Now |
|
DISTI #
497-13053-1-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2615 In Stock |
|
$0.3578 / $0.8200 | Buy Now |
|
DISTI #
LMV324LIPT
|
Avnet Americas | Operational Amplifier, 4 Channels, 1.3 MHz, 0.7 V/?s, 2.7V to 5.5V, TSSOP, 14 Pins - Tape and Reel (Alt: LMV324LIPT) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.2107 / $0.2240 | Buy Now |
|
DISTI #
511-LMV324LIPT
|
Mouser Electronics | Operational Amplifiers - Op Amps 2.7 to 5.5V 1.3Mhz 250uA 5V 7mV Op Amp RoHS: Compliant | 15578 |
|
$0.3680 / $0.8200 | Buy Now |
|
DISTI #
E02:0323_05956203
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R O/P 5.5V 14-Pin TSSOP T/R COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Date Code: 2443 | Europe - 345000 |
|
$0.1477 | Buy Now |
|
DISTI #
V36:1790_06548623
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R O/P 5.5V 14-Pin TSSOP T/R COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Date Code: 2506 | Americas - 30000 |
|
$0.2120 | Buy Now |
|
DISTI #
V72:2272_06548623
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R O/P 5.5V 14-Pin TSSOP T/R COO: Morocco RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2347 Container: Cut Strips | Americas - 417 |
|
$0.2141 / $0.4182 | Buy Now |
|
|
STMicroelectronics | Low-power, general-purpose operational amplifier COO: Taiwan RoHS: Compliant Min Qty: 1 | 15578 |
|
$0.4100 / $0.8000 | Buy Now |
|
|
Future Electronics | LMV324L Series 5.5 V 1.3 MHz General Purpose Operational Amplifier - TSSOP-14 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.2200 / $0.2300 | Buy Now |
US Tariff Estimator: LMV324LIPT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LMV324LIPT
LMV324LIPT CAD Models
-

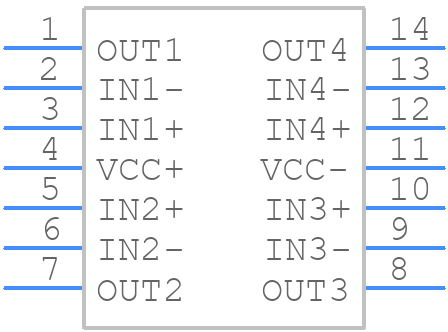

Part Symbol
-
