LMV324SIPWR Information

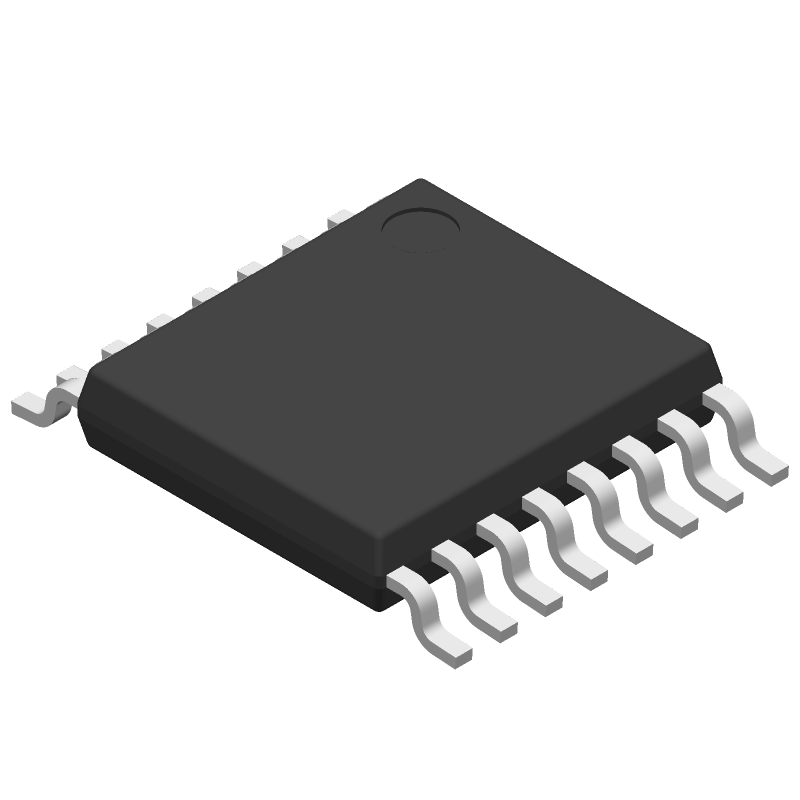

LMV324SIPWR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
US Tariff Estimator: LMV324SIPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for LMV324SIPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMV324SIPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The maximum power dissipation of the LMV324SIPWR is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature. However, this value can be derated based on the operating temperature and package thermal resistance.
While the LMV324SIPWR is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth. Additionally, the output stage is not designed for high-current drive, so it may not be suitable for driving heavy loads.
The input impedance of the LMV324SIPWR is not explicitly stated in the datasheet. However, based on the input bias current and input voltage range, the input impedance can be estimated to be around 10^6 ohms or higher.
Yes, the LMV324SIPWR can be used in a single-supply configuration. The device can operate from a single supply voltage as low as 2.7V, and the input common-mode range includes the negative rail. However, the output voltage swing will be limited to around 1V below the positive supply rail.
The LMV324SIPWR has built-in ESD protection on the input pins, which can withstand up to 2kV of electrostatic discharge according to the Human Body Model (HBM). However, it's still recommended to follow proper ESD handling procedures when handling the device.
