Part Details for LP5890RRFR by Texas Instruments
Results Overview of LP5890RRFR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LP5890RRFR Information
LP5890RRFR by Texas Instruments is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LP5890RRFR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LP5890RRFRDKR-ND
|
DigiKey | IC LED DRVR LIN NO 20MA 76VQFN Min Qty: 1 Container: Digi-Reel |
2931 Digi-Reel® |
|
$6.0970 / $9.9600 | Buy Now |
|
DISTI #
296-LP5890RRFRCT-ND
|
DigiKey | IC LED DRVR LIN NO 20MA 76VQFN Min Qty: 1 Container: Cut Tape |
2931 Cut Tape |
|
$6.0970 / $9.9600 | Buy Now |
|
DISTI #
296-LP5890RRFRTR-ND
|
DigiKey | IC LED DRVR LIN NO 20MA 76VQFN Min Qty: 2000 Container: Tape & Reel |
2931 Tape & Reel |
|
$5.5262 | Buy Now |
|
DISTI #
595-LP5890RRFR
|
Mouser Electronics | LED Lighting Driver ICs 48x16 LED matrix dri ver with 16-bits PW RoHS: Compliant | 7 |
|
$5.4200 / $9.4000 | Buy Now |
US Tariff Estimator: LP5890RRFR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LP5890RRFR CAD Models
-

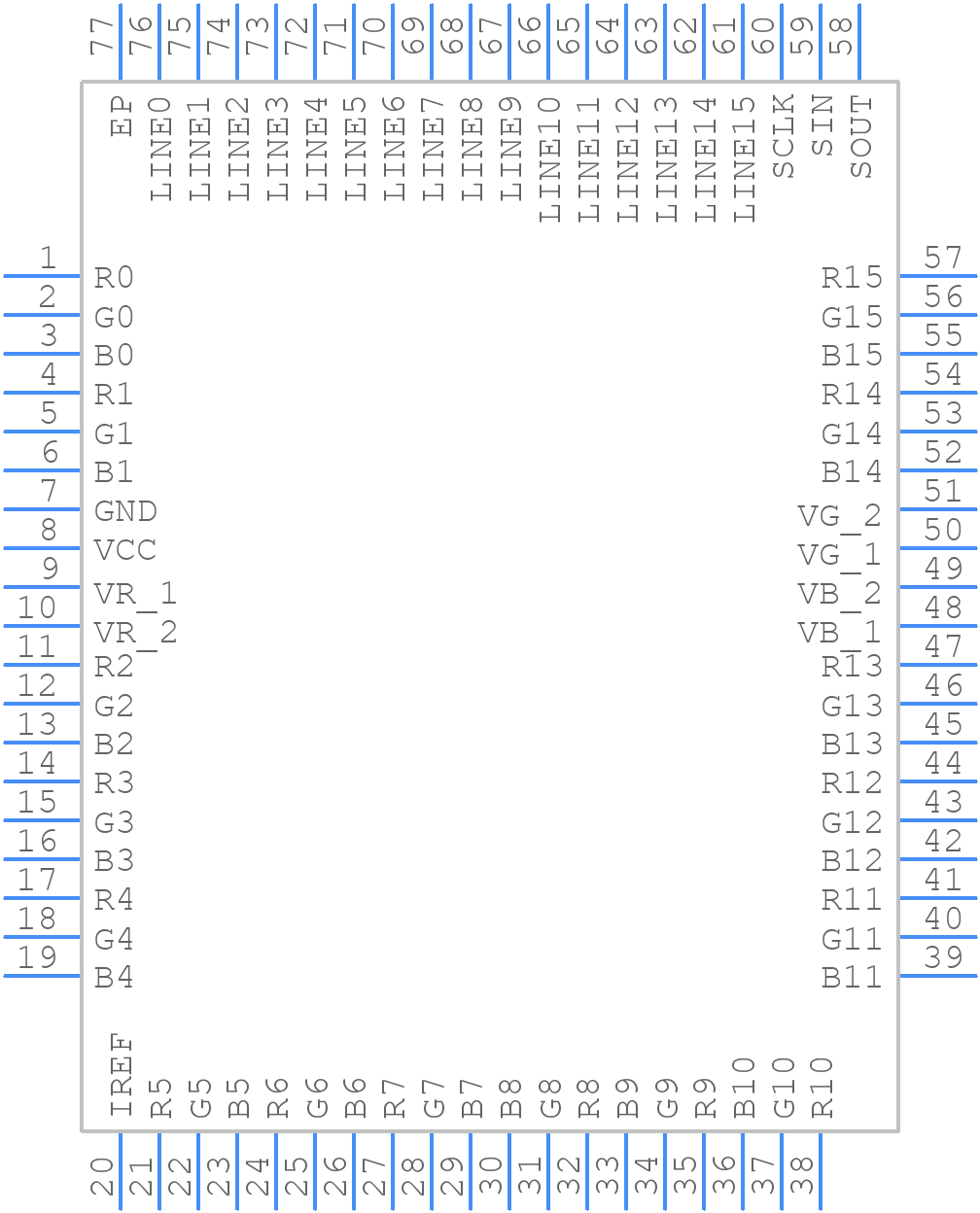

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LP5890RRFR Part Data Attributes
|
|
LP5890RRFR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LP5890RRFR
Texas Instruments
LED Driver, 768-Segment, PQCC76
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Vqfn-76 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Additional Feature | It Can Drive 16x16 Rgb Led(768) | |
| Data Input Mode | Serial | |
| Display Mode | Dot Matrix | |
| Input Characteristics | Standard | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | S-PQCC-N76 | |
| JESD-609 Code | e4 | |
| Length | 9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Multiplexed Display Capability | Yes | |
| Number of Channels | 48 | |
| Number of Functions | 1 | |
| Number of Segments | 768 | |
| Number of Terminals | 76 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Constant-Current | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC76,.35SQ,16 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 5 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 2.8 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 2.5 V | |
| Supply Voltage1-Nom | 2.8 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Quad | |
| Width | 9 Mm | |
| fmax-Min | 50 Mhz |
LP5890RRFR Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to help dissipate heat. Additionally, it's recommended to place thermal vias under the device to improve heat transfer.
-
To ensure stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
-
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device.
-
The LP5890RRFR has built-in overcurrent protection, but it's still recommended to add external protection components, such as a fuse or a current-limiting resistor, to prevent damage from excessive current or short-circuit conditions.
-
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close as possible to the device's input pins to minimize noise and ripple.
