LT1028CS8#TRPBF Information
LT1028CS8#TRPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1028CS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK6546
|
Newark | Op-Amp, Soic-8, 0 To 70Deg C Rohs Compliant: Yes |Analog Devices LT1028CS8#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1721 |
|
$8.0400 / $12.5200 | Buy Now |
|
DISTI #
LT1028CS8#TRPBFCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3624 In Stock |
|
$8.0375 / $15.2500 | Buy Now |
|
DISTI #
584-LT1028CS8#TRPBF
|
Mouser Electronics | Precision Amplifiers Ultra L N Prec Hi Speed Op Amps RoHS: Compliant | 1286 |
|
$8.0300 / $12.5200 | Buy Now |
|
DISTI #
V72:2272_06414431
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±22V 8-Pin SOIC N T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2339 Container: Cut Strips | Americas - 1635 |
|
$8.2460 / $12.4220 | Buy Now |
|
|
Analog Devices Inc | Ultra L N Prec Hi Speed Op Amp Min Qty: 1 Package Multiple: 2500 | 2965 |
|
$6.4300 / $15.2500 | Buy Now |
|
DISTI #
V72:2272_06414431
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±22V 8-Pin SOIC N T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2339 Container: Cut Strips | Americas - 1635 |
|
$8.2460 / $12.4220 | Buy Now |
|
DISTI #
V72:2272_06414431
|
Arrow Electronics | Op Amp Single High Speed Amplifier ±22V 8-Pin SOIC N T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2339 Container: Cut Strips | Americas - 1635 |
|
$8.2460 / $12.4220 | Buy Now |
|
DISTI #
LT1028CS8#TRPBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 2500 | 0 |
|
$8.3000 / $8.6300 | Buy Now |
|
|
Chip Stock | ROHS3CompliantEAR99LT1028MatteTin(Sn)opampbuffercircuit4.9mm0.24muA10muV75000kHz | 3020 |
|
RFQ |
US Tariff Estimator: LT1028CS8#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1028CS8#TRPBF
LT1028CS8#TRPBF CAD Models
-

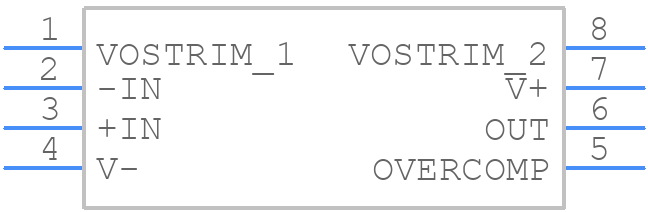

Part Symbol
-
