Part Details for LT1110CS8#PBF by Analog Devices Inc
Results Overview of LT1110CS8#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LT1110CS8#PBF Information
LT1110CS8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT1110CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4406845
|
Farnell | DC/DC CONV, BUCK, BOOST, 90KHZ, 70DEG C RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 50 |
|
$6.6955 / $14.0083 | Buy Now |
|
DISTI #
LT1110CS8#PBF-ND
|
DigiKey | IC REG BUCK BOOST ADJ 1.5A 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
205 In Stock |
|
$5.8750 / $12.0400 | Buy Now |
|
DISTI #
584-LT1110CS8#PBF
|
Mouser Electronics | Switching Voltage Regulators uP DC-DC Conv Adj & Fixed 5V, 12V RoHS: Compliant | 135 |
|
$5.8700 / $12.0400 | Buy Now |
|
|
Analog Devices Inc | uP DC-DC Conv Adj & Fixed 5V, Package Multiple: 100 | 441 |
|
$4.7000 / $12.0400 | Buy Now |
|
DISTI #
LT1110CS8#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 100 | 0 |
|
$6.0700 / $6.6600 | Buy Now |
US Tariff Estimator: LT1110CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1110CS8#PBF
LT1110CS8#PBF CAD Models
-

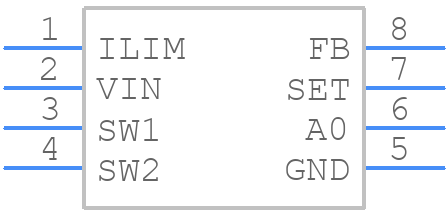

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1110CS8#PBF Part Data Attributes
|
|
LT1110CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1110CS8#PBF
Analog Devices Inc
Switching Regulator, Voltage-mode, 1.5A, 70kHz Switching Freq-Max, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Voltage-Mode | |
| Control Technique | Pulse Frequency Modulation | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 1.15 V | |
| Input Voltage-Nom | 1.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.5 A | |
| Output Voltage-Nom | 0.22 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Single | |
| Switching Frequency-Max | 70 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for LT1110CS8#PBF
This table gives cross-reference parts and alternative options found for LT1110CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1110CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1110CS8 | Analog Devices Inc | Check for Price | Switching Regulator, Voltage-mode, 90kHz Switching Freq-Max, BIPolar, PDSO8 | LT1110CS8#PBF vs LT1110CS8 |
LT1110CS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1110CS8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Also, avoid using long input traces and keep the device away from noise sources.
-
The maximum ambient temperature for reliable operation of the LT1110CS8 is 70°C. However, the device can operate up to 85°C with derated performance. It's essential to ensure proper heat sinking and airflow to maintain a safe operating temperature.
-
Yes, the LT1110CS8 can be used in switching regulator applications. However, it's essential to ensure that the device is properly bypassed, and the input and output capacitors are selected to handle the high-frequency switching noise.
-
To protect the LT1110CS8 from overvoltage and overcurrent conditions, use a voltage clamp or a transient voltage suppressor (TVS) at the input, and consider adding overcurrent protection using a fuse or a current-sensing resistor.
