LT1180AIN#PBF Information
LT1180AIN#PBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LT1180AIN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LT1180AIN#PBF-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 18DIP Min Qty: 1 Lead time: 13 Weeks Container: Tube |
42 In Stock |
|
$5.8000 / $11.9300 | Buy Now |
|
DISTI #
584-LT1180AIN#PBF
|
Mouser Electronics | RS-232 Interface IC Low Power 5V RS232 Dual Driver/Receiver with 0.1 F Capacitors RoHS: Compliant | 93 |
|
$5.8000 / $11.9300 | Buy Now |
|
|
Analog Devices Inc | L Pwr 5V RS232 2x Drvr/Rcv w/ Package Multiple: 20 | 2149 |
|
$4.6400 / $11.9300 | Buy Now |
|
|
Rochester Electronics | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BIPolar, PDIP18 RoHS: Compliant Status: Active Min Qty: 1 | 140 |
|
$4.8900 / $6.1100 | Buy Now |
|
DISTI #
LT1180AIN#PBF
|
Richardson RFPD | INTERFACE - MISCELLANEOUS RoHS: Compliant Min Qty: 100 | 0 |
|
$5.9900 / $6.5700 | Buy Now |
US Tariff Estimator: LT1180AIN#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1180AIN#PBF
LT1180AIN#PBF CAD Models
-

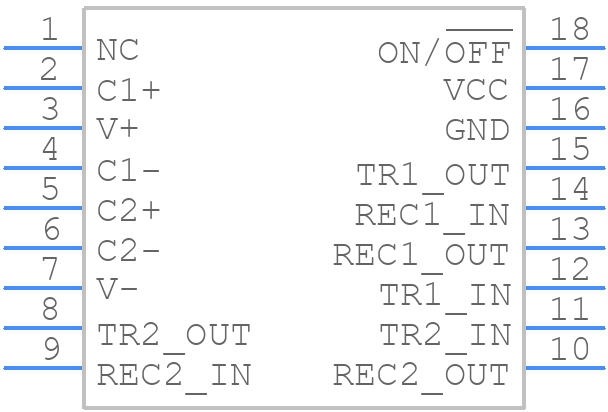

Part Symbol
-

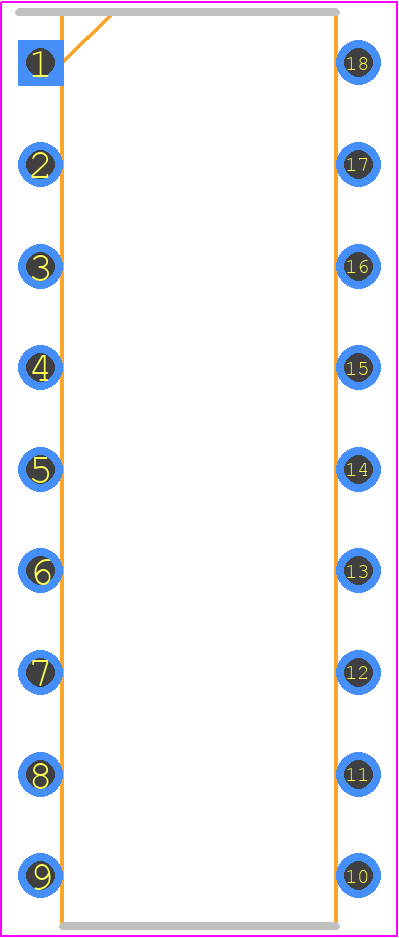

Footprint
-

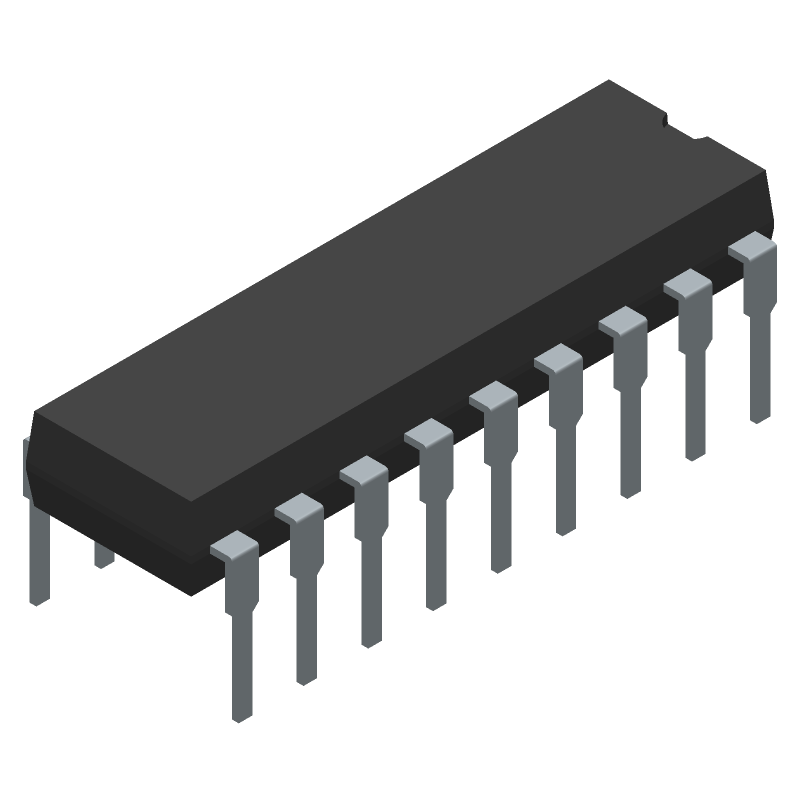

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1180AIN#PBF Part Data Attributes
|
|
LT1180AIN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1180AIN#PBF
Analog Devices Inc
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BIPolar, PDIP18
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dip, | |
| Pin Count | 18 | |
| Manufacturer Package Code | 05-08-1510 (N18) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | External Charge Pump | |
| Differential Output | No | |
| Driver Number of Bits | 2 | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232 | |
| JESD-30 Code | R-PDIP-T18 | |
| JESD-609 Code | e3 | |
| Length | 22.86 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 18 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 600 Ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 3.937 Mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1300 Ns | |
| Width | 7.62 Mm |
