Part Details for LT1215CS8#PBF by Analog Devices Inc
Results Overview of LT1215CS8#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1215CS8#PBF Information
LT1215CS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1215CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7911
|
Newark | Op-Amp, 23Mhz, -40 To 85Deg C, Soic-8, No. Of Channels:2Channels, Gain Bandwidth Product:23Mhz, Supply Voltage Range:2.5V To 36V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices LT1215CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$4.9200 / $10.5500 | Buy Now |
|
DISTI #
LT1215CS8#PBF-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
308 In Stock |
|
$4.9250 / $10.5500 | Buy Now |
|
DISTI #
584-LT1215CS8#PBF
|
Mouser Electronics | Precision Amplifiers 23MHz, 50V/ s, Single Supply Dual Precision Op Amps RoHS: Compliant | 355 |
|
$4.9200 / $10.5500 | Buy Now |
|
|
Analog Devices Inc | 23MHz, 50V/µs, 1x S 2x Prec Op Package Multiple: 100 | 4962 |
|
$3.9400 / $10.5500 | Buy Now |
|
DISTI #
LT1215CS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$5.0900 / $5.5800 | Buy Now |
|
|
Chip Stock | OperationalAmplifier,2Func,750uVOffset-Max,BIPolar,PDSO8 | 5733 |
|
RFQ |
US Tariff Estimator: LT1215CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1215CS8#PBF
LT1215CS8#PBF CAD Models
-

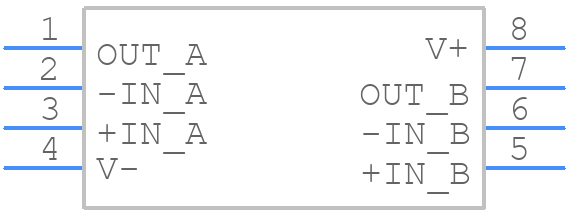

Part Symbol
-
Footprint
-

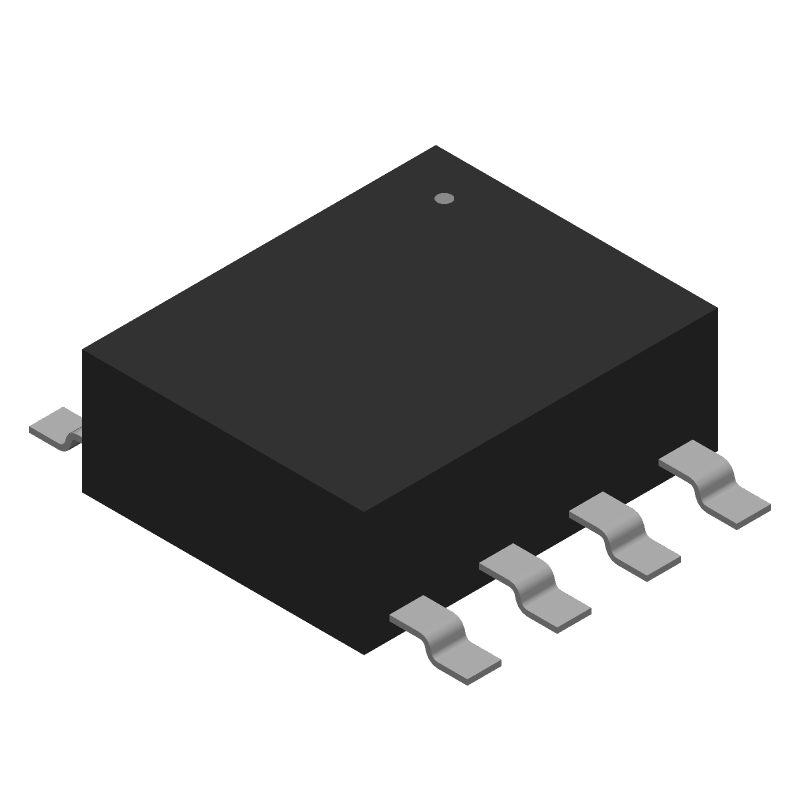

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1215CS8#PBF Part Data Attributes
|
|
LT1215CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1215CS8#PBF
Analog Devices Inc
Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 0.150 Inch, Lead Free, Plastic, Sop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.8 µA | |
| Bias Current-Max (IIB) @25C | 0.6 µA | |
| Common-mode Reject Ratio-Min | 90 Db | |
| Common-mode Reject Ratio-Nom | 108 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 750 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Min | 40 V/Us | |
| Slew Rate-Nom | 50 V/Us | |
| Supply Current-Max | 8 Ma | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 23000 | |
| Voltage Gain-Min | 1000000 | |
| Wideband | Yes | |
| Width | 3.9 Mm |
Alternate Parts for LT1215CS8#PBF
This table gives cross-reference parts and alternative options found for LT1215CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1215CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1215CS8#PBF | Linear Technology | Check for Price | LT1215 - 23MHz, 50V/µs, Single Supply Dual Precision Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1215CS8#PBF vs LT1215CS8#PBF |
| LT1215CS8 | Linear Technology | Check for Price | LT1215 - 23MHz, 50V/µs, Single Supply Dual Precision Op Amps; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT1215CS8#PBF vs LT1215CS8 |
| LT1215CS8 | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO8 | LT1215CS8#PBF vs LT1215CS8 |
| LT1215CS8#TR | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO8 | LT1215CS8#PBF vs LT1215CS8#TR |
| LT1215AMS8 | Linear Technology | Check for Price | IC DUAL OP-AMP, PDSO8, 0.150 INCH, PLASTIC, SO-8, Operational Amplifier | LT1215CS8#PBF vs LT1215AMS8 |
| LT1215AIS8 | Linear Technology | Check for Price | IC DUAL OP-AMP, PDSO8, 0.150 INCH, PLASTIC, SO-8, Operational Amplifier | LT1215CS8#PBF vs LT1215AIS8 |
| LT1215MS8 | Linear Technology | Check for Price | IC DUAL OP-AMP, PDSO8, 0.150 INCH, PLASTIC, SO-8, Operational Amplifier | LT1215CS8#PBF vs LT1215MS8 |
LT1215CS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1215CS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Additionally, avoid using long input traces and keep the input and output decoupling capacitors close to the device.
-
The maximum ambient temperature range for the LT1215CS8 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
Yes, the LT1215CS8 is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process and is screened to ensure compliance with aerospace and defense standards. However, it's recommended to consult with Analog Devices' sales team to ensure that the device meets the specific requirements of your application.
-
To troubleshoot issues with the LT1215CS8, start by checking the input and output voltages, as well as the device's operating frequency. Verify that the input and output capacitors are properly sized and that the PCB layout follows the recommended guidelines. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
