Part Details for LT1490AHMS8#PBF by Analog Devices Inc
Results Overview of LT1490AHMS8#PBF by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT1490AHMS8#PBF Information
LT1490AHMS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1490AHMS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8078
|
Newark | Op-Amp, 200Khz, -40 To 125Deg C, Msop-8, No. Of Channels:2Channels, Gain Bandwidth Product:200Khz, Supply Voltage Range:± 1.25V To ± 22V, Ic Case/Package:Msop, No. Of Pins:8Pins, Amplifier Type:General Purpose, Product Range:- Rohs Compliant: Yes |Analog Devices LT1490AHMS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 8 |
|
$4.0800 / $9.1900 | Buy Now |
|
|
Analog Devices Inc | 2x Over-The-Top uP R2R In & Ou Package Multiple: 50 | 1318 |
|
$3.2700 / $9.1900 | Buy Now |
|
DISTI #
LT1490AHMS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 150 | 0 |
|
$4.2200 / $4.6300 | Buy Now |
US Tariff Estimator: LT1490AHMS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1490AHMS8#PBF
LT1490AHMS8#PBF CAD Models
-

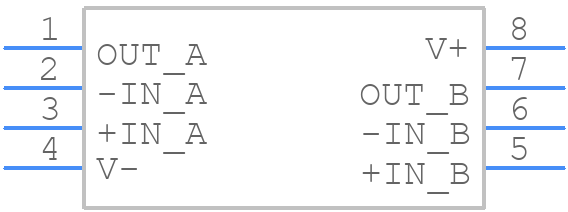

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT1490AHMS8#PBF Part Data Attributes
|
|
LT1490AHMS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT1490AHMS8#PBF
Analog Devices Inc
Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lead Free, Plastic, Msop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.02 µA | |
| Common-mode Reject Ratio-Nom | 72 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 3200 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Min | 0.02 V/Us | |
| Slew Rate-Nom | 0.07 V/Us | |
| Supply Current-Max | 0.055 Ma | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 200 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 3 Mm |
Alternate Parts for LT1490AHMS8#PBF
This table gives cross-reference parts and alternative options found for LT1490AHMS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1490AHMS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1490AIMS8#PBF | Analog Devices Inc | $3.4838 | Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps | LT1490AHMS8#PBF vs LT1490AIMS8#PBF |
| LT1490AHMS8#PBF | Linear Technology | Check for Price | LT1490A - Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps; Package: MSOP; Pins: 8; Temperature Range: -40°C to 125°C | LT1490AHMS8#PBF vs LT1490AHMS8#PBF |
| LT1490AHMS8 | Linear Technology | Check for Price | LT1490A - Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps; Package: MSOP; Pins: 8; Temperature Range: -40°C to 125°C | LT1490AHMS8#PBF vs LT1490AHMS8 |
| LT1490AHMS8 | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 3200uV Offset-Max, BIPolar, PDSO8 | LT1490AHMS8#PBF vs LT1490AHMS8 |
| LT1490ACMS8#TR | Linear Technology | Check for Price | LT1490A - Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LT1490AHMS8#PBF vs LT1490ACMS8#TR |
| LT1490AIMS8#TR | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 1500uV Offset-Max, BIPolar, PDSO8 | LT1490AHMS8#PBF vs LT1490AIMS8#TR |
| LT1490AHMS8#TR | Analog Devices Inc | Check for Price | Operational Amplifier, 2 Func, 3000uV Offset-Max, BIPolar, PDSO8 | LT1490AHMS8#PBF vs LT1490AHMS8#TR |
| LT1490ACMS8#PBF | Linear Technology | Check for Price | LT1490A - Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LT1490AHMS8#PBF vs LT1490ACMS8#PBF |
| LT1490AHMS8#TRPBF | Analog Devices Inc | Check for Price | Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps | LT1490AHMS8#PBF vs LT1490AHMS8#TRPBF |
| LT1490AIMS8#PBF | Linear Technology | Check for Price | LT1490A - Dual Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LT1490AHMS8#PBF vs LT1490AIMS8#PBF |
LT1490AHMS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT1490AHMS8#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
-
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the output and ground to improve stability.
-
The LT1490AHMS8#PBF can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
-
The LT1490AHMS8#PBF is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating. Additionally, it's recommended to check the device's thermal performance and adjust the operating conditions accordingly.
-
To troubleshoot issues with the LT1490AHMS8#PBF, start by checking the input and output voltages, as well as the device's operating conditions. Verify that the compensation network is properly configured and that the output capacitor is properly sized. Use an oscilloscope to check for oscillations or ringing on the output. If issues persist, consult the datasheet and application notes for guidance.
