LT1723CS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT1723CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85AK2473
|
Newark | Op-Amp, 200Mhz, 0 To 70Deg C, Nsoic-8 Rohs Compliant: Yes |Analog Devices LT1723CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 290 |
|
$2.1500 / $5.6300 | Buy Now |
|
DISTI #
161-LT1723CS8#PBF-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
168 In Stock |
|
$2.1936 / $4.0300 | Buy Now |
|
DISTI #
584-LT1723CS8#PBF
|
Mouser Electronics | High Speed Operational Amplifiers 2x 200MHz L N Prec Op Amps RoHS: Compliant | 116 |
|
$2.0100 / $5.4700 | Buy Now |
|
|
Analog Devices Inc | 2x 200MHz L N Prec Op Amps Package Multiple: 100 | 6134 |
|
$2.0125 / $5.4700 | Buy Now |
|
DISTI #
35211895
|
Verical | Op Amp Dual High Speed Amplifier ±6.3V/12.6V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 300 Package Multiple: 300 | Americas - 6000 |
|
$1.9913 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 2 Func, 700uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 128 |
|
$1.7000 / $2.1200 | Buy Now |
|
DISTI #
35211895
|
Verical | Op Amp Dual High Speed Amplifier ±6.3V/12.6V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 300 Package Multiple: 300 | Americas - 6000 |
|
$1.9913 | Buy Now |
|
DISTI #
LT1723CS8PBF
|
TME | IC: operational amplifier, 200MHz, Ch: 2, ±2.5÷5VDC,5÷10VDC, SO8 Min Qty: 1 | 0 |
|
$2.1900 / $3.0700 | RFQ |
|
DISTI #
LT1723CS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 300 | 0 |
|
$2.0800 / $2.2800 | Buy Now |
|
DISTI #
35211895
|
Verical | Op Amp Dual High Speed Amplifier ±6.3V/12.6V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 300 Package Multiple: 300 | Americas - 6000 |
|
$1.9913 | Buy Now |
US Tariff Estimator: LT1723CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT1723CS8#PBF
LT1723CS8#PBF CAD Models
-

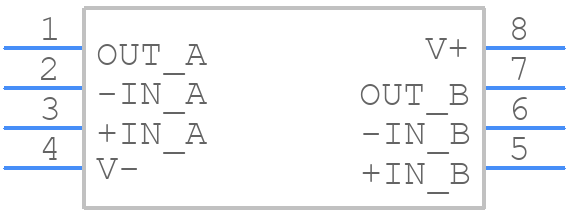

Part Symbol
-
