Part Details for LT3514EFE#PBF by Analog Devices Inc
Results Overview of LT3514EFE#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LT3514EFE#PBF Information
LT3514EFE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3514EFE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8717
|
Newark | Dc/Dc Conv, Buck, 2.1Mhz, 125Deg C, Output Type:Adjustable, No. Of Outputs:3Outputs, Topology:Buck (Step Down), Input Voltage Min:3.2V, Input Voltage Max:36V, Max Output Current:1A, 2A, Ic Case/Package:Tssop-Ep, No. Of Pins:24Pins Rohs Compliant: Yes |Analog Devices LT3514EFE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 26 |
|
$5.7700 / $11.9700 | Buy Now |
|
DISTI #
LT3514EFE#PBF-ND
|
DigiKey | IC REG BCK ADJ 2A/TRPL 24TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
575 In Stock |
|
$6.1276 / $10.1400 | Buy Now |
|
DISTI #
584-LT3514EFE#PBF
|
Mouser Electronics | Switching Voltage Regulators 3x Buck Sw Reg w/ 100 Duty Cycle Operat RoHS: Compliant | 788 |
|
$5.6000 / $11.6200 | Buy Now |
|
|
Analog Devices Inc | 3x Buck Sw Reg w/ 100 Duty Cyc Package Multiple: 62 | 115 |
|
$4.4800 / $11.6200 | Buy Now |
|
DISTI #
LT3514EFE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 62 | 0 |
|
$5.7800 / $6.7200 | Buy Now |
US Tariff Estimator: LT3514EFE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT3514EFE#PBF
LT3514EFE#PBF CAD Models
-

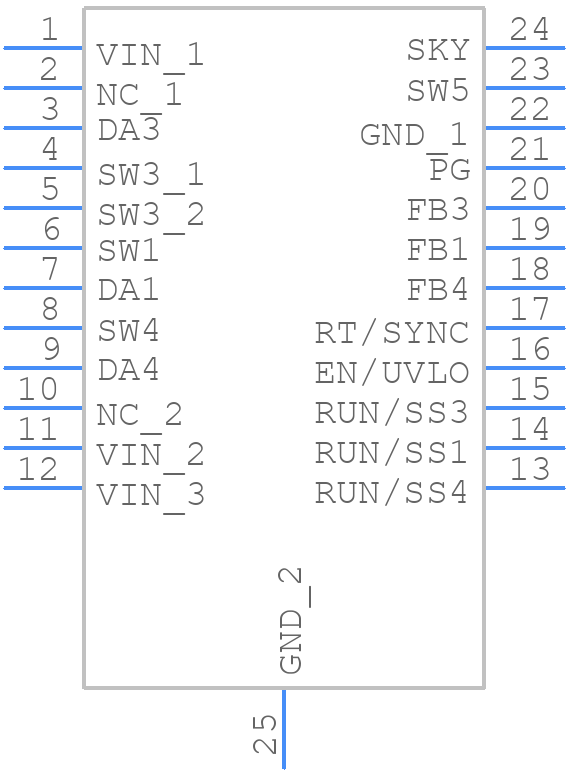

Part Symbol
-

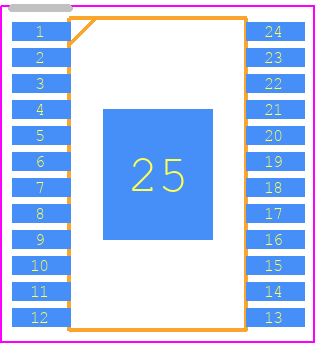

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT3514EFE#PBF Part Data Attributes
|
|
LT3514EFE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3514EFE#PBF
Analog Devices Inc
Switching Regulator, 4.2A, 2400kHz Switching Freq-Max, BIPolar, PDSO24
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1771 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switching Regulator | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3.2 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e3 | |
| Length | 7.8 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 4.2 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 2400 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
LT3514EFE#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT3514EFE is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance.
-
To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet to minimize noise and oscillations.
-
The maximum output current that the LT3514EFE can deliver is 1.5A, but it's recommended to operate within the specified output current range of 0.1A to 1.2A for optimal performance and reliability.
-
The output voltage of the LT3514EFE can be adjusted by using the feedback resistors (R1 and R2) and the output voltage setting pin (VOUT). The output voltage can be calculated using the formula: VOUT = 1.22V x (1 + R2/R1).
-
The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to shut down the regulator when not in use.
