LT3572EUF#WPBF Information
LT3572EUF#WPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3572EUF#WPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | 2x Full-Bridge Piezo Drvr w/ 9 Package Multiple: 91 | 4732 |
|
Buy Now |
US Tariff Estimator: LT3572EUF#WPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT3572EUF#WPBF
LT3572EUF#WPBF CAD Models
-

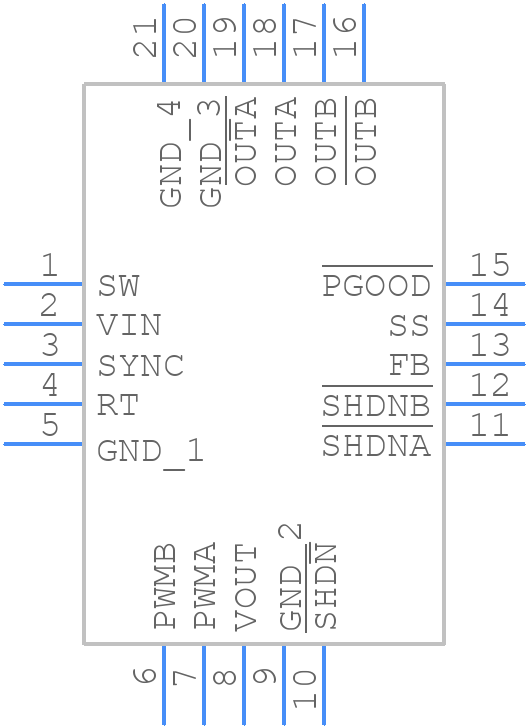

Part Symbol
-
