LT3800EFE#PBF Information
LT3800EFE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3800EFE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5688
|
Newark | Dc/Dc Ctrl, Sync Buck, 200Khz, 125Deg C, Control Mode:Current Mode Control, Supply Voltage Min:4V, Supply Voltage Max:60V, No. Of Outputs:1Outputs, Duty Cycle (%):-, Ic Case/Package:Tssop-Ep, No. Of Pins:16Pins, Product Range:- Rohs Compliant: Yes |Analog Devices LT3800EFE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 276 |
|
$5.1800 / $10.9700 | Buy Now |
|
DISTI #
LT3800EFE#PBF-ND
|
DigiKey | IC REG CTRLR BUCK 16TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
1683 In Stock |
|
$5.1875 / $10.9700 | Buy Now |
|
DISTI #
584-LT3800EFE#PBF
|
Mouser Electronics | Switching Voltage Regulators Hi-V Sync C Mode Buck Cntr RoHS: Compliant | 247 |
|
$5.1800 / $10.9700 | Buy Now |
|
|
Analog Devices Inc | Hi-V Sync C Mode Buck Cntr Package Multiple: 95 | 340 |
|
$4.1500 / $10.9700 | Buy Now |
|
DISTI #
LT3800EFEPBF
|
TME | PMIC, DC/DC converter, Uin: 4÷60VDC, Uout: 1.23÷36VDC, 15A, TSSOP16 Min Qty: 1 | 0 |
|
$5.8000 / $7.8500 | RFQ |
|
DISTI #
LT3800EFE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 95 | 0 |
|
$5.3600 / $6.2200 | Buy Now |
|
DISTI #
SMC-LT3800EFE#PBF
|
Sensible Micro Corporation | Hi-V Sync C Mode Buck Cntr RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC | 35 |
|
RFQ | |
|
|
Chip Stock | ConvDC-DC4Vto60VSynchronousStepDownSingle-Out36V15AAutomotive16-PinTSSOPEP | 37430 |
|
RFQ |
US Tariff Estimator: LT3800EFE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT3800EFE#PBF
LT3800EFE#PBF CAD Models
-

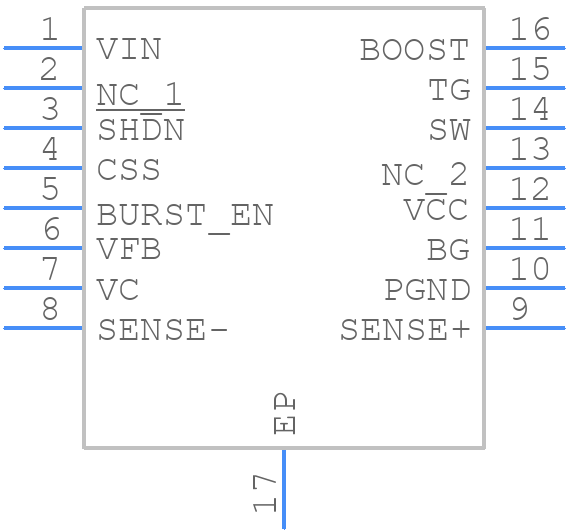

Part Symbol
-

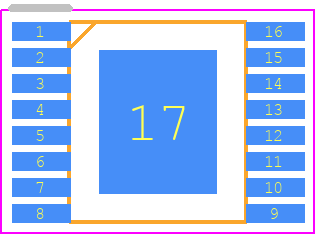

Footprint
-

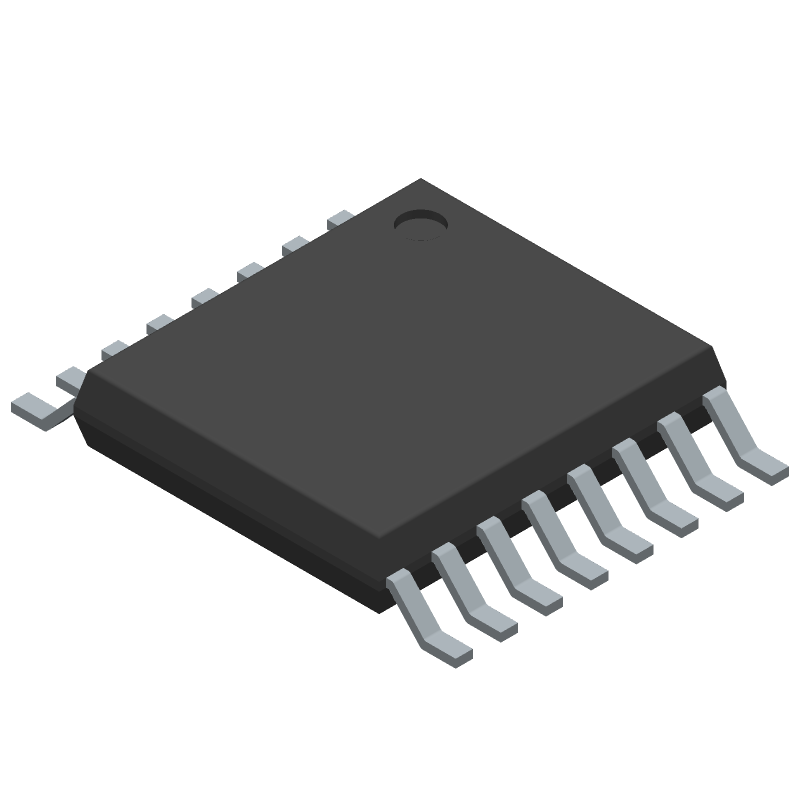

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT3800EFE#PBF Part Data Attributes
|
|
LT3800EFE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3800EFE#PBF
Analog Devices Inc
Switching Controller, Current-mode, 220kHz Switching Freq-Max, BIPolar, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Htssop, | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1663 (BC) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Output Voltages Up To 36v | |
| Analog IC - Other Type | Switching Controller | |
| Control Mode | Current-Mode | |
| Control Technique | Burst Mode | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 20 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 36 V | |
| Output Voltage-Nom | 8 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Push-Pull | |
| Switching Frequency-Max | 220 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Other | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
