LT3800EFE#TRPBF Information
LT3800EFE#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3800EFE#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5689
|
Newark | Dc/Dc Ctrl, Sync Buck, 200Khz, 125Deg C, Control Mode:Current Mode Control, Supply Voltage Min:4V, Supply Voltage Max:60V, No. Of Outputs:1Outputs, Duty Cycle (%):-, Ic Case/Package:Tssop-Ep, No. Of Pins:16Pins, Product Range:- Rohs Compliant: Yes |Analog Devices LT3800EFE#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4096 |
|
$5.1900 / $10.9700 | Buy Now |
|
|
Analog Devices Inc | Hi-V Sync C Mode Buck Cntr Min Qty: 1 Package Multiple: 2500 | 731 |
|
$4.1500 / $10.9700 | Buy Now |
|
DISTI #
LT3800EFE#TRPBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$5.3600 / $5.5700 | Buy Now |
|
|
Chip Stock | LT3800BuckTape&, Reel(TR)e3DCtoDCswitchingcontroller5mm36V200kHz-40C~125CTJ | 37400 |
|
RFQ |
US Tariff Estimator: LT3800EFE#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT3800EFE#TRPBF
LT3800EFE#TRPBF CAD Models
-

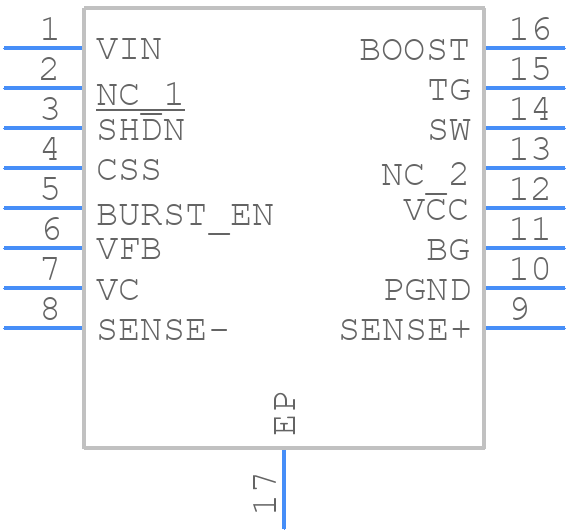

Part Symbol
-

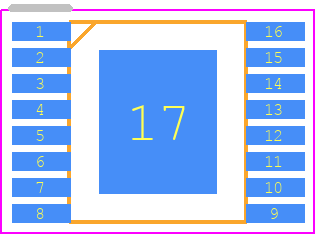

Footprint
-

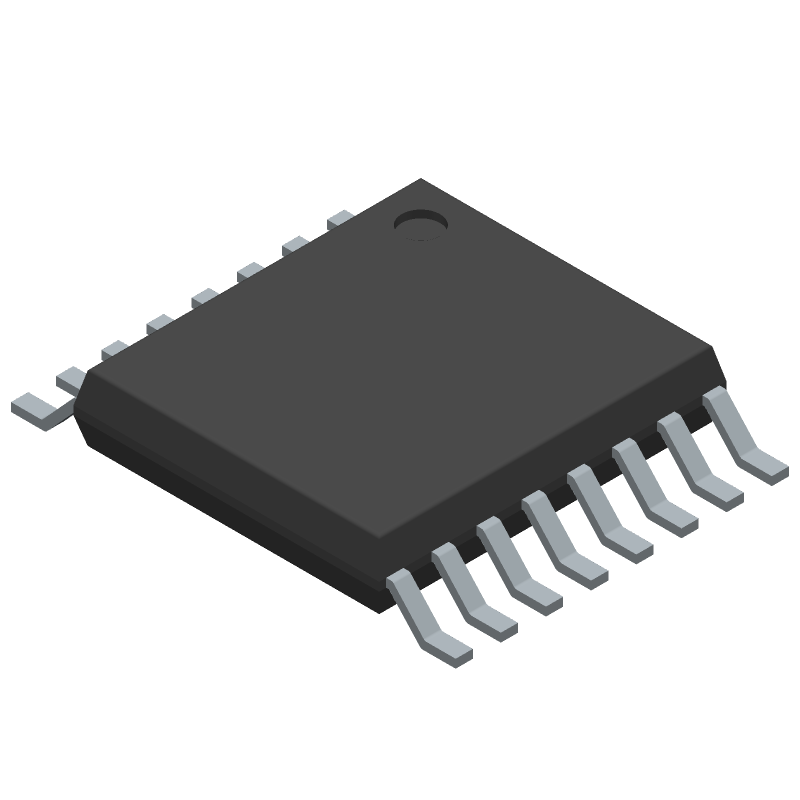

3D Model
