LT6010ACS8#PBF Information
LT6010ACS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6010ACS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LT6010ACS8#PBF-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
150 In Stock |
|
$3.2568 / $5.7900 | Buy Now |
|
DISTI #
584-LT6010ACS8#PBF
|
Mouser Electronics | Precision Amplifiers 135 A, 14nV/rtHz, R2R Out Prec Op Amp w RoHS: Compliant | 3131 |
|
$3.0100 / $7.3400 | Buy Now |
|
|
Analog Devices Inc | 135µA, 14nV/rtHz, R2R Out Prec Package Multiple: 100 | 2230 |
|
$2.4100 / $7.3400 | Buy Now |
|
DISTI #
LT6010ACS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 200 | 0 |
|
$3.1100 / $3.4200 | Buy Now |
US Tariff Estimator: LT6010ACS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT6010ACS8#PBF
LT6010ACS8#PBF CAD Models
-

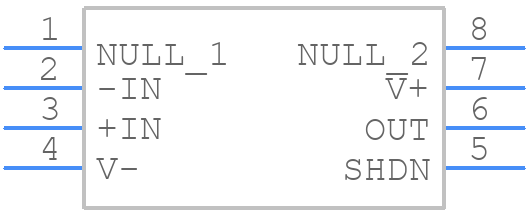

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT6010ACS8#PBF Part Data Attributes
|
|
LT6010ACS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6010ACS8#PBF
Analog Devices Inc
Operational Amplifier, 1 Func, 80uV Offset-Max, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 0.150 Inch, Plastic, So-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00015 µA | |
| Common-mode Reject Ratio-Min | 115 Db | |
| Common-mode Reject Ratio-Nom | 135 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 80 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 Mm | |
| Slew Rate-Min | 0.08 V/Us | |
| Slew Rate-Nom | 0.11 V/Us | |
| Supply Current-Max | 0.38 Ma | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 350 | |
| Voltage Gain-Min | 600000 | |
| Wideband | No | |
| Width | 3.9 Mm |
Alternate Parts for LT6010ACS8#PBF
This table gives cross-reference parts and alternative options found for LT6010ACS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6010ACS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OPA317ID | Texas Instruments | $0.8613 | Operational Amplifier, 1 Func, 90uV Offset-Max, CMOS, PDSO8 | LT6010ACS8#PBF vs OPA317ID |
| LT6010CS8#PBF | Analog Devices Inc | $2.5508 | Operational Amplifier, 1 Func, 120uV Offset-Max, BIPolar, PDSO8 | LT6010ACS8#PBF vs LT6010CS8#PBF |
| LT6010IS8#PBF | Analog Devices Inc | $2.9988 | Operational Amplifier, 1 Func, 160uV Offset-Max, BIPolar, PDSO8 | LT6010ACS8#PBF vs LT6010IS8#PBF |
| LT6010ACS8#TRPBF | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 80uV Offset-Max, BIPolar, PDSO8 | LT6010ACS8#PBF vs LT6010ACS8#TRPBF |
| LT6010AIS8#TRPBF | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 110uV Offset-Max, BIPolar, PDSO8 | LT6010ACS8#PBF vs LT6010AIS8#TRPBF |
