LT6203HMS8#PBF Information
LT6203HMS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6203HMS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4021023
|
Farnell | OP-AMP, 100MHZ, -40 TO 125DEG C, MSOP-8 COO: Malaysia RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 66 |
|
$7.0262 / $14.1061 | Buy Now |
|
DISTI #
505-LT6203HMS8#PBF-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
200 In Stock |
|
$6.5257 / $10.7400 | Buy Now |
|
DISTI #
584-LT6203HMS8#PBF
|
Mouser Electronics | High Speed Operational Amplifiers 2x 100MHz, R2R In & Out, Ultralow 1.9nVr RoHS: Compliant | 694 |
|
$5.9700 / $12.1800 | Buy Now |
|
DISTI #
V36:1790_06430999
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R I/O ±6.3V/12.6V 8-Pin MSOP Tube COO: Thailand RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2341 | Americas - 28 |
|
$5.8350 / $6.2220 | Buy Now |
|
|
Analog Devices Inc | 2x 100MHz, R2R In & Out, Ultra Package Multiple: 50 | 2390 |
|
$4.7700 / $12.1800 | Buy Now |
|
DISTI #
V36:1790_06430999
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R I/O ±6.3V/12.6V 8-Pin MSOP Tube COO: Thailand RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2341 | Americas - 28 |
|
$5.8350 / $6.2220 | Buy Now |
|
DISTI #
V36:1790_06430999
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R I/O ±6.3V/12.6V 8-Pin MSOP Tube COO: Thailand RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2341 | Americas - 28 |
|
$5.8350 / $6.2220 | Buy Now |
|
DISTI #
LT6203HMS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$6.1600 / $6.7600 | Buy Now |
|
|
Chip Stock | OpAmpDualLowNoiseAmplifierR-RI/O±6.3V/12.6VAutomotive8-PinMSOPTube | 295 |
|
RFQ |
US Tariff Estimator: LT6203HMS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT6203HMS8#PBF
LT6203HMS8#PBF CAD Models
-

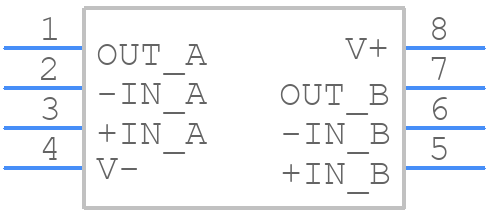

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT6203HMS8#PBF Part Data Attributes
|
|
LT6203HMS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6203HMS8#PBF
Analog Devices Inc
Operational Amplifier, 2 Func, 9100uV Offset-Max, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Msop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 4 µA | |
| Bias Current-Max (IIB) @25C | 3 µA | |
| Common-mode Reject Ratio-Min | 79 Db | |
| Common-mode Reject Ratio-Nom | 95 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 9100 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Min | 13 V/Us | |
| Slew Rate-Nom | 18 V/Us | |
| Supply Current-Max | 10.6 Ma | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 90000 | |
| Voltage Gain-Min | 5700 | |
| Wideband | Yes | |
| Width | 3 Mm |
