LT6230CS6-10#TRMPBF Information
LT6230CS6-10#TRMPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6230CS6-10#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK9003
|
Newark | Op-Amp, 1.45Ghz, 0 To 70Deg C, Tsot-23-6, No. Of Channels:1Channels, Gain Bandwidth Product:1.45Ghz, Supply Voltage Range:3V To 12.6V, Ic Case/Package:Tsot-23, No. Of Pins:6Pins, Amplifier Type:General Purpose, Product Range:- Rohs Compliant: Yes |Analog Devices LT6230CS6-10#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 155 |
|
$2.4600 / $5.8800 | Buy Now |
|
DISTI #
505-LT6230CS6-10#TRMPBFCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT TSOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2567 In Stock |
|
$2.4625 / $6.3300 | Buy Now |
|
DISTI #
584-6230CS6-10TRMPBF
|
Mouser Electronics | Precision Amplifiers 215MHz, R2R Out, 1.1nV/rtHz, 3.5mA Op Am RoHS: Compliant | 4086 |
|
$2.4600 / $5.8800 | Buy Now |
|
DISTI #
V72:2272_06431127
|
Arrow Electronics | Op Amp Single Low Noise Amplifier R-R O/P ±6.3V/12.6V 6-Pin TSOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2248 Container: Cut Strips | Americas - 6 |
|
$0.9712 / $2.5338 | Buy Now |
|
|
Analog Devices Inc | 215MHz, R2R Out, 1.1nV/rtHz, 3 Package Multiple: 500 | 1516 |
|
$2.4625 / $6.3300 | Buy Now |
|
DISTI #
V72:2272_06431127
|
Arrow Electronics | Op Amp Single Low Noise Amplifier R-R O/P ±6.3V/12.6V 6-Pin TSOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2248 Container: Cut Strips | Americas - 6 |
|
$0.9712 / $2.5338 | Buy Now |
|
DISTI #
V72:2272_06431127
|
Arrow Electronics | Op Amp Single Low Noise Amplifier R-R O/P ±6.3V/12.6V 6-Pin TSOT-23 T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2248 Container: Cut Strips | Americas - 6 |
|
$0.9712 / $2.5338 | Buy Now |
|
DISTI #
LT6230CS610TRMP
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 500 | 0 |
|
$2.5400 / $2.7100 | Buy Now |
|
|
Chip Stock | ROHS3CompliantEAR99LT6230MatteTin(Sn)opampbuffercircuit2.9mm5muA500muV1450000kHz | 5500 |
|
RFQ |
US Tariff Estimator: LT6230CS6-10#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT6230CS6-10#TRMPBF
LT6230CS6-10#TRMPBF CAD Models
-

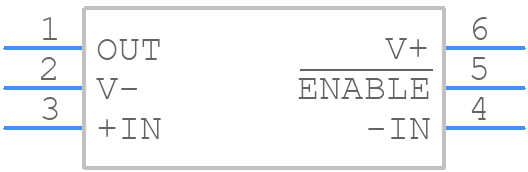

Part Symbol
-
Footprint
-

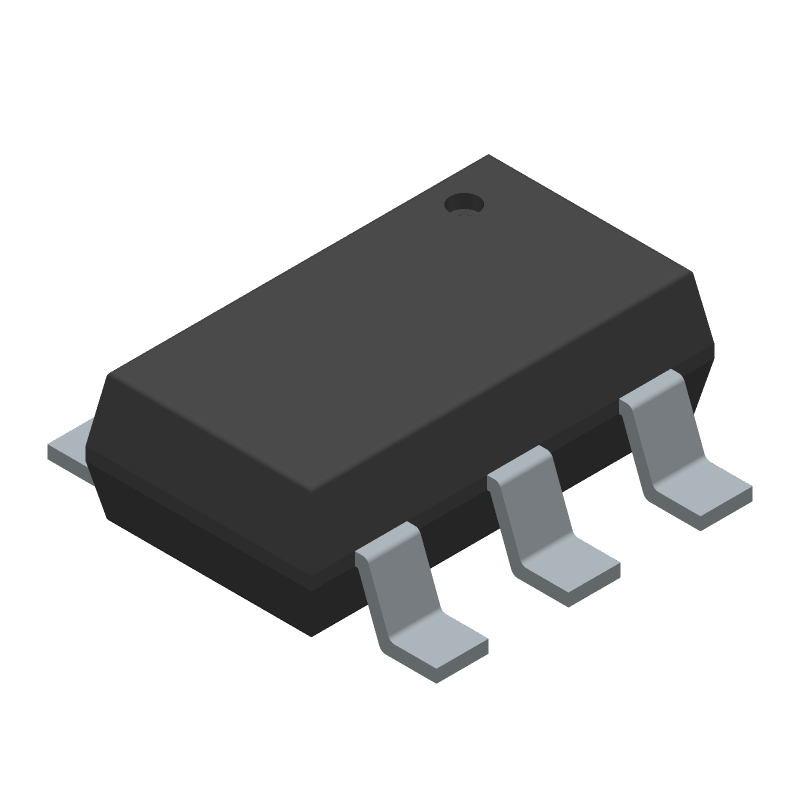

3D Model
