LT6700CS6-1#TRMPBF Information
LT6700CS6-1#TRMPBF by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6700CS6-1#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK9045
|
Newark | Comparator, Tsot-23-6, 0 To 70Deg C, Comparator Type:Micropower, Low Voltage, No. Of Channels:2Channels, Response Time/Propogation Delay:18Μs, Supply Voltage Range:1.4V To 18V, Ic Case/Package:Tsot-23, No. Of Pins:6Pins Rohs Compliant: Yes |Analog Devices LT6700CS6-1#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 120 |
|
$2.3700 / $5.7400 | Buy Now |
|
DISTI #
505-LT6700CS6-1#TRMPBFCT-ND
|
DigiKey | IC COMPARATR 2 W/VOLT REF TSOT23 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
46263 In Stock |
|
$2.2258 / $4.1200 | Buy Now |
|
DISTI #
584-6700CS6-1TRMPBF
|
Mouser Electronics | Analog Comparators uP, L V, 2x Comp w/ 400mV Ref RoHS: Compliant | 12019 |
|
$2.0600 / $5.5700 | Buy Now |
|
|
Analog Devices Inc | uP, L V, 2x Comp w/ 400mV Ref Package Multiple: 500 | 9254 |
|
$2.0625 / $5.5700 | Buy Now |
|
|
Quest Components | DUAL COMPARATOR, 29000NS RESPONSE TIME, PDSO6 | 2227 |
|
$1.4385 / $4.1100 | Buy Now |
|
DISTI #
LT6700CS6-1TRMPBF
|
TME | IC: comparator, low-power, Cmp: 2, 18us, 1.4÷18V, SMT, TSOT23-6 Min Qty: 1 | 0 |
|
$4.3900 / $5.3300 | RFQ |
|
DISTI #
LT6700CS6-1TRMP
|
Richardson RFPD | COMPARATOR RoHS: Compliant Min Qty: 500 | 0 |
|
$2.1300 / $2.2700 | Buy Now |
US Tariff Estimator: LT6700CS6-1#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT6700CS6-1#TRMPBF
LT6700CS6-1#TRMPBF CAD Models
-

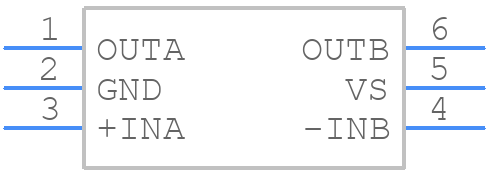

Part Symbol
-
Footprint
-

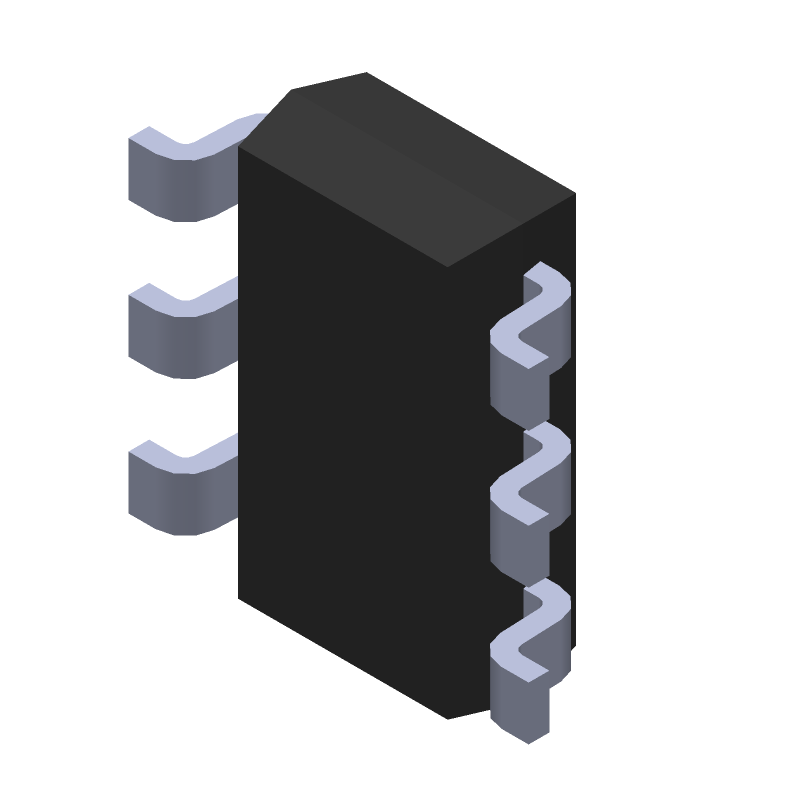

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT6700CS6-1#TRMPBF Part Data Attributes
|
|
LT6700CS6-1#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6700CS6-1#TRMPBF
Analog Devices Inc
Comparator, 2 Func, 29000ns Response Time, BIPolar, PDSO6
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1636 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Amplifier Type | Comparator | |
| Average Bias Current-Max (IIB) | 0.015 µA | |
| Bias Current-Max (IIB) @25C | 0.01 µA | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Type | Open-Collector | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Very Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 29000 Ns | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 0.016 Ma | |
| Supply Voltage Limit-Max | 18.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 Mm |
Alternate Parts for LT6700CS6-1#TRMPBF
This table gives cross-reference parts and alternative options found for LT6700CS6-1#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6700CS6-1#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT6700MPS6-1#PBF | Analog Devices Inc | Check for Price | Comparator, 2 Func, 29000ns Response Time, BIPolar, PDSO6 | LT6700CS6-1#TRMPBF vs LT6700MPS6-1#PBF |
